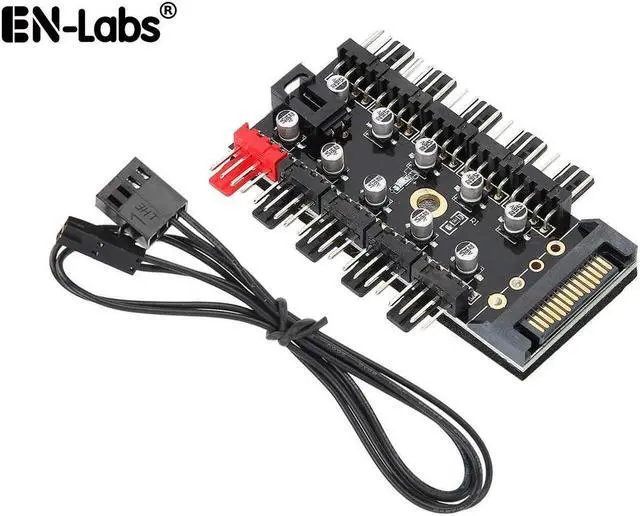

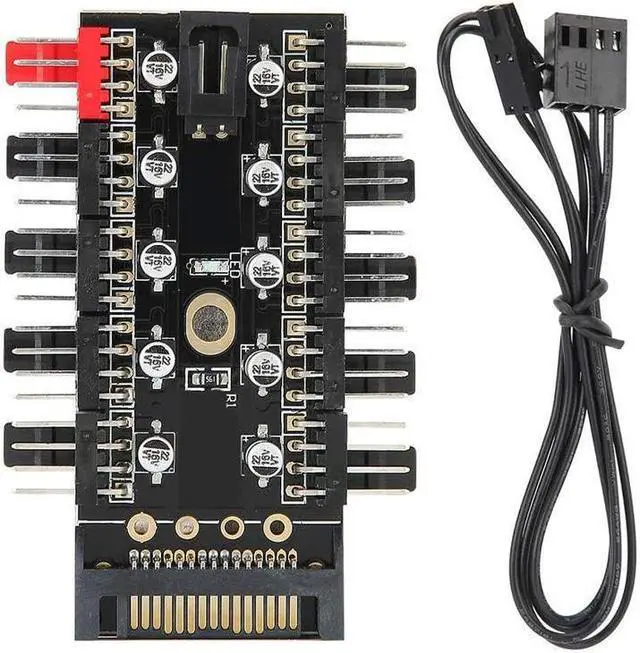

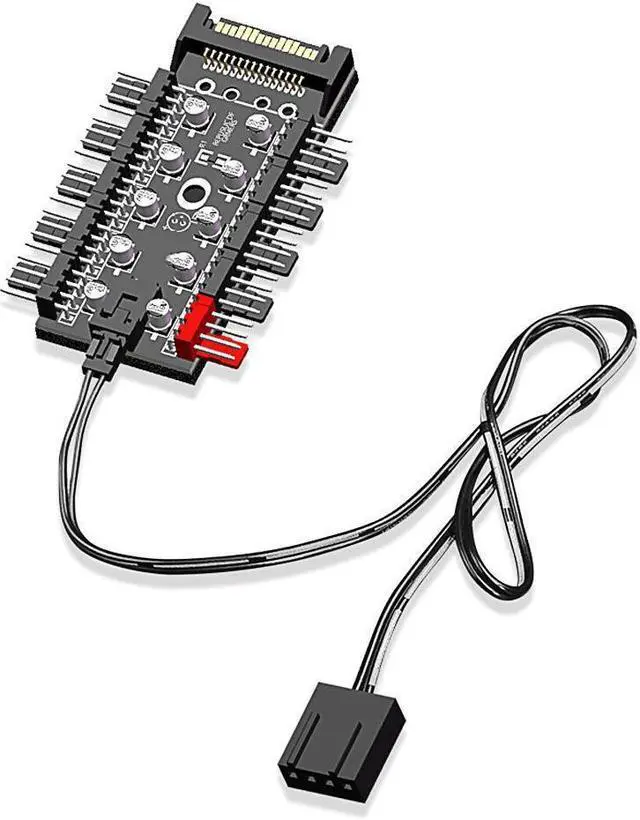

EnLabs PWMHUB10S 10 Ports 4-Pin PWM Fan Hub, SATA 15pin to 10 Fan Power Splitter Adapter Cable w/ Self-sticker for 3Pin / 4Pin fan
- 10 Ports 4pin PWM fan hub power splitter
- Compatible with 3-pin/ 4-pin
- PWM function for 4pin PWM fans, run at the same speed using PWM controller
- full speed run for 3pin fans
- 16 inches PWM cable include
- Port of red header is for CPU Fan, request to connect PWM fan priority always
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
EN-Labs fan hub, a central distribution point in your computer! Especially in systems with many fans or have large radiators where multiple fans can be mounted, it is handy to have a central power point to connect the fans.
It is designed for enthusiasts with need for controlling numerous system fans
Capable of expanding one motherboard PWM fan header to support up to ten fans.
Ten capacitances equipped for every fan output, protect your device safe.
Support PWM Function, Speed control, satisfy your control needs.
Compatible with 3-pin / 4-pin Fans (Due 3pins no PWM controller, 3pin fans would run in full speed. )
Comes with Self-Stick for easy installation and options to hide the PCB itself.
All fans power by SATA 12V from PSU, reduce motherboard power load and heat.
Since only one RPM signal can be read by one motherboard connector, only ' Red header Fan' channel of the PWM hub carries an RPM signal; thus the motherboard will only read the RPM signal of the PWM device that is connected to this port
4 Pin PWM Fan Hub
10 Ports PWM 4pin output
Power by SATA 12V
2-pin / 3-pin fan can be plugged in to use, but can not achieve PWM control speed]
10 capacitor equipped fan hub
Provide more protection for your fans connected
SATA Powered
2 Pin PWM cable included for PWM control
The Red color 4 Pin header is special for CPU 4pin Cooler, request to connect PWM fan priority always

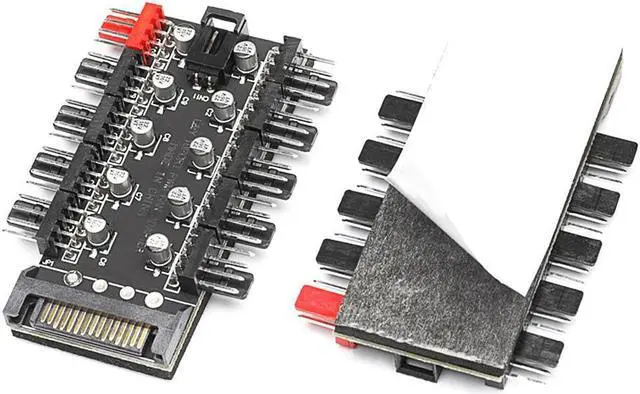

Comes with Self-Stick
Easy installation and options to hide the PCB itself in your PC case
It is designed for enthusiasts with need for controlling numerous system fans
Capable of expanding one motherboard PWM fan header to support up to ten fans.
Ten capacitances equipped for every fan output, protect your device safe.
Support PWM Function, Speed control, satisfy your control needs.
Compatible with 3-pin / 4-pin Fans (Due 3pins no PWM controller, 3pin fans would run in full speed. )
Comes with Self-Stick for easy installation and options to hide the PCB itself.
All fans power by SATA 12V from PSU, reduce motherboard power load and heat.
Since only one RPM signal can be read by one motherboard connector, only ' Red header Fan' channel of the PWM hub carries an RPM signal; thus the motherboard will only read the RPM signal of the PWM device that is connected to this port
4 Pin PWM Fan Hub
10 Ports PWM 4pin output
Power by SATA 12V
2-pin / 3-pin fan can be plugged in to use, but can not achieve PWM control speed]
10 capacitor equipped fan hub
Provide more protection for your fans connected
SATA Powered
2 Pin PWM cable included for PWM control
The Red color 4 Pin header is special for CPU 4pin Cooler, request to connect PWM fan priority always
Comes with Self-Stick
Easy installation and options to hide the PCB itself in your PC case
