Hilitand Power Supply Adapter Board, Straight Plug Desktop Computer Converter LDA300WL 12V/300W for Small ATX Boards, with Short-Circuit Protection
- Heat Resistance: Power Supply adapter board with high heat resistance, strong and durable, the performance of the product is more reliable.
- Save Space: This product can save space in the case without affecting power requirements.
- Safe Short-Circuit Protection: With short-circuit protection, when the output is short-circuited, the output is turned off. When the output current reaches the peak current, the output is turned off.
- Applicability: Suitable for small ATX boards, by directly plugging into the motherboard ATX connector to 24 unnecessary wires.
- After Sales Service: If there are any using problems or unsatisfactory with our products, please feel free to contact us, our professional customer service team will reply you within 24 hours, and we will consult the issues with sincerity. Thanks for purchasing from us.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Power Supply Adapter Board
Model: LD-A300WL
Material: PCB
Power: 300W
Input Voltage: 12V
Output Voltage/maximum Load: +5VSB/2A+5VDC/8A+3.3VDC/8A+12VDC/16A-12VDC/0.05A

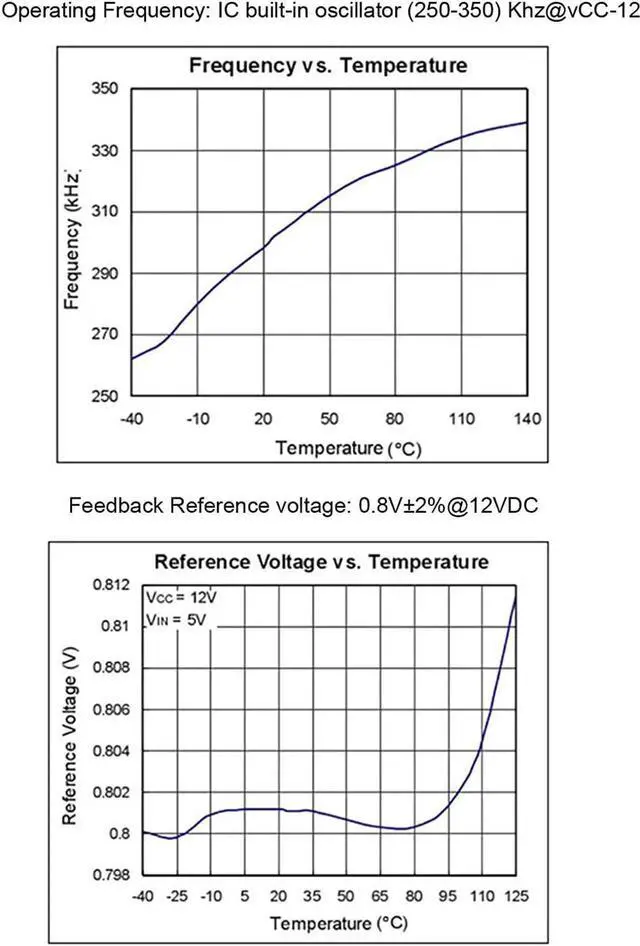

Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU8Pin, 1 x SATA, 1 x IDE, 1 x small 4pin, 1 x DC5525
Cable Length: DC Cable Length: Approx. 320mm / 12.6in
CPU Cable Length: Approx. 230mm / 9.1in
IDE Cable Length: Approx. 195mm / 7.7in
SATA Cable Length: Approx. 155mm / 6.1in
Small 4Pin Cable Length: Approx. 150mm / 5.9in

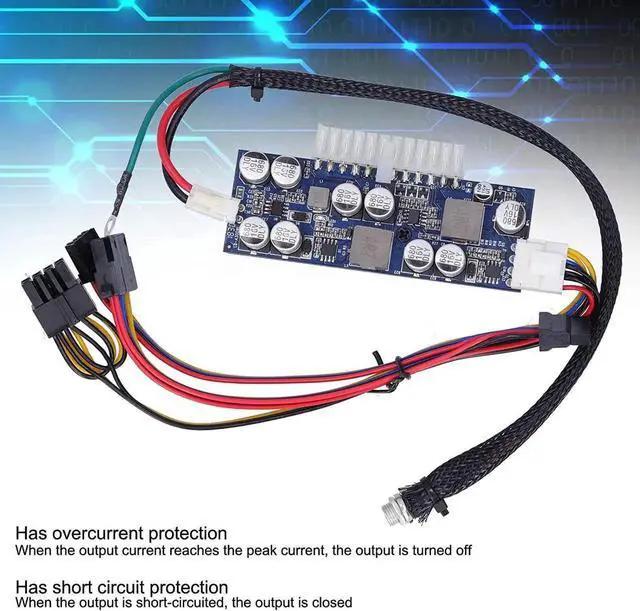

Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/humidity: -5 ~ 55/45%~75%
Storage Temperature/humidity: -40 ~ 70/10%~90%
Applications: MINI computers, HTPC computers, POS machines, ITX cases, web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
Package List:
1 x Power Supply Adapter Board
