Aquacomputer Aquaero 6 PRO USB Intelligent Fan Controller (53145)

The aquaero is an absolutely autonomous working microprocessor-controlled device with USB 2.0 interface. All speed parameters and sensor values can be set and visualized in an user-friendly menu or through an even easier to use PC-software. Additionally, the graphic LC display can be used to display almost any information using the popular LCD software LCDHype.

The key features of the aquaero 6 include:
· Programmable four channel fan controller

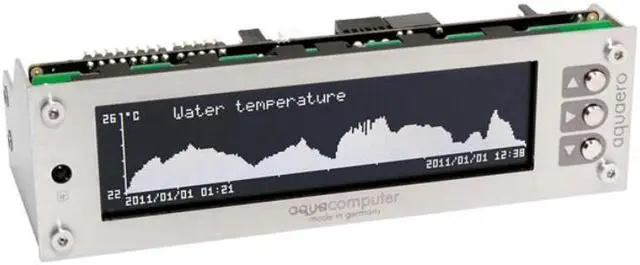

· Graphic LC display with backlight
· USB 2.0 and aquabus interface
· Four fan outputs with up to 30 Watt of power per channel
· All fan outputs with 4-Pin plug, switchable to PWM control
· Versatile control options
· Eight temperature sensor inputs
· Flow sensor input
· Universal IR receiver
· Output for IR transmitter
· Three LED outputs
· Potential-free switch
· Two additional power outputs
· Extensive alarm options
· Acoustical alarm
· Speed signal output for status evaluation
· Expandable to a maximum of 12 fan channels

Several aqua computer products can be used to expand the functionality of the aquaero 6 controller. These expansions are dynamically mapped into the menus and display pages of the aquaero, creating a consitent control system rather than individual devices.

In maximum configuration, the following devices can be connected to an aquaero 6 simultaneously:
2x aquastream XT pumps
8x poweradjust 2/3
1x aquaero 5 LT (in this case only 4x poweradjust 2/3)
4x mps based devices (flow sensor, pressure/fill level sensor and D5 pump with aquabus)
2x farbwerk controller
1x Real Time Clock expansion module

Installation Manual
