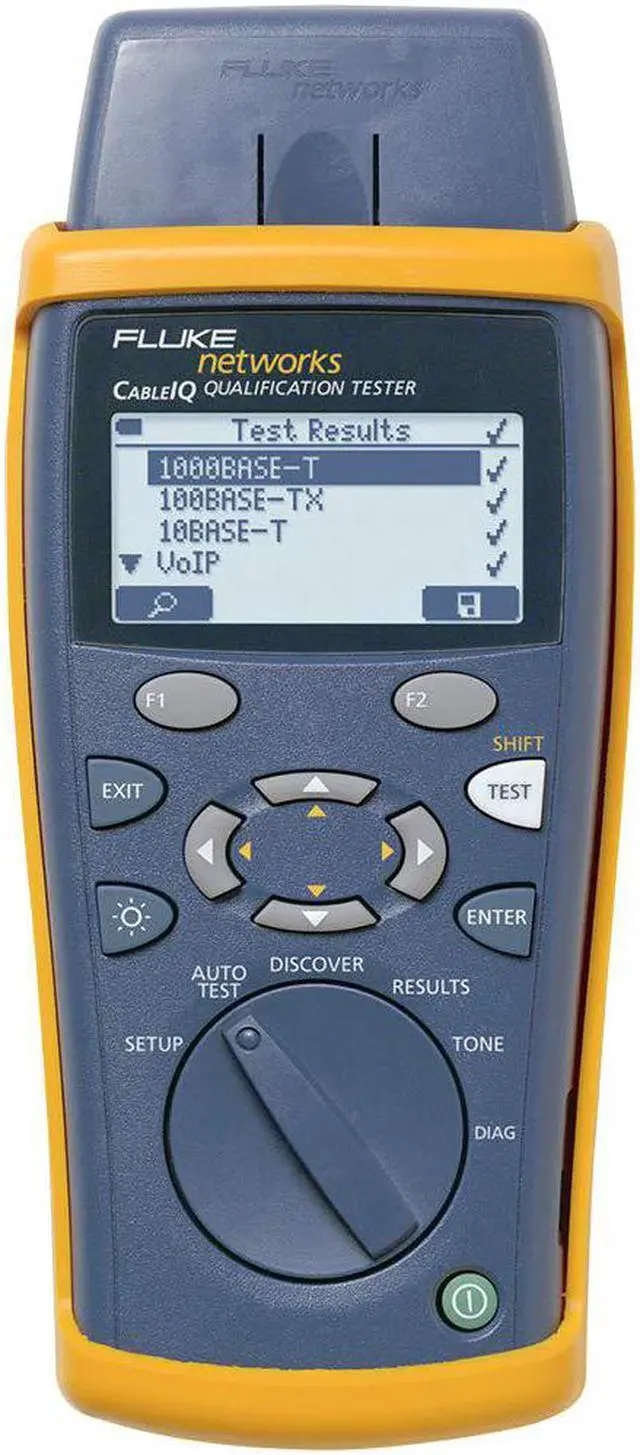

Fluke Networks CIQ-100 Copper Qualification Tester, Qualifies and Troubleshoots Category 5-6A Cabling for 10/100/Gig Ethernet, Coax and Voip

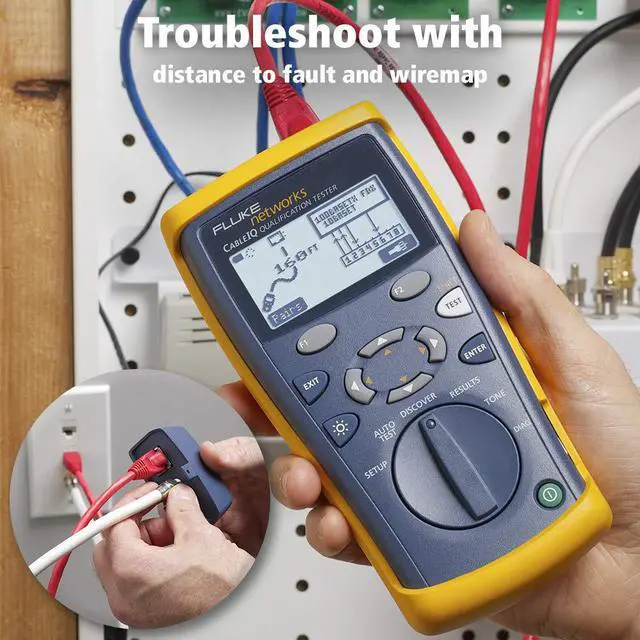

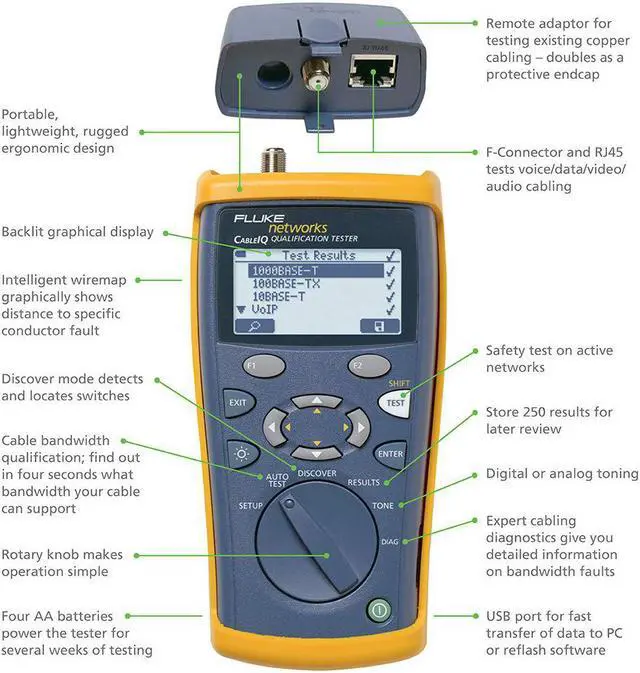

Cable troubleshooting Plug into any cable, patch panel, or wall jack and see both the cable details (length/wiremap) and far-end device details (speed/duplex settings) at once. A series of both cable and network test functions help you isolate connectivity problems. Intelligent wiremap The CableIQ testers 'intelligent wiremap' feature tests for length, shorts, split pairs, or opens and displays with an intuitive graphical interface where a fault is located. Unlike other cable testers that just show a series of numbers for a wiremap, the unit displays an easy-to-read graph with distance to faults proportional to the cable length.

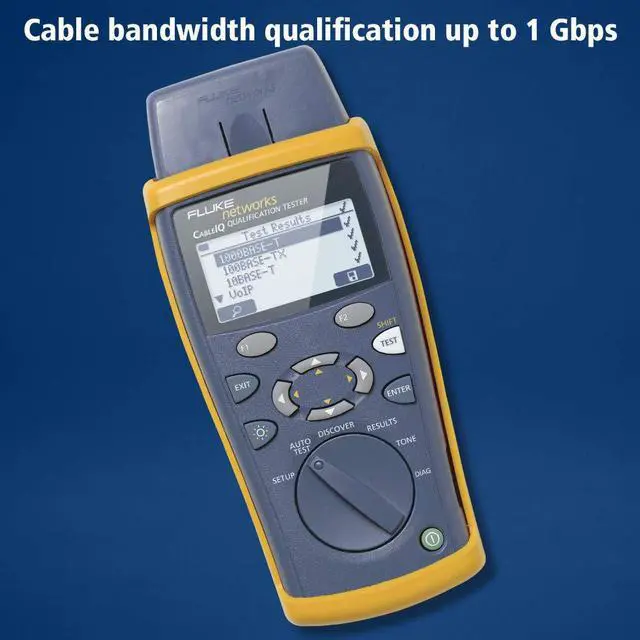

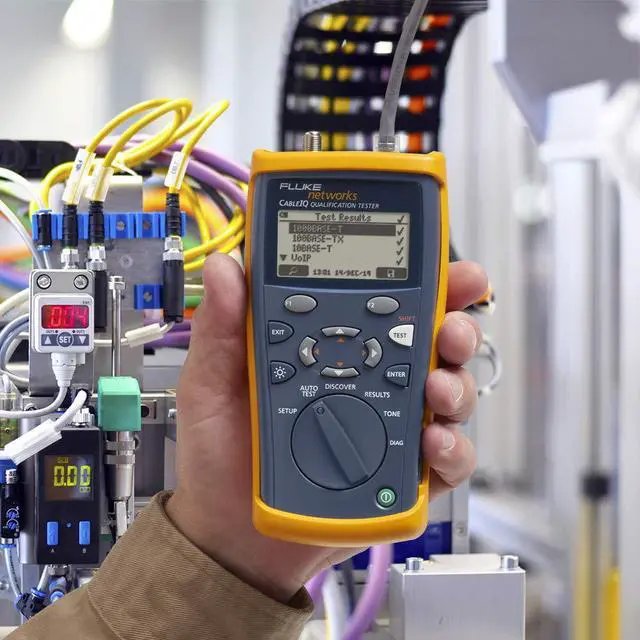

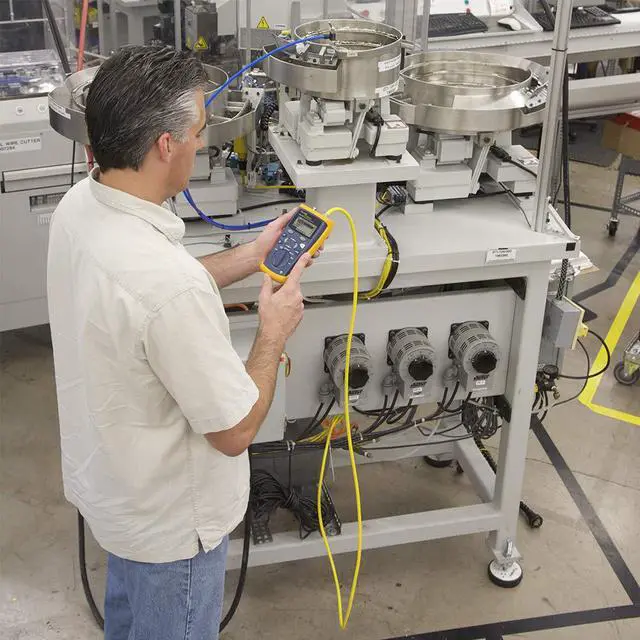

It also identifies breaks and shorts by pin, rather than by pair. This dramatically reduces the time to locate and troubleshoot a poorly terminated jack, or a break in the middle of a cable. Industrial Ethernet applications Cables often fail in harsh industrial environments where cables are exposed to vibration, extreme flexing, moisture, expansion and contraction from temperature change. Failures result in costly production downtime so its important to quickly identify where the cable is broken so it can be replaced or repaired. Bandwidth qualification When you deploy Voice over IP (VoIP) or Gigabit Ethernet, you want to make sure that the existing cabling will support the bandwidth requirements of your new equipment.

Your cabling was certified, but moves adds and changes have rendered many links incapable of running desired speeds. CableIQ quickly reveals whether a link, including patch cords, is qualified for voice, 10/100BASE-T, VoIP, or Gig.
