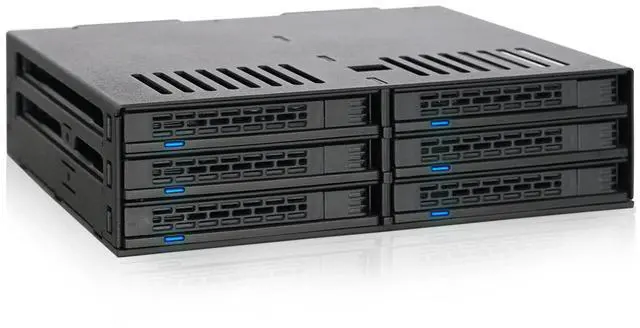

ICY DOCK ExpressCage MB326SP-1B 6-Bay 2.5 SATA/SAS SSD/HDD Hot-Swap Mobile Rack Enclosure with Tool-Less SSD Mounting System for 5.25 Drive Bay (6 x SATA 7pin)
- Supports up to 6 x 2.5" SATA/SAS HDDs or SSDs into a single 5.25" bay
- Compatible with SATA 6Gbps or SAS 3.0 12Gbps (Single channel)
- Hot-swappable bays for quick and convenient drive replacement
- Accommodates 2.5" drives with 5mm, 7mm, and 9.5mm height
- Active Power Technology (APT) - only powers up if there is drive installed in the drive bay
- ExpressTray system: tool-less, removable trays designed for easy installation while maintaining the stability of tray-based designs
- Optional bottom-mounted screw holes for enhanced drive stability
- Individual blue LED indicators for each bay
- Dual user-upgradeable 40mm fans for effective drive cooling
- Supports 3-pin fan connectors for aftermarket fan upgrades
- Two 15-pin SATA power connectors power all six drives
- Locking latch design for both 7-pin SATA connector and 15-pin power connectors to ensure secure connections
- Three-speed fan control: High / Low / Off
- Durable metal enclosure with heavy-duty ABS trays and door latches
- Ideal for power users, system builders, and applications requiring space-efficient 6-bay 2.5" hot-swap storage solutions
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Tool-Less Removable Tray Design for High-Density Storage
The ICY DOCK ExpressCage MB326SP-1B is a 6-bay 2.5 SATA/SAS SSD/HDD mobile rack that fits into a standard 5.25 optical drive bay, ideal for NAS servers, homelab systems, compact workstations, and small business servers. It combines high-density storage with ICY DOCKs proven tool-less removable tray design, allowing quick hot-swaps and easy maintenance while securely supporting drives from 59.5mm in height.
Designed for users who value flexibility and serviceability, the MB326SP-1B enables effortless drive upgrades, swaps, and replacements without opening the chassis perfect for testing different drive types, expanding RAID volumes, or managing backups. With six hot-swap bays, it is particularly suited for applications that require larger drive pools in limited space, such as virtualization labs, SMB servers, surveillance systems, or media production environments.
High-Density Storage in Any 5.25" Optical Drive Bay
The MB326SP-1B transforms a single 5.25 bay into six individually hot-swappable 2.5 drive bays. Supporting SATA III 6Gbps and single-channel SAS drives (SAS host required), this enclosure is ideal for building compact RAID arrays or expanding high-capacity NAS volumes. With the ability to power all six drives using only two 15-pin SATA power connectors, cable clutter is minimized allowing for cleaner builds and improved airflow.

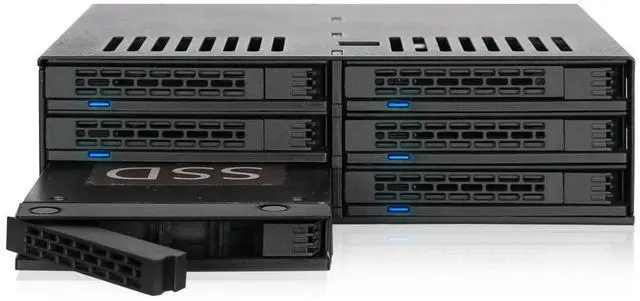

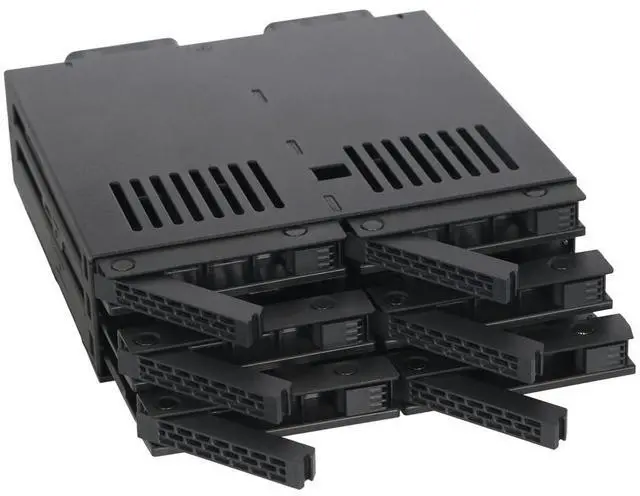

ExpressTray with Tool-Less & Screw Mounting
The MB326SP-1B features ICY DOCKs ExpressTray system, designed to simplify drive installation and removal with a fully tool-less process. Drives can be secured to the tray in seconds - just align the front end of the drive with the built-in pins, press the connector side down, and it locks firmly into place. To remove, pull the rear latch tab and lift the drive upward.
For environments requiring additional stability, such as systems exposed to vibration or mobile enclosures, the tray also includes optional screw holes for extra drive retention. With its reinforced latching mechanism, the ExpressTray ensures reliable performance and long-term durability even under frequent drive swaps.

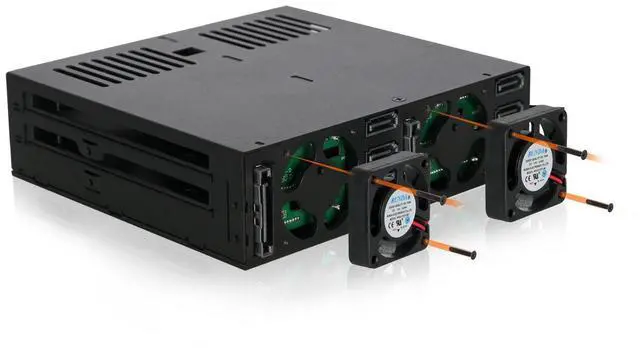

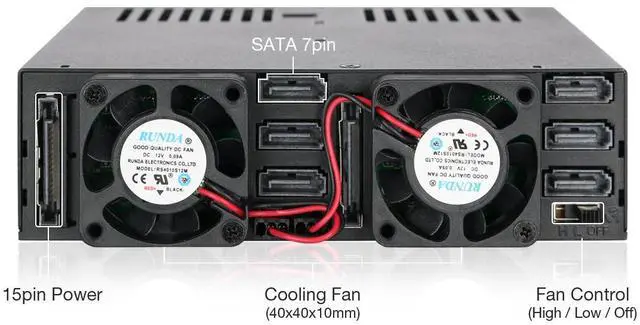

Advanced Cooling with Adjustable Dual-Fan Control
To handle the thermal demands of six drives, the MB326SP-1B is equipped with two rear-mounted 40mm cooling fans, supported by ventilation holes around the chassis and trays. Users can select from three fan modes using a switch slider:
- HIGH Maximum cooling performance
- LOW Quiet operation for home or office environments
- OFF Fan disabled for silent operation in low-power or low-heat setups
| Model Number: | MB326SP-1B |
| Color: | Black |
| Support Drive Size: | 2.5" SSD / HDD |
| Compatible Drive Type: | SATA / single channel SAS (SAS host required) |
| Number of Drives: | 6 |
| Max Drive Height: | 9.5mm |
| Drive Bay: | 1 x 5.25" half height drive bay |
| Host Interface: | 6 x SATA 7pin |
| Power Input: | 2 x 15 pin SATA power connector |
| Transfer Rate: | SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps |
| Support HDD Capacity: | No limitation |
| Drive Cooling: | 2 x 40mm fan |
| Structure / Material: | Metal with partial plastic |
| Support Hot-Swap: | Yes |
| Product Dimension (L x W x H): | 140.5 x 145.8 x 41.3mm |
| Product Net Weight: | 441g |
| Package Gross Weight: | 516.2g |
| Drive Activity LED Indication: | Drive power: solid blue; Drive access: flashing blue |
| Package Contents: | 1 - Device, 1 - user manual, 24 - screw |
| SATA Connector Insertion Rate: | 10,000 |
| Humidity: | 5%~65% RH |
| Operating Temperature: | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature: | -35°C to 70°C (-31°F to 158°F) |
| Compliance: | CE, UKCA, RoHS, REACH |
| Warranty: | 3 years |
