$1,099.99
Ships from China.
Meet Your Seller

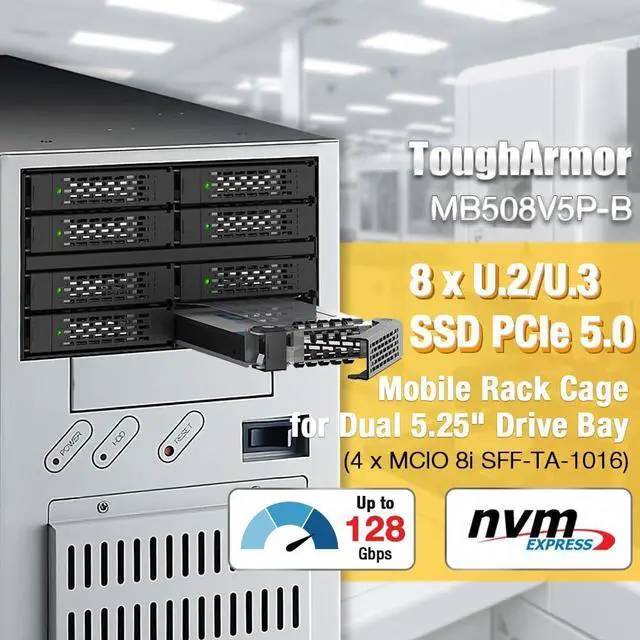

ICY DOCK ToughArmor MB508V5P-B 8-Bay 15 mm U.2/U.3 NVMe SSD Mobile Rack Cage for Dual 5.25" Drive Bay (4 x MCIO 8i SFF-TA-1016)
- Fits 8 × 15 mm U.2/U.3 NVMe SSDs in 2 × 5.25" drive bays
- 4 × MCIO 8i (SFF-TA-1016) connectors support PCIe Gen5 x4 per drive
- Tri-Mode HBA/RAID card compatible (NVMe mode only)
- Supports U.2/U.3 SSD heights from 7 mm to 15 mm (ready for 5 mm and 9.5 mm future standards)
- 80 mm cooling fan + optimized airflow path for stable Gen5 operation
- 1 × PCIe 8-pin + 1 × PCIe 6-pin power inputs for reliable high-power delivery
- Full-metal ToughArmor construction for industrial durability

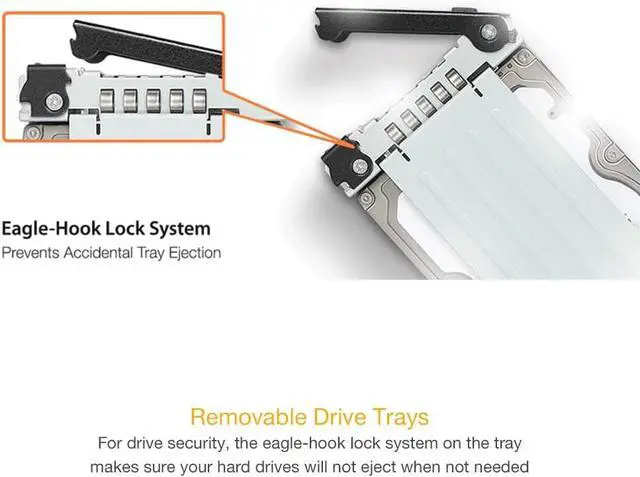

- Eagle-Hook tray lock system prevents accidental ejection
- Ideal for AI servers, edge computing, and media workstations
- 5-year warranty / CE, UKCA, RoHS, REACH compliant
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

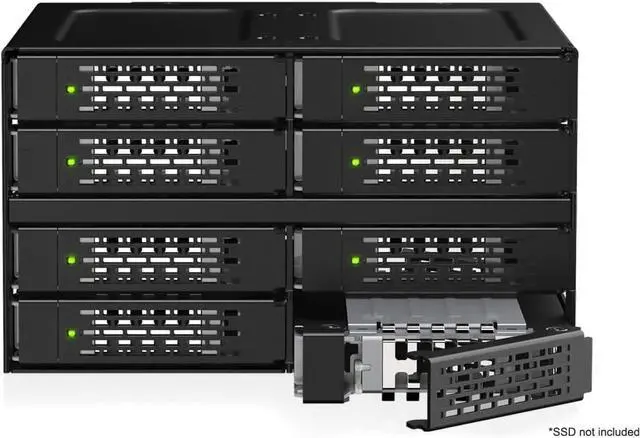

The ToughArmor MB508V5P-B converts two external 5.25" drive bays into an eight-bay removable NVMe storage solution designed for enterprise servers, industrial computers, and media workstations.
Supporting up to eight 15 mm U.2/U.3 NVMe SSDs via four MCIO 8i (SFF-TA-1016) connectors.
The EZ-Slide removable tray system enables quick drive swaps without system downtime, supporting true hot-swap functionality for NVMe SSD maintenance and replacement

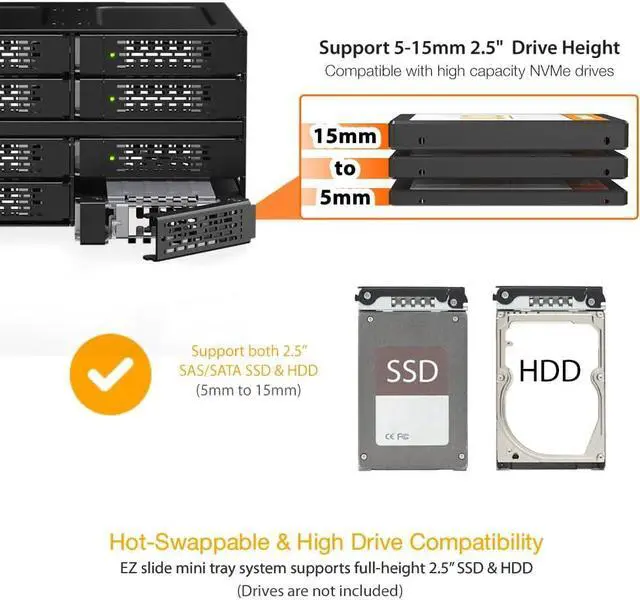

Each tray supports 2.5" U.2 and U.3 NVMe SSDs from 7 mm to 15 mm in height, allowing the use of both standard and high-capacity drives within the same enclosure.

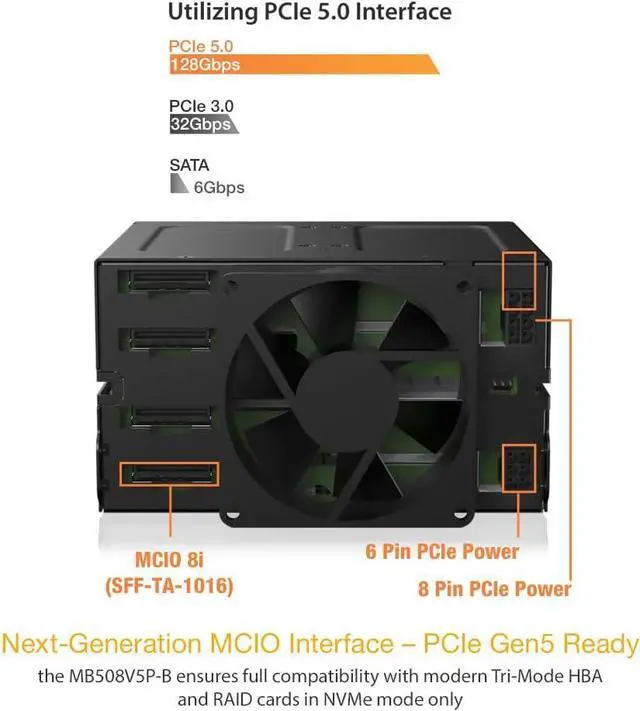

Equipped with four MCIO 8i connectors compliant with SFF-9402 Rev 1.1, the MB508V5P-B ensures full compatibility with modern Tri-Mode HBA and RAID cards in NVMe mode only.

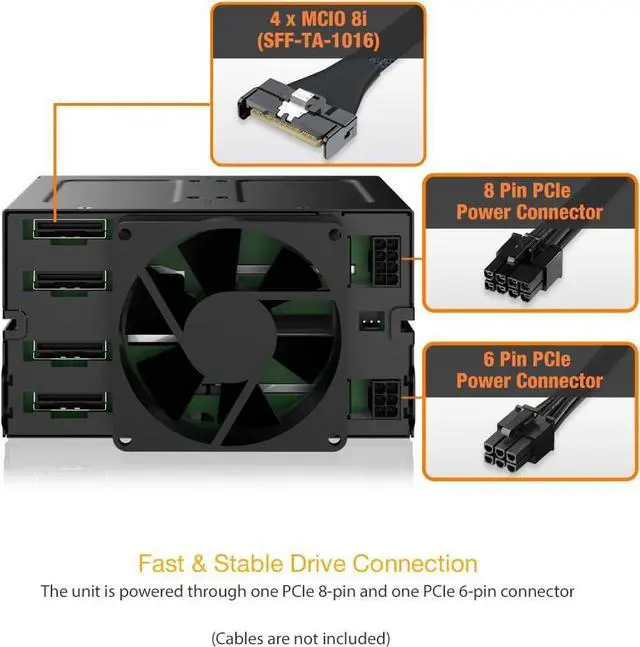

The unit is powered through one PCIe 8-pin and one PCIe 6-pin connector, delivering stable high-current power suitable for todays power-hungry NVMe SSDs used in 24/7 industrial and server operations.
Optimized Cooling for Gen5 NVMe Thermal DemandsCompared to single bay mobile rack enclosures, the MB508V5P-B employs a large 80 mm cooling fan and an optimized front-to-PCB airflow path to ensure effective heat dissipation across all eight high-speed drives.
Click to play video
Constructed entirely from heavy-duty metal, the ToughArmor chassis provides outstanding structural rigidity and EMI protection for mission-critical environments.
The all-metal tray design (MB991TRAY-B) ensures long-term durability, even under frequent drive swaps or transport.
