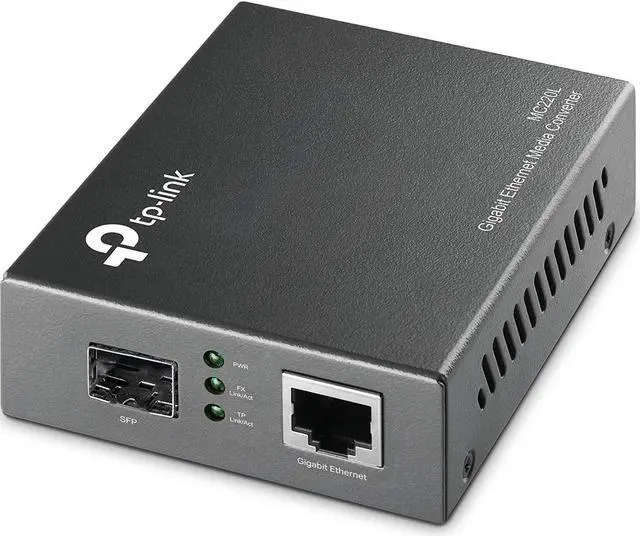

TP-LINK MC220L 1000M RJ45 to 1000M SFP Slot Supporting MiniGBIC Modules

Brand: TP-LINK

Features:

• Complies with IEEE 802.3ab and IEEE 802.3z


• Works at 1000 Mbps in Full-Duplex mode for both TX port and FX port


• Supports auto MDI/MDIX for TX port


• Provides switch configuration of Force /Auto transfer mode for FX port

Binding: Personal Computers

Release Date: 09-03-2011

Details: Product Description


What This Product Does
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a standalone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
Features
· Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
· FX port support hot-swappable
· Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
· Easy-to-view LED indicators provide status to monitor network activity easily
· External power supply


Legal Disclaimer


Product is sourced and shipped from the European Economic Area (EEA). Product is genuine original from manufacturer authorized distributors.


Box Contains


Fiber Converter
Power Adapter
User Guide

Package Dimensions: 8.0 x 6.5 x 2.6 inches

Languages: Turkish
