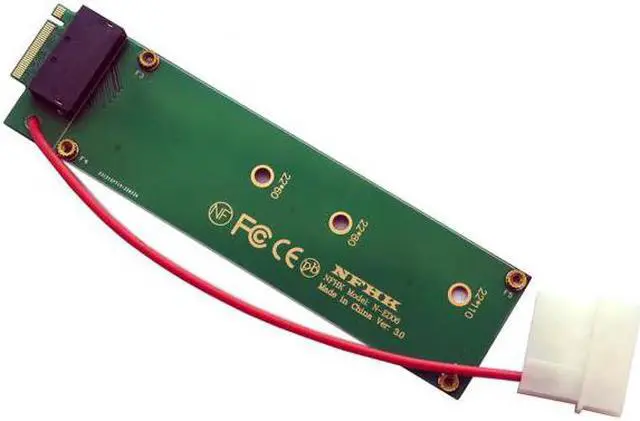

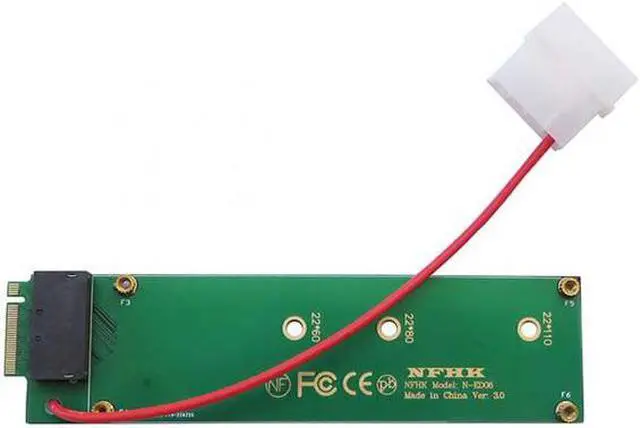

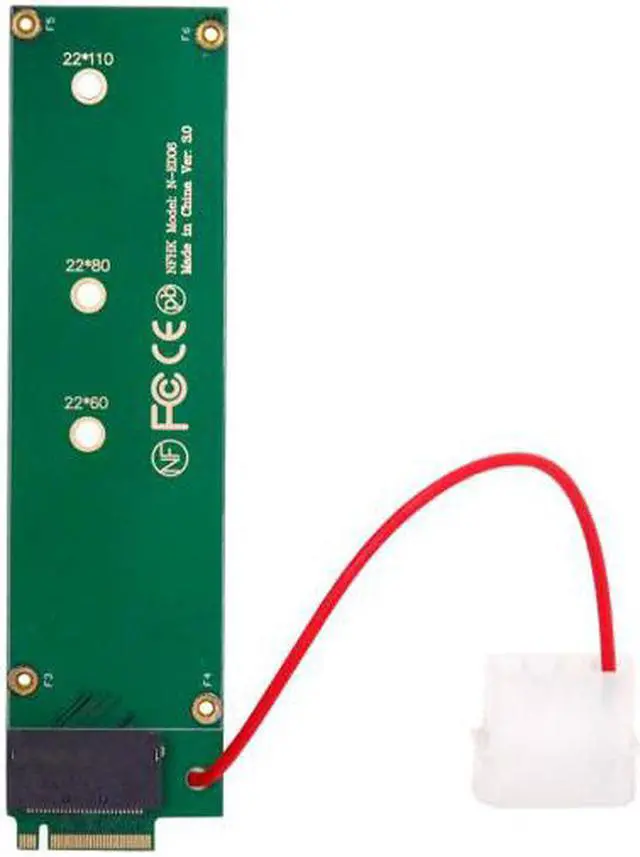

Ruler 1U GEN-Z EDSFF Short SSD E1.S to NVMe NGFF M-key 4X Host Carrier Adapter with Power

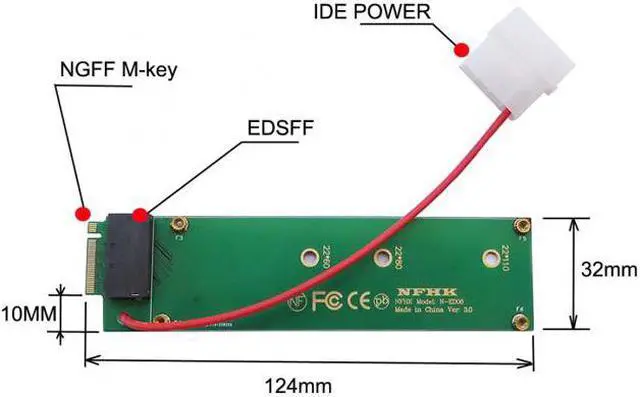

Please check the PCBA dimension carefully, The dimension is bigger than 2280 NGFF SSD.
You need to connect the 4pin power to work it.

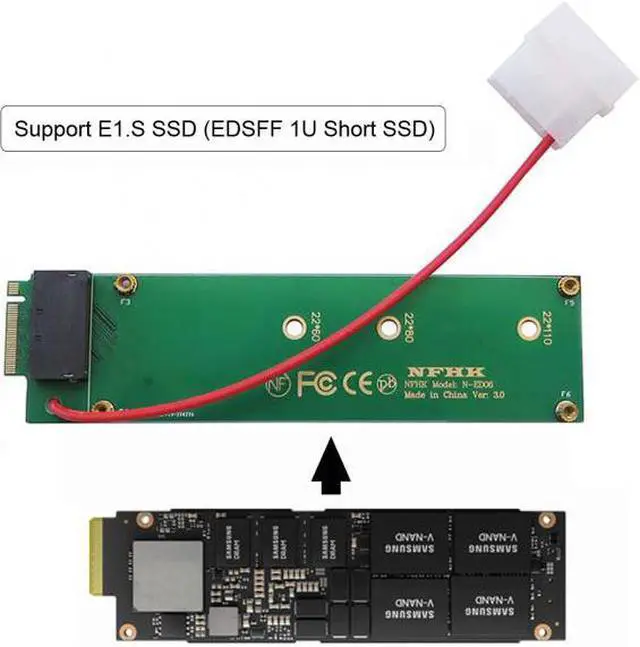

This converter enables the connection of a edsff ssd and NVMe NGFF M-key 4X format.
The converter can be installed into your system internally through the NVMe NGFF M-key 4X interface.

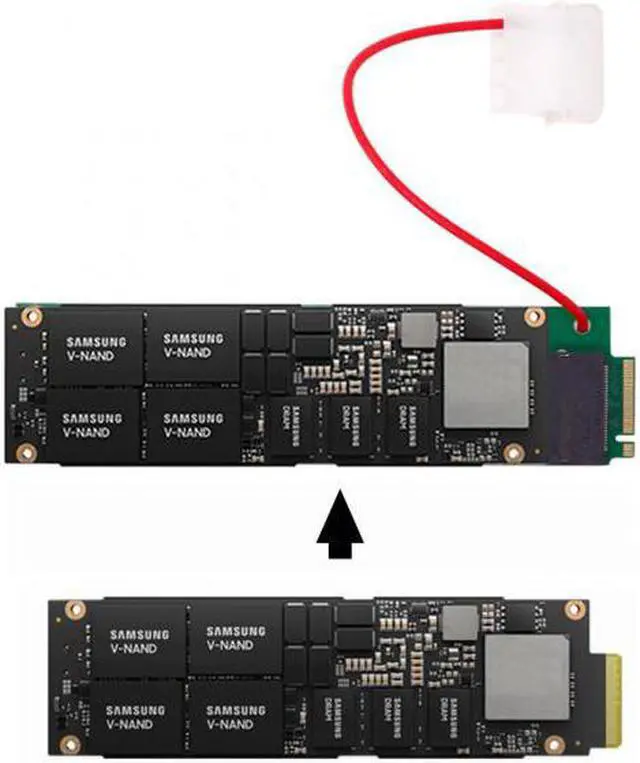

Thus an EDSFF E1.S SSD becomes an M.2 SSD, which can be used in IoT, data center and server area.
Supports M.2 modules with key M based on PCIe
Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported.
Connectors: 1 x EDSFF E1.S female to 1 x 67 pin M.2 key M male
Interface: PCIe x4 Rev. 4.0
