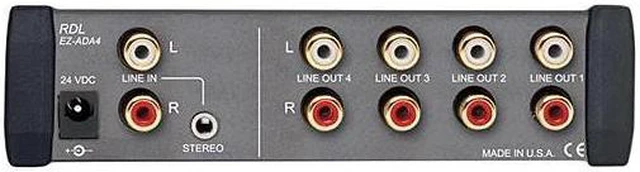

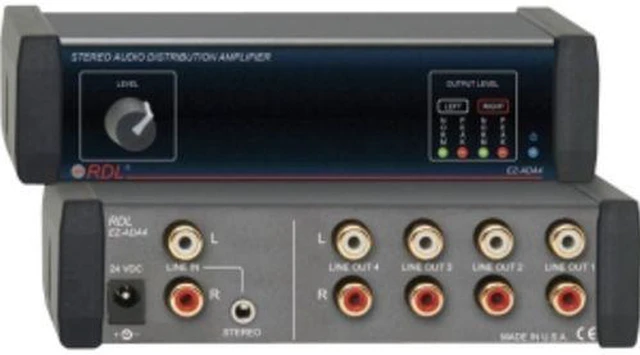

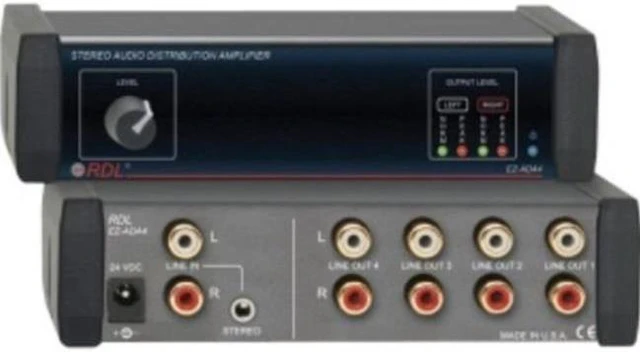

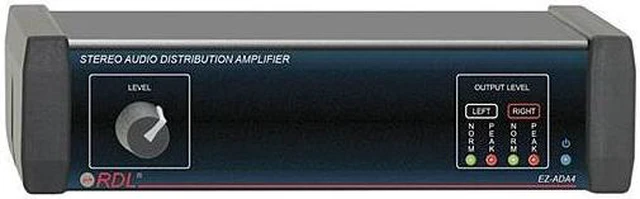

EZ Series Stereo Audio Distribution Amplifier 1 x 4
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Inputs (2): Stereo on dual RCA jacks or stereo mini jack, > 10 kΩ, − 10 dBV nominal, +22 dBV max.
Level control: Off to 12 dB gain above nominal
Outputs (4): Stereo on dual RCA jacks, − 10 dBV nominal, +16 dBV max.
Frequency Response: 10 Hz to 20 kHz (± 0.01 dB)
THD+N: < 0.03 %
Crosstalk: <− 80 dB (1 kHz)
Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
Noise: <− 85 dB (below − 10 dBV output) 24
Vdc power supply current: 20 mA (idle), 60 mA (max.
) Case dimensions: 5.75" ( 14.6 cm)W x 3" ( 7.6 cm)D
Mounting size:? rack width.
Level control: Off to 12 dB gain above nominal
Outputs (4): Stereo on dual RCA jacks, − 10 dBV nominal, +16 dBV max.
Frequency Response: 10 Hz to 20 kHz (± 0.01 dB)
THD+N: < 0.03 %
Crosstalk: <− 80 dB (1 kHz)
Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
Noise: <− 85 dB (below − 10 dBV output) 24
Vdc power supply current: 20 mA (idle), 60 mA (max.
) Case dimensions: 5.75" ( 14.6 cm)W x 3" ( 7.6 cm)D
Mounting size:? rack width.
