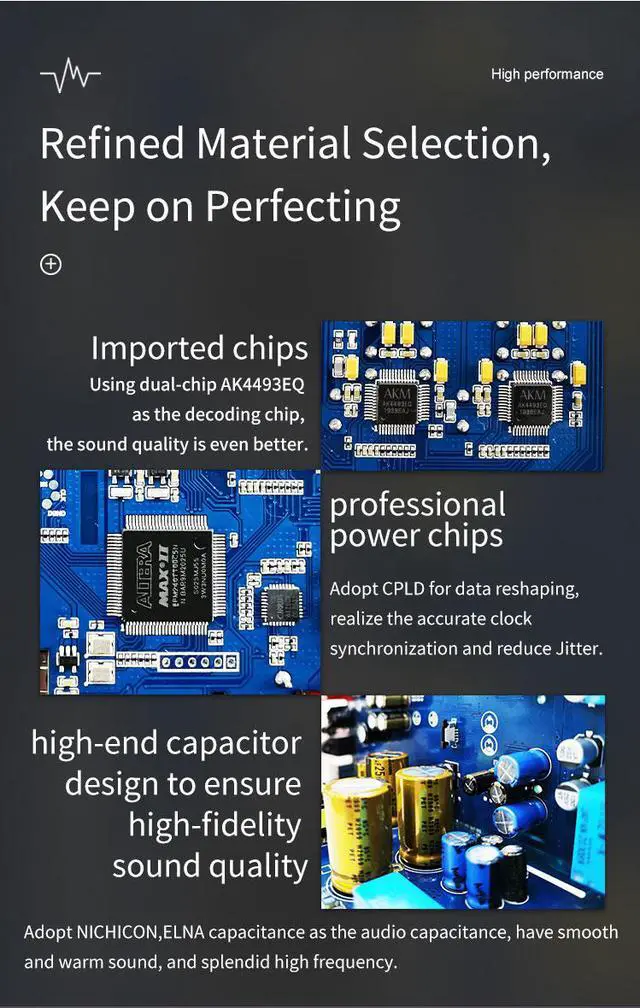

Xduoo XA-10 AK4493EQ *2 Chips Full Decoding DSD512 High Performance Balanced USB DAC XMOS Headphone Amplifier CSR8675 Bluetooth

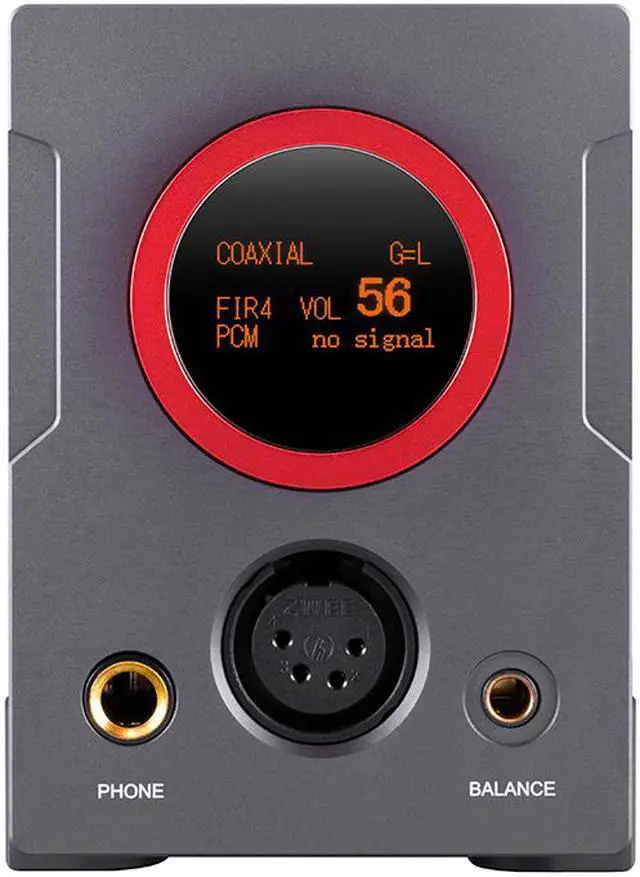

Several Output Interface, Output Power Up to 4000mW:

With 6.5 single ended output, output power up to 3000mW.

With 4-pin XLR balanced output, the output power reaches 4000mW.

With 4.4 balanced output, the output power reaches 4000mW.





Full Format Decode:

Support DSD format, maximum support DSD512.

Support DXD format, the maximum support sampling rate of 32bit / 384khz.

Support full MQA format, maximum support 8 times expansion, that is 32bit / 384khz.

Support PCM formats with a maximum sampling rate of 32bit / 768khz.

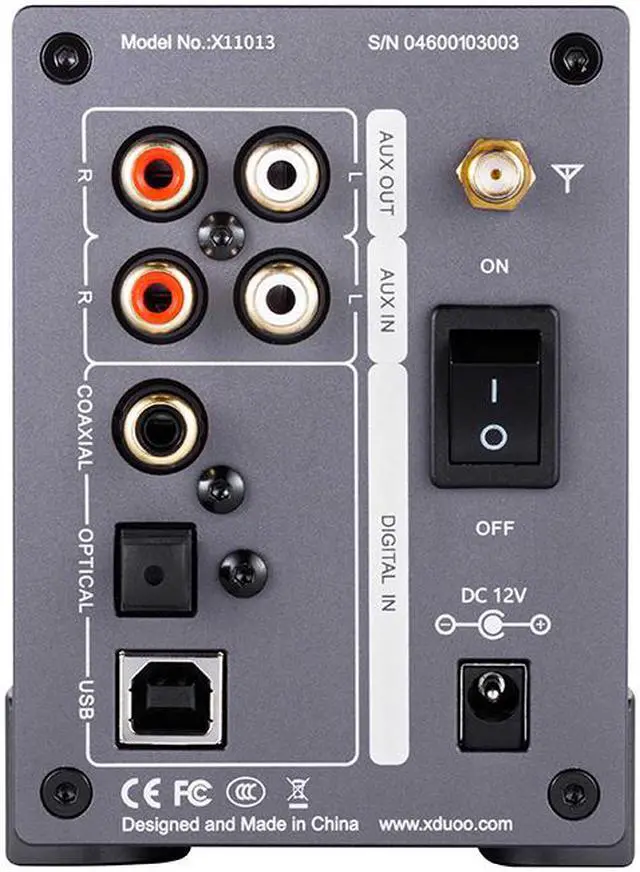

Multiple Input Interfaces

Support high-definition USB audio input:It can be connected to the USB interface of a computer, mobile phone,tablet, or HIFI player, Supports up to PCM32bit/768KHz, DSD512.

Support HD coaxial, optical input: It can be connected to desktop CDs, players, various digital turntables, etc, Supports up to PCM 24bit/192KHz, DSD64.

Support high-definition Bluetooth input: It can be connected to various Bluetooth playback devices,Support SBC, AAC, aptx, aptx LL,aptx HD, LDAC format transmission.

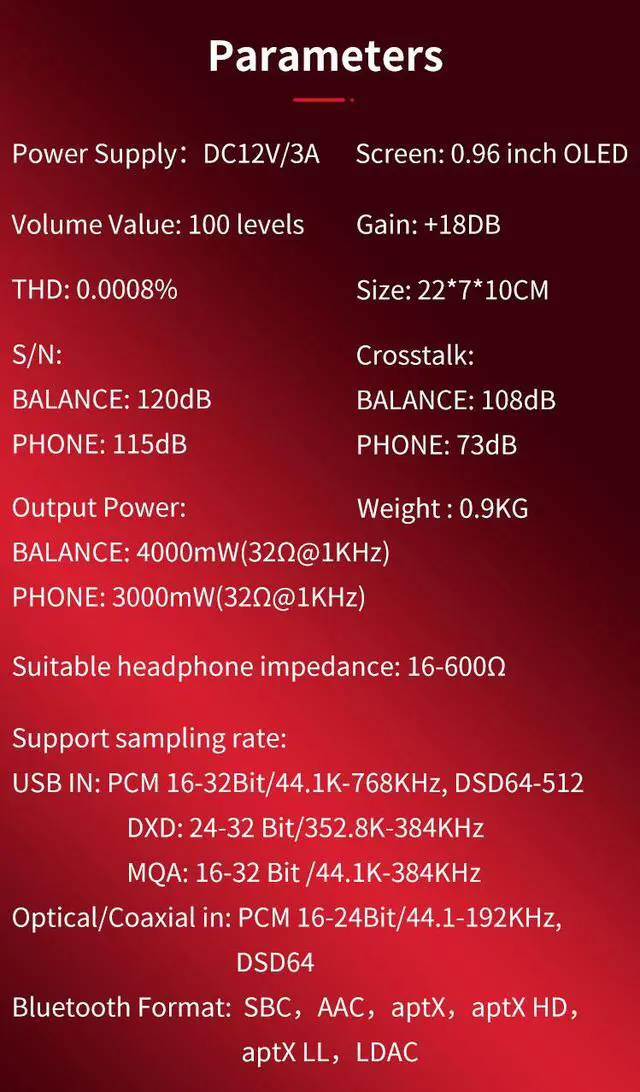

Parameters

Power Supply: DC12V/3A

Screen: 0.96 inch OLED

Volume Value: 100 levels

Gain: +18DB

THD: 0.0008%

Size: 22*7*10CM




S/N:

BALANCE: 120dB

BALANCE: 108dB





Crosstalk:

PHONE: 115dB

PHONE: 73dB


Output Power:

BALANCE: 4000mW(32O@1KHz)

PHONE: 3000mW(32O@1KHz)


Weight : 0.9KG

Suitable headphone impedance: 16-600O






Support sampling rate:


USB IN: PCM 16-32Bit/44.1K-768KHz, DSD64-512

DXD: 24-32 Bit/352.8K-384KHz

MQA: 16-32 Bit /44.1K-384KHz


Optical/Coaxial in: PCM16-24Bit/44.1-192KHz,DSD64

Bluetooth Format: SBC, AAC, aptX, aptX HD, aptX LL, LDAC
