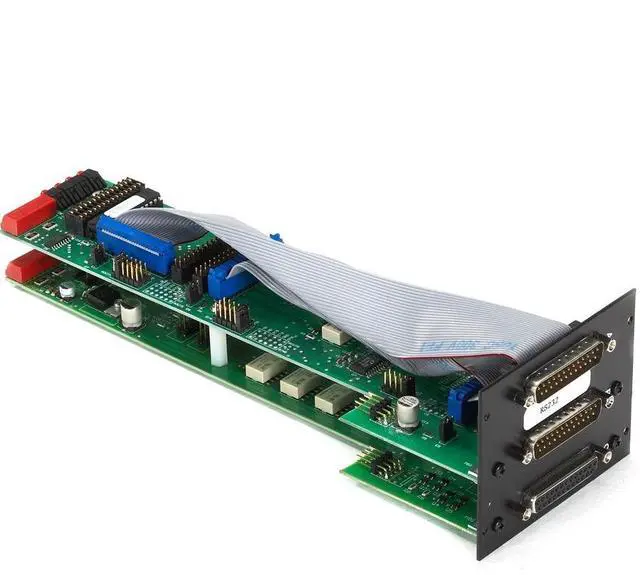

Black Box Pro Switching Gang Switch - 2U - RS-232/DB25 - A/B Card - Latching - SM265A

  • A/B Switch Cards are available for RS-232, video, fiber optic, and CAT5e/CAT6 connections. The card featured here is the DB25/RS-232. Use the system for both new and legacy applications. You can add cards for fast CAT6 10-GbE networking while keeping connections for older RS-232 and 75-ohm video connections.
  • For fail-safe operation, all the cards (except those noted) use proprietary latching or micro-mirror relay switching technology - which means data can continue to pass through even if the power has been cut off. Because the cards perform Layer 1 switching, the system operates independently of data rates, protocols, formats, or signal levels.
  • The non-latching fiber cards fall back to a Port C (chassis) to Port A connection when the power fails. When power is restored, the non-latching switch card reconnects Port C to the originally selected port (A or B). These types of cards are typical when you want a fallback or failover connection during power outages.
  • Each chassis also has a keyed switch so you can enable/disable manual switching from the front-panel toggle switches.
+
+
Overview
Specs
Reviews
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

GANG SWITCH RS232/DB25-A/B CARD LATCH 2U

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.

Manufacturer Contact Info

LOADING...

The Black Box SM265A is a 2U latching A/B gang switch with a DB25/RS-232 card, suited to organizations routing legacy serial connections that need switching designed to keep data passing if power is lost.

Recommended For

  • IT and telecom teams maintaining legacy RS-232/DB25 equipment can use this card to switch a serial connection between A and B paths while keeping the existing interface.
  • Rack-system integrators who already use the Black Box 2U Pro Switching System and need a DB25/RS-232 A/B card can add this module to that chassis.
  • Operators who need an RS-232 route to remain in its last selected position during a power interruption can use the latching card in a system that supports it.
  • Technicians monitoring serial links can use the card’s A/B indicators to check the status of TXD, RXD, RTS, and DCD signals.

Spec Summary

AttributeValue
Best ForA/B switching for RS-232/DB25 connections in new or legacy applications
InterfaceSerial interface for RS-232/DB25 connections
Model IdentifiersBlack Box SM265A
Physical AttributesMulticolor; item weight 1 pound
Package DetailsOne unit; package dimensions 11.25 × 4.8 × 4 inches
