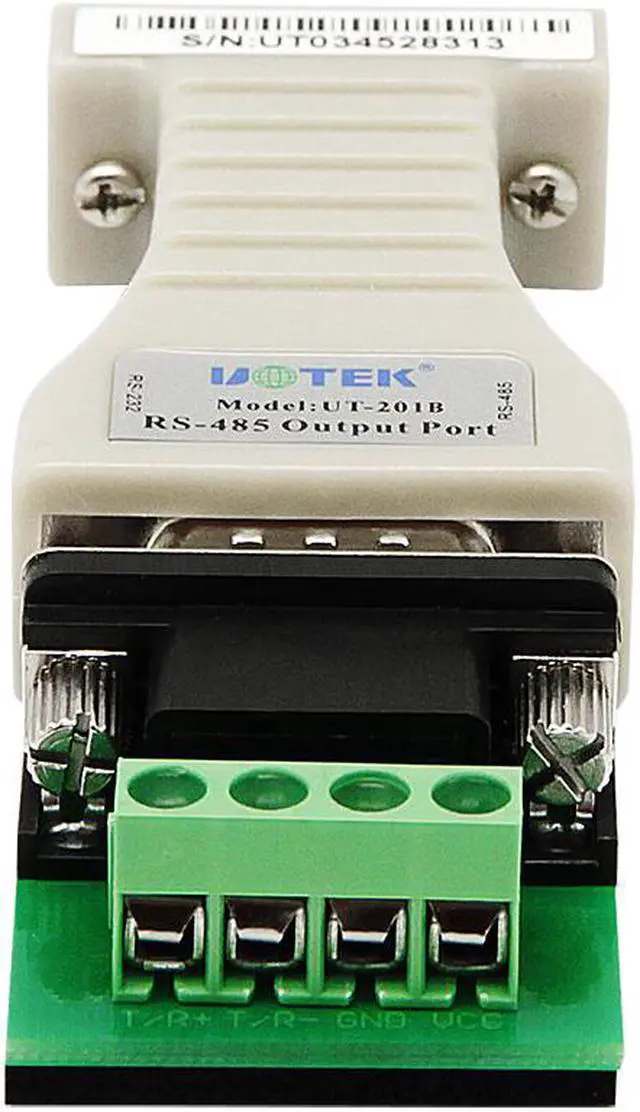

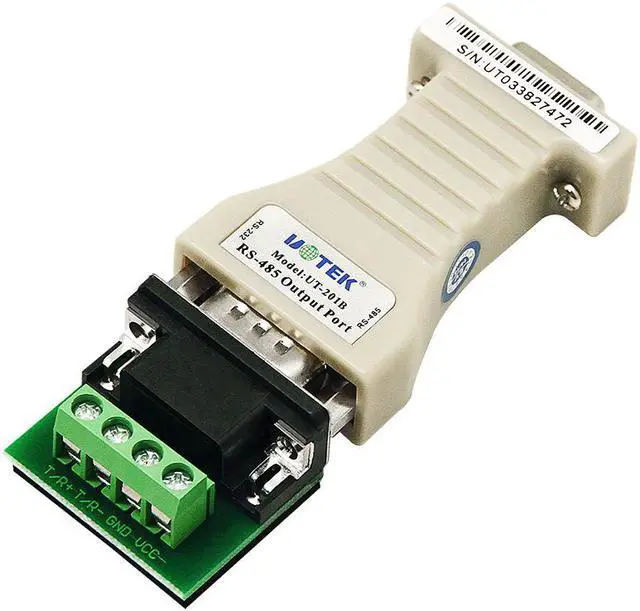

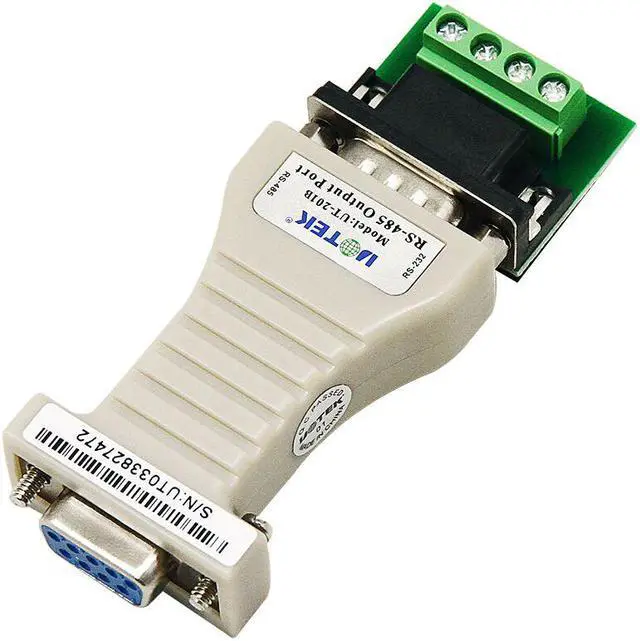

Weastlinks RS232 To RS485 Converter serial port UT-201B giyqxHw
- Interface feature: RS-232C, RS-485 standard interface compatible with EIA TIA.
- Electric interface: RS-232 end DB9 hole connector RS-485 end DB9 needle connector with connection pole.
- Working mode: asynchronism half-duplex (RS-485).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Interface feature: RS-232C, RS-485 standard interface compatible with EIA TIA.
Electric interface: RS-232 end DB9 hole connector RS-485 end DB9 needle connector with connection pole.
Working mode: asynchronism half-duplex (RS-485).
Transmission media: twisted -pair or STP.
Transmission rate: 300- 115.2KBPS.
External discharge dimension: 63mm * 33mm * 17mm.
Working circumstance: - 25 to 70 degree C, relative humidity 5%to95%.
Transmission distance: 1, 200m(RS-485 end) 5m(RS-232 end).
Operating system: DOS/WIN95/WIN98/WIN2000/NI/XP/Linux and so on.
Applies to all communication software, plug and pay.
Max 32 pieces face devices can connect.
Power: Unique serial port charge pump driving technology, no need external power, real 3 wire communication (TXD, RXD, GND), no need initialize serial port.
Auto send/receive data, without external flow control signal (RTS).
serial port rs232.

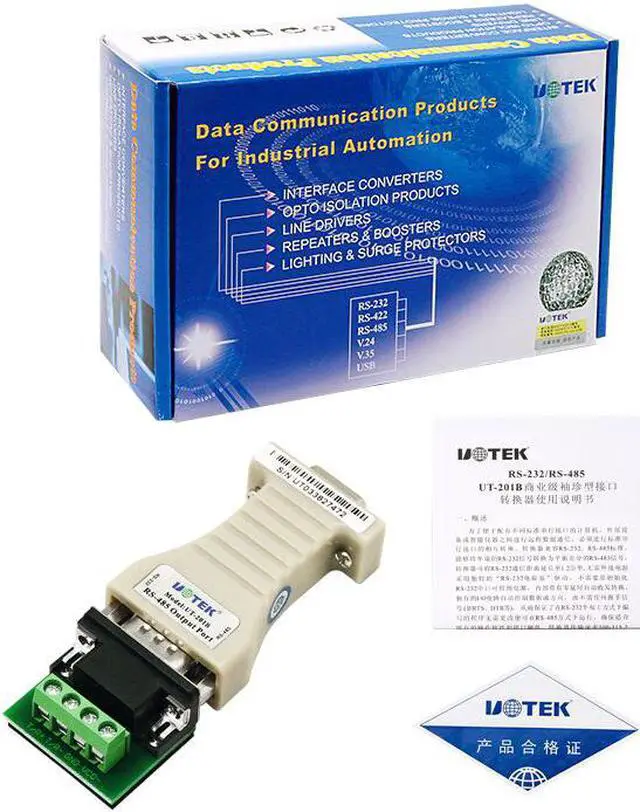

Package Included:
1 x RS232 To RS485 Converter
Interface feature: RS-232C, RS-485 standard interface compatible with EIA TIA.
Electric interface: RS-232 end DB9 hole connector RS-485 end DB9 needle connector with connection pole.
Working mode: asynchronism half-duplex (RS-485).
Transmission media: twisted -pair or STP.
Transmission rate: 300- 115.2KBPS.
External discharge dimension: 63mm * 33mm * 17mm.
Working circumstance: - 25 to 70 degree C, relative humidity 5%to95%.
Transmission distance: 1, 200m(RS-485 end) 5m(RS-232 end).
Operating system: DOS/WIN95/WIN98/WIN2000/NI/XP/Linux and so on.
Applies to all communication software, plug and pay.
Max 32 pieces face devices can connect.
Power: Unique serial port charge pump driving technology, no need external power, real 3 wire communication (TXD, RXD, GND), no need initialize serial port.
Auto send/receive data, without external flow control signal (RTS).
serial port rs232.
Package Included:
1 x RS232 To RS485 Converter
