BUCIER DB9 Breakout Connector to Wiring Solderless Terminal RS232 D-SUB Male Serial Adapter 9pin Port Breakout Board Black Rubber Core with Case,Screwdriver,Nuts

These DB9 male Solderless Connectors are used to terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a Enduring connection for all applications.

DB9 male Connector Adapter RS232 Serial Port D-SUB Adapter Plate Breakout Board Solder-Free with Case,Screwdriver,Long Bolts.

Black Rubber Core

Compatible with 3 cable sizes,Cable Hole Dia:5mm/0.2'',6mm/0.23'',7mm/0.27''.

Widely application: computer, industrial control equipment, cash register, tax control machine, automatic control equipment, industrial instrumentation.

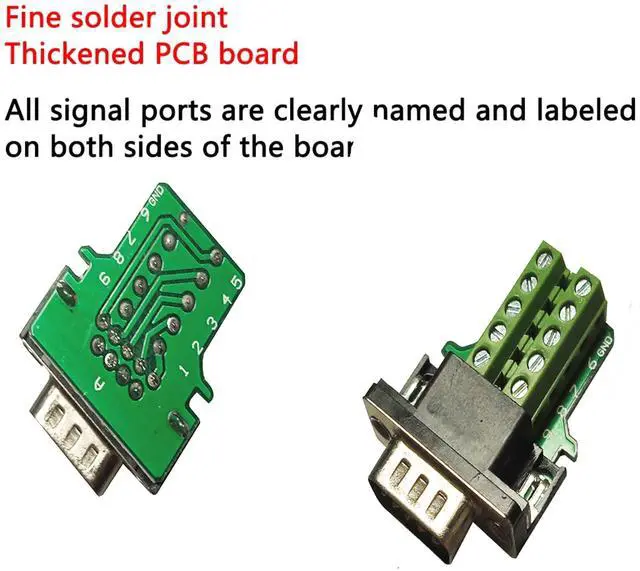

Case can be prevent short circuits,With a fixed circuit board card slot, the connector will not loose before and after installation.

All-copper base, contacted better and more antioxidative,White gold-plated plug, reliable contact, super transmission performance, signal stability increased by 40%.

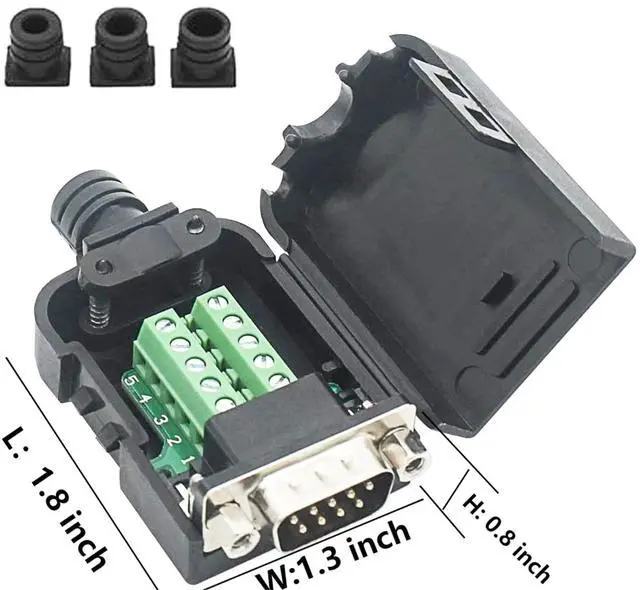

1.External Size (L x W x H): 1.8 x 1.3 x 0.79"/46 x 34 x 20mm.

2.Wire range: 26-16AWG,Compatible with 3 cable sizesCable Hole Dia : 5mm/0.2'' 6mm/0.23'' 7mm/0.27'' 10mm / 0.4".

3.Base: copper base and plastic part

4.Torque: 0.2Nm (1.7Lb-In.)

5.Screws: steel, Cr3+ Zn plated Pin header and cage: Brass

6.Case: ABS+PC

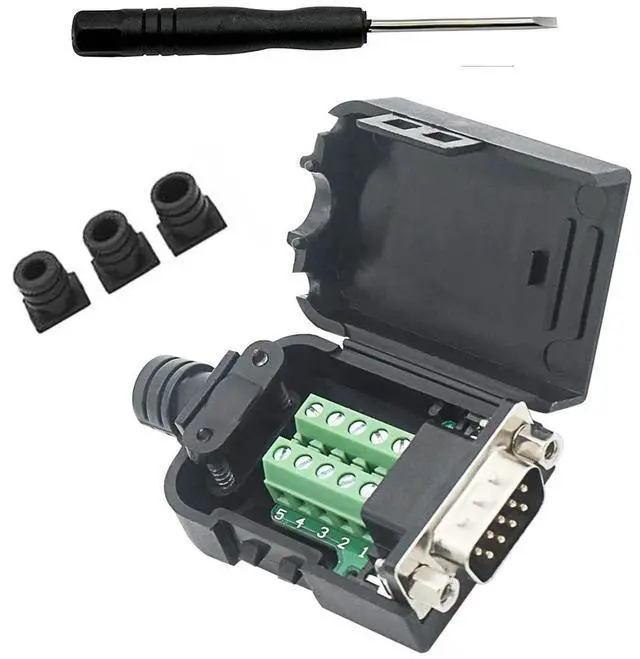

Package included:1 pcs DB9 breakout board male adapter with case;3 sizes of trunking;2pcs Screws,2pcs nuts;with Assembly screwdriver.

Additional Features

• This DB9 breakout connector to wiring solderless terminal adopts environmentally friendly insulated terminal block. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
