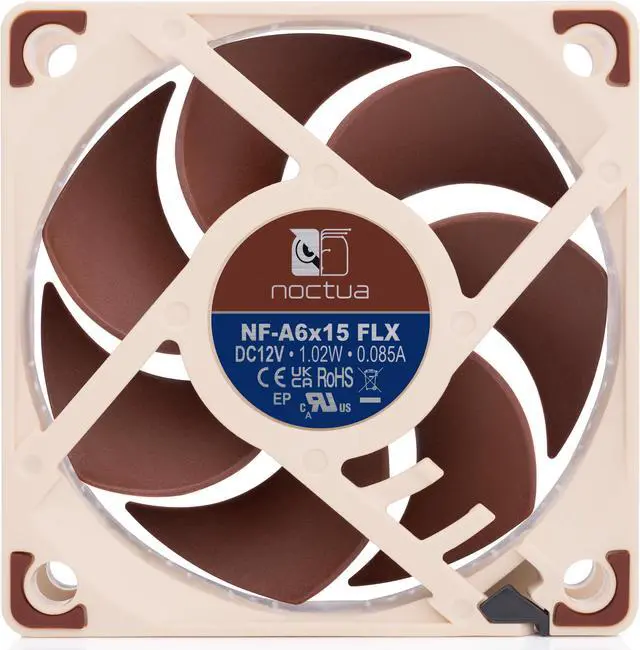

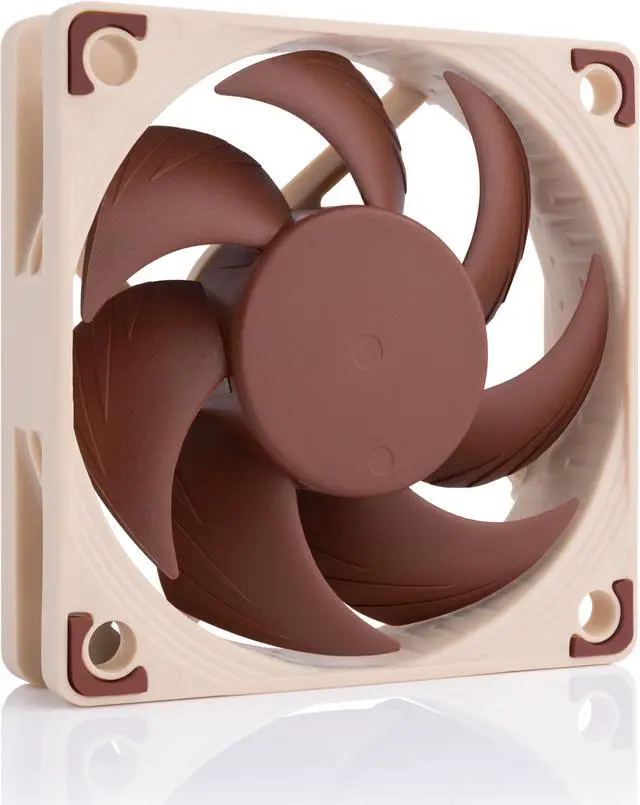

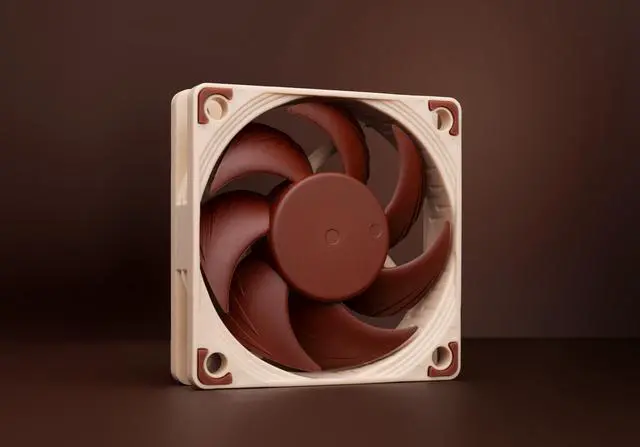

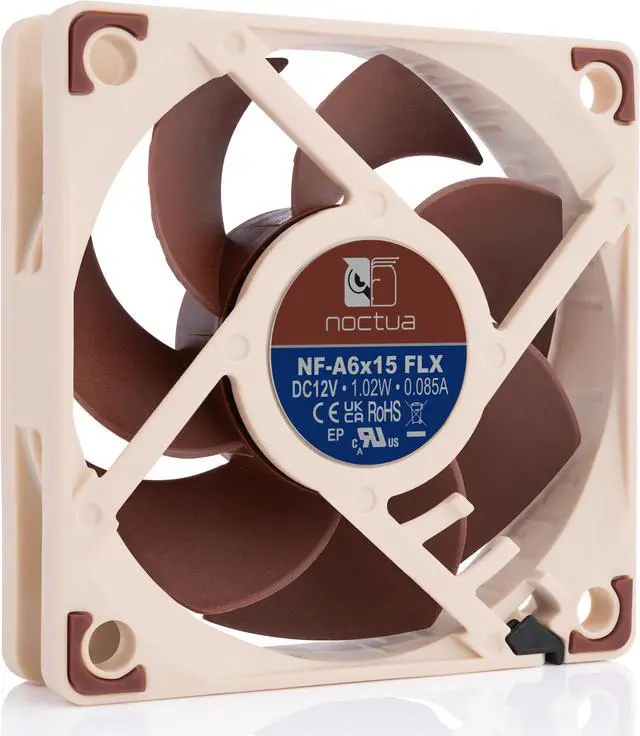

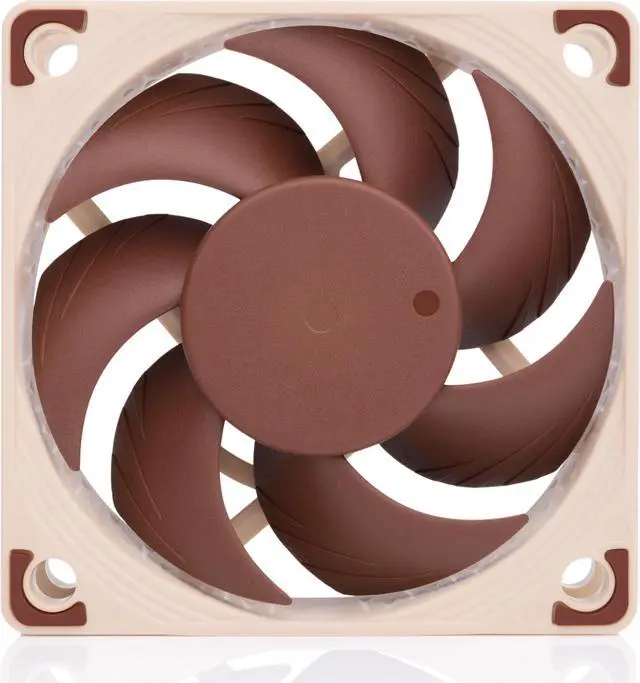

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua's AAO frame, the NF-A6x15 is a highly optimised, premium-quality quiet fan in size 60x15mm. The FLX version provides 3500/3050/2250rpm speed settings via the supplied Low-Noise Adaptors in order to give full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, SSO2 bearing and Noctua's trusted premium quality make it an elite choice for the highest demands.
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and most other mounting mechanisms.
The NF-A6x15 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
The NF-A6x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

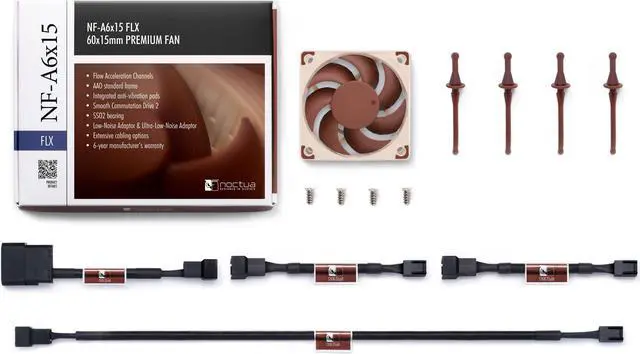

- 4x NA-AV2 anti-vibration mounts
- NA-EC2 30cm extension cable
- NA-AC1 3:4-pin adaptor cable
- NA-RC15 Low-Noise Adaptor (L.N.A.)
- NA-RC13 Ultra-Low-Noise Adaptor (U.L.N.A)
- Fan screws
| Products | ||||
|---|---|---|---|---|
| Connector | 4-pin PWM | 3-pin | 4-pin PWM | 3-pin |
| Voltage | 12V | 12V | 5V | 5V |
| RPM | 3500 RPM | 3500 RPM | 3500 RPM | 3500 RPM |
| RPM with L.N.A. | 3050 RPM | 3050 RPM | - | - |
| RPM with U.L.N.A. | - | 2250 RPM | - | - |
| Acoustical Noise | 19,8 dB(A) | 19,8 dB(A) | 19,8 dB(A) | 19,8 dB(A) |
| Acoustical Noise with L.N.A. | 16,5 dB(A) | 16,5 dB(A) | - | - |
| Acoustical Noise with U.L.N.A. | - | 7,8 dB(A) | - | - |
| Size | 60x60x15 mm | 60x60x15 mm | 60x60x15 mm | 60x60x15 mm |
