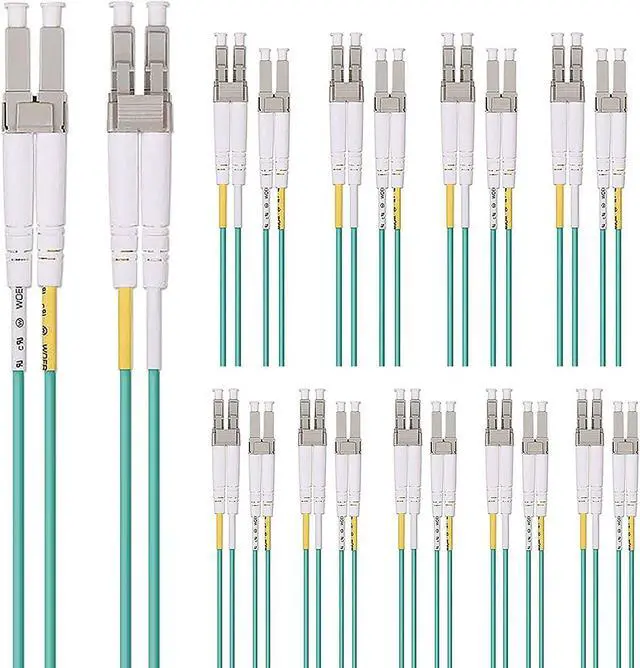

10Gtek Fiber Optic Cable - LC to LC OM3 10Gb/Gigabit Multi-Mode Jumper Duplex 50/125m LSZH Fiber Optic Cord for SFP Transceiver, Aque, 2-Meter(6.6-ft) 10 Pack 6.6 ft.
- A MANUFACTURER - 14 years ISO certified manufacturer, assembly SFP transceiver, fiber patch cords, media converter and networking system.
- HIGH QUALITY MATERIALS - PVC/LSZH fiber cable; Insertion loss fiber core; Zirconia ceramic ferrules; Aramid inside optical cable; High temperature resistant connector.

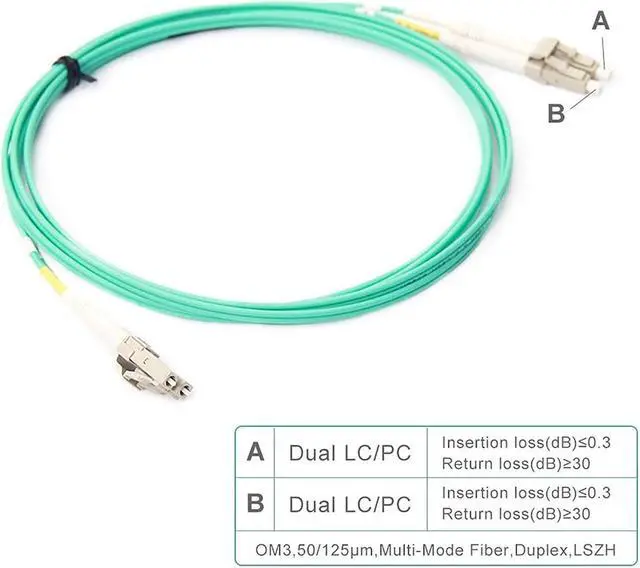

- RELIABILITY TESTING - 100% insertion loss test; MMF: Insertion loss0.3(dB), Return loss35(dB).
- STANDARDS COMPLIANT - TIA/EIA 568-C.3 / 604-10 / 492AAAA, IEC60793-2-10 A1b, CE and RoHS.

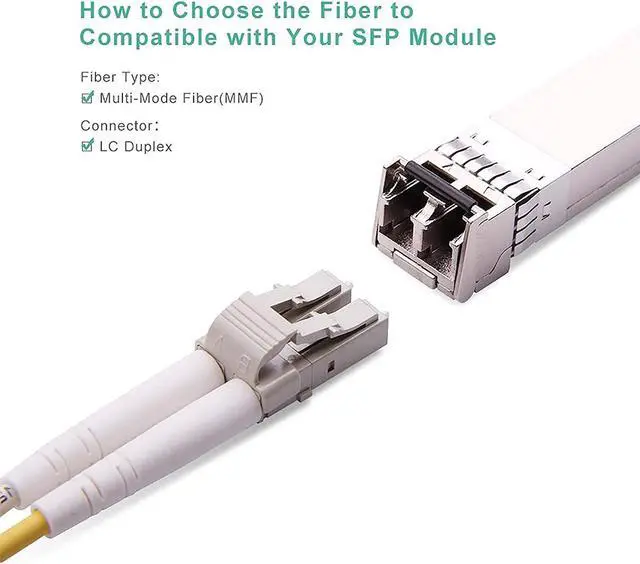

- WIDE APPLICATION - works with all brands of multimode SFP transceivers and fiber optic networks.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10Gtek® LC-LC Fiber Patch Cord, OM3 Multi-mode Duplex, LSZH, 2-Meter(6.5ft).
10 Gigabit Performance for Critical Connections
These fiber cords are OM3 rated for the extreme demands of SAN networks. They are precision factory tested for insertion and return loss to ensure transmission performance per TIA-568-C.3 specifications. The combination of LC connectors in a protective yoke, strain relief boots and zirconia ceramic ferrules provides a dependable, low-loss performance.
Bend Insensitive Engineering

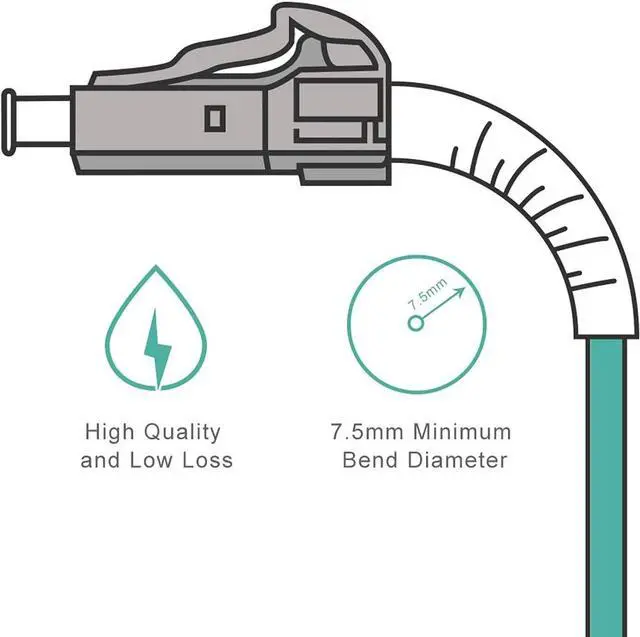

BEND INSENSITIVE DESIGN allows for a 7.5mm bending radius that is 4X more flexible than standard 50 micron fiber cables. Bend insensitive multimode fiber (BIMMF) provides greater flexibility in tight spaces or long cable runs with multiple bends.
Application:

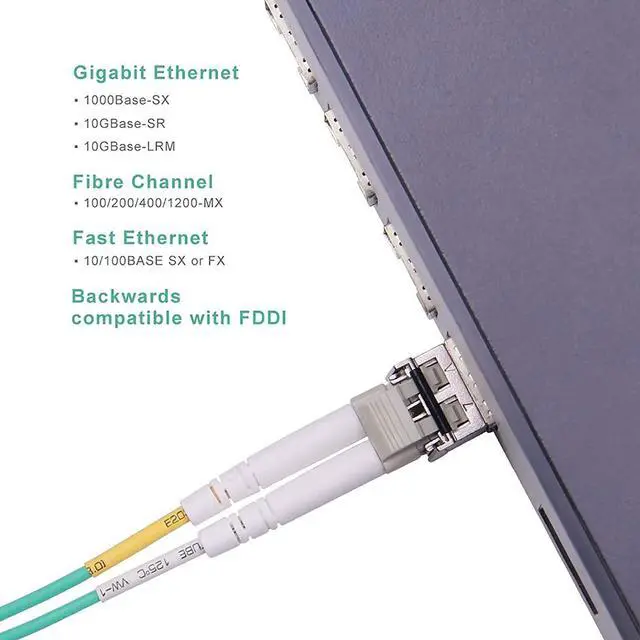

OM3 classification rating operates with Gigabit Ethernet 1000Base-LX, 1000Base-SX, or 10GBase-S/LR4/LRM, and Fibre Channel 100/200/400/1200-MX; Backwards compatible with FDDI, and Fast Ethernet 10/100BASE SX or FX.
Specifications:
Connectors: LC to LC
Core: 50 um
Cladding: 125 um
Jacket: LSZH
OD: 2.0mm
Classification: OM3
Wavelengths: 850 and 1300nm
Type: Bend-Insensitive Multimode (BIMMF)
Ferrule Material: Ceramic
Polish: PC
Compliance: TIA 568-C.3 / 604-10 / 492AAAC, UL 910, CE, RoHS
10 Gigabit Performance for Critical Connections
These fiber cords are OM3 rated for the extreme demands of SAN networks. They are precision factory tested for insertion and return loss to ensure transmission performance per TIA-568-C.3 specifications. The combination of LC connectors in a protective yoke, strain relief boots and zirconia ceramic ferrules provides a dependable, low-loss performance.
Bend Insensitive Engineering
BEND INSENSITIVE DESIGN allows for a 7.5mm bending radius that is 4X more flexible than standard 50 micron fiber cables. Bend insensitive multimode fiber (BIMMF) provides greater flexibility in tight spaces or long cable runs with multiple bends.
Application:
OM3 classification rating operates with Gigabit Ethernet 1000Base-LX, 1000Base-SX, or 10GBase-S/LR4/LRM, and Fibre Channel 100/200/400/1200-MX; Backwards compatible with FDDI, and Fast Ethernet 10/100BASE SX or FX.
Specifications:
Connectors: LC to LC
Core: 50 um
Cladding: 125 um
Jacket: LSZH
OD: 2.0mm
Classification: OM3
Wavelengths: 850 and 1300nm
Type: Bend-Insensitive Multimode (BIMMF)
Ferrule Material: Ceramic
Polish: PC
Compliance: TIA 568-C.3 / 604-10 / 492AAAC, UL 910, CE, RoHS
