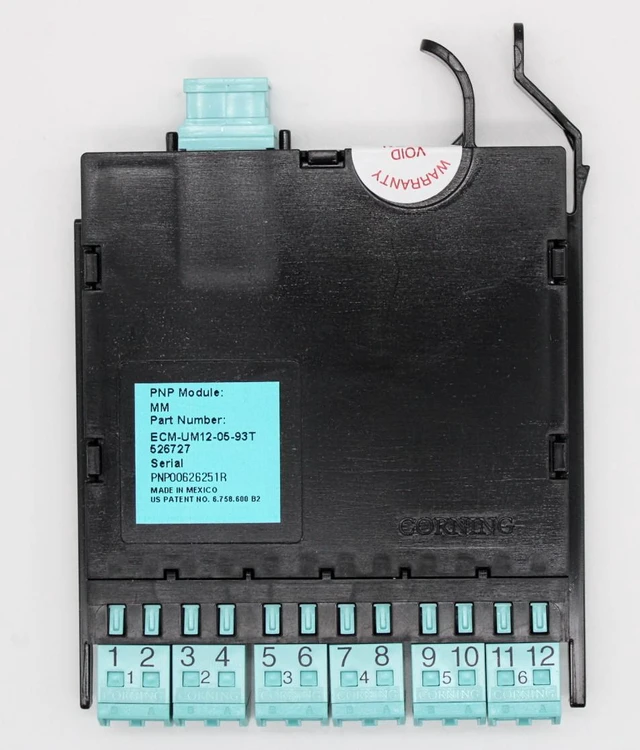

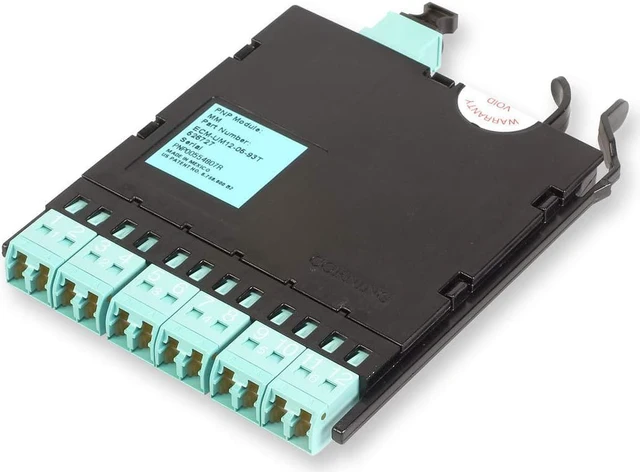

    Corning ECM-UM12-05-93T 12 Fiber Pretium EDGE® LC Duplex to MTP® Connector Module, 50 µm multimode (OM3)

    REFURBISHED Product Type
    Be the first to review this product...
    • Features and Benefits
    • Connector Modules
    • Allow for fiber modularity while offering both front- and rear-loading capability
    • Shuttered modules
    • Create one-hand operation while eliminating need to keep up with dust caps
    • General Specifications
    • Application: Data Center LAN/SAN
    • Product Type: Panels & Modules
    • Fiber Category: 50 µm MM (OM3)
    • Design - Connector A
    • Connector Type MTP® (pinned)
    • Ferrule Composite
    • Design - Connector B
    • Connector Type LC Uniboot
    • Ferrule Ceramic
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now

    Corning EDGE and Pretium EDGE Modules

    MTP trunk connectivity to LC duplex connections

    These 12-fiber modules interface compatible MTP trunk connections with LC duplex jumper connections in the EDGE system. Choose OS2 singlemode, OM3 or OM4 by exact module number. Match the MTP pin configuration, fiber type and system polarity before installation.

    MODEL REFERENCE
    ECM-UM12-04-89G: 12-fiber EDGE module; MTP to LC duplex; OS2 singlemode
    ECM-UM12-05-93Q: 12-fiber Pretium EDGE module; LC duplex to pinned MTP; OM4 50 micrometer multimode
    ECM-UM12-05-93T: 12-fiber Pretium EDGE module; LC duplex to pinned MTP; OM3 50 micrometer multimode

    Model reference

    Match the exact part number

    Use the exact model listed on this product page to identify the offered component and its package configuration.

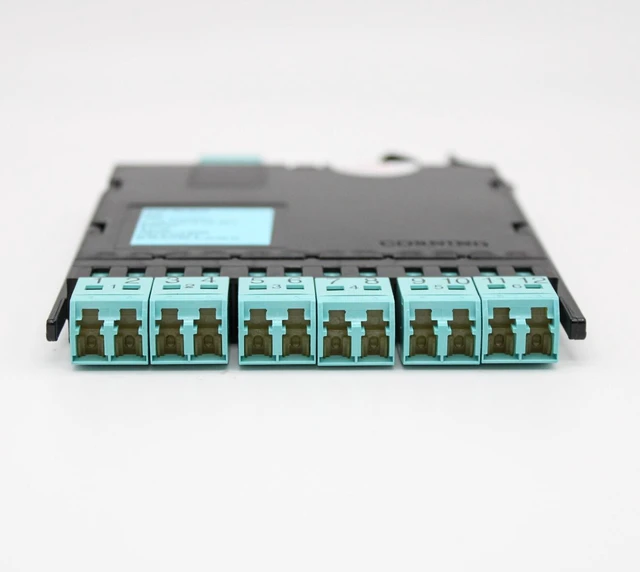

    The Pretium EDGE® modules provide the interface between the MTP® on the trunk and the LC duplex jumpers that will then connect directly into the electronics. The LC duplex adapters feature hinged VFL -compatible shutters that move up and out of the way when the connector is inserted. Specially designed indents in the shutters ensure that the end faces of the connectors are never
    touched. These shutters replace the standard dust caps that typically once removed are never replaced, exposing the interior end faces to dust particles and possible damage.
