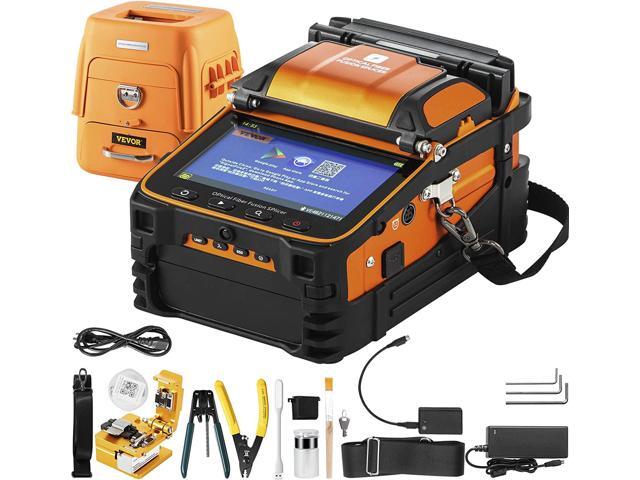

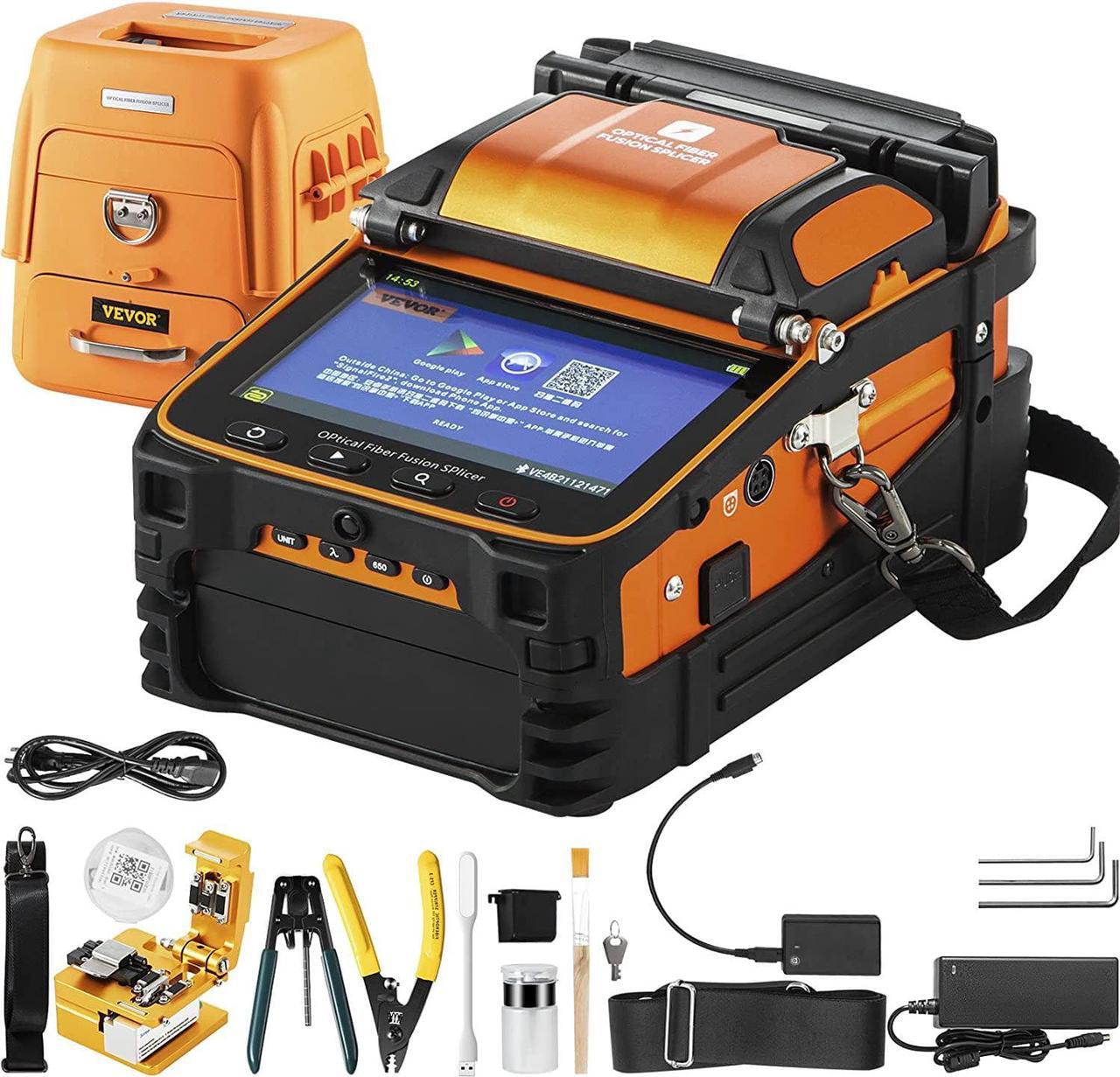

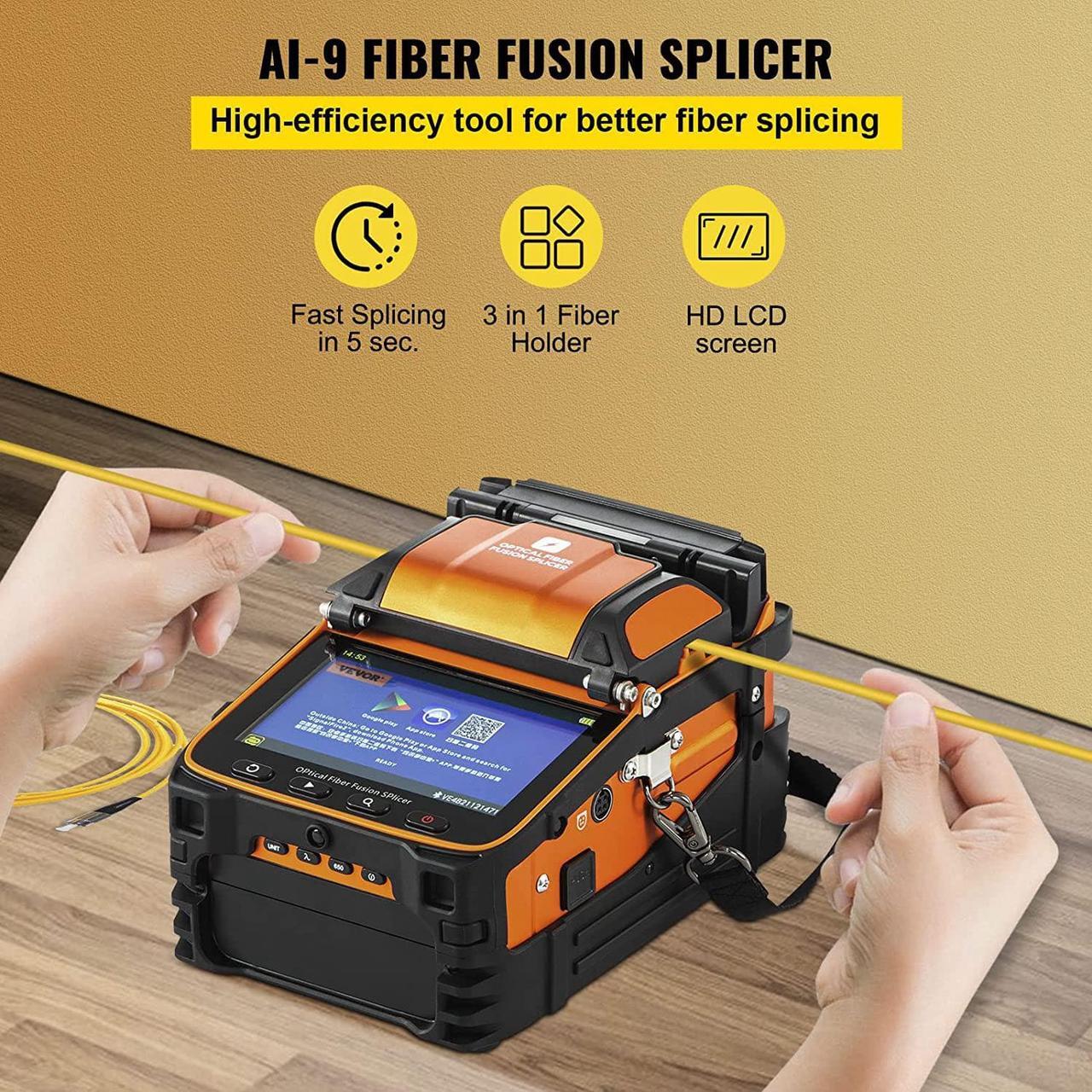

AI-9 Fiber Fusion Splicer with 5 Seconds Splicing Time Melting 15 Seconds Heating 7800mah Fusion Splicer Machine Optical Fiber Cleaver Kit for Optical Fiber & Cable Projects
- 3 IN 1 FIBER HOLDER- SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable. Applicable Fibers:SM(G.652&G.657);MM(G.651);DS(G.657);NZDS(G.655). Splice Loss: 0.025dB (SM), 0.01dB(MM) 0.04dB (DS/NZDS). Coating Diameter:100-1000m, Cladding Diameter:80-150m.
- 5 TFT DISPLAY- It adopts 5-inch 800X480 high-resolution screen, and the operation graphics are simple and intuitive which ups to 300 times focus amplification. Once splicing times reach from 48000-60000 times, free to change a new machine
- BUILT-IN POWER METER & VFL- Using the latest core alignment technology with auto-focus and six motors. It is more precise and less splicing loss than cladding alignment technology. Effectively measure connection loss,verify continuity and help assess fiber link transmission quality.
- 7800MAH LITHIUM BATTERY- 7800 mAh high-capacity lithium battery, charging time 3.5 hours,continuous splicing and heating about 200 times.
+
+
Overview
Specs
Reviews
USED BROADLY- This Intelligent and convenient machine can be connected to mobile app, and
supports ten languages: English, French, Russia, Italian, Portuguese, polish, Spanish, Thai, Arabic. It is especially suitable for optical fiber and cable projects, maintenance scientific research, railway, petrochemical, electric power, military and public security and other communications fields.

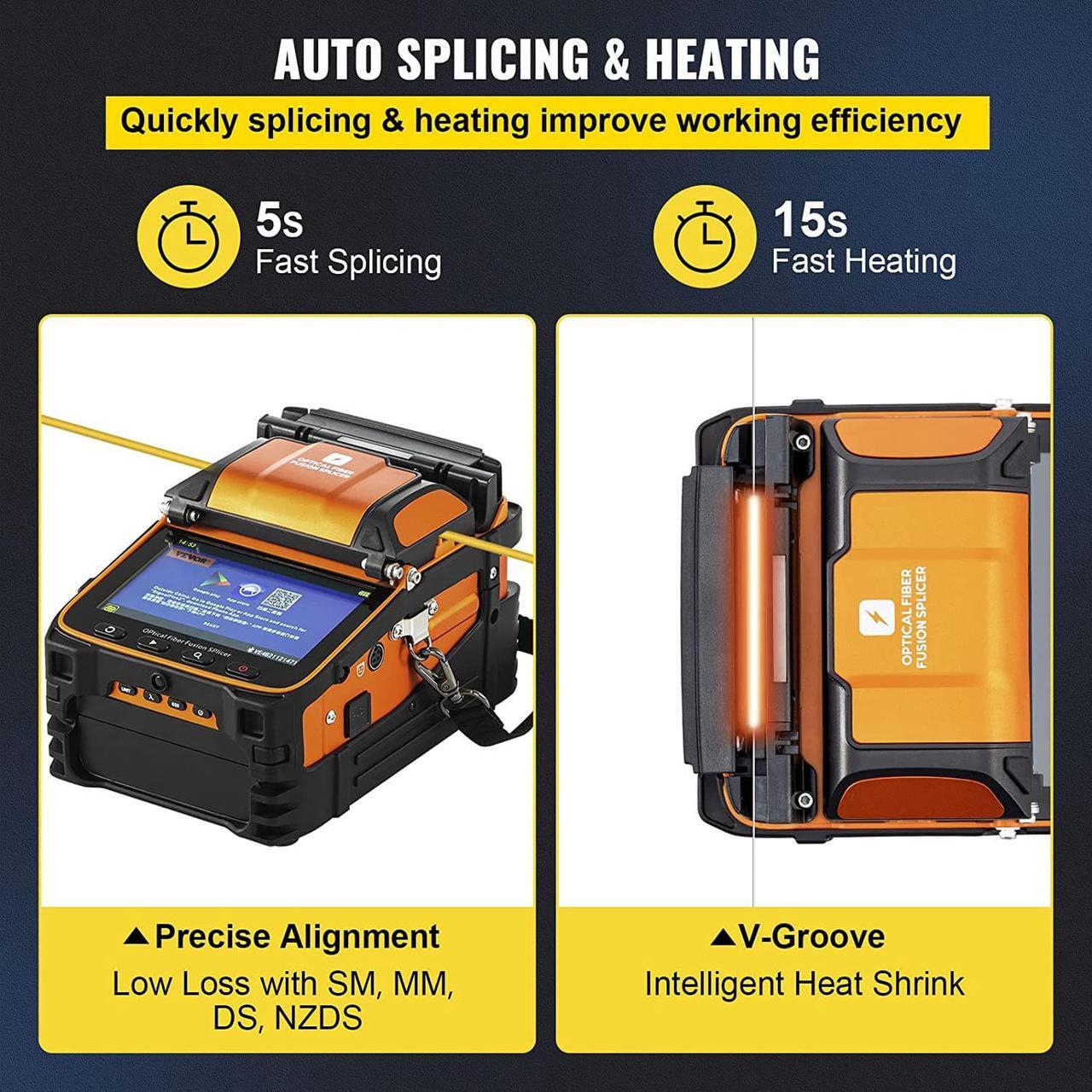

Excellent Splicing Performance
The fiber fusion splicer can complete the whole process of fiber fusion splicing automatically in just 5 seconds, heating in 15 seconds. The high-speed image processing technology unique precision positioning technology is applied while working.

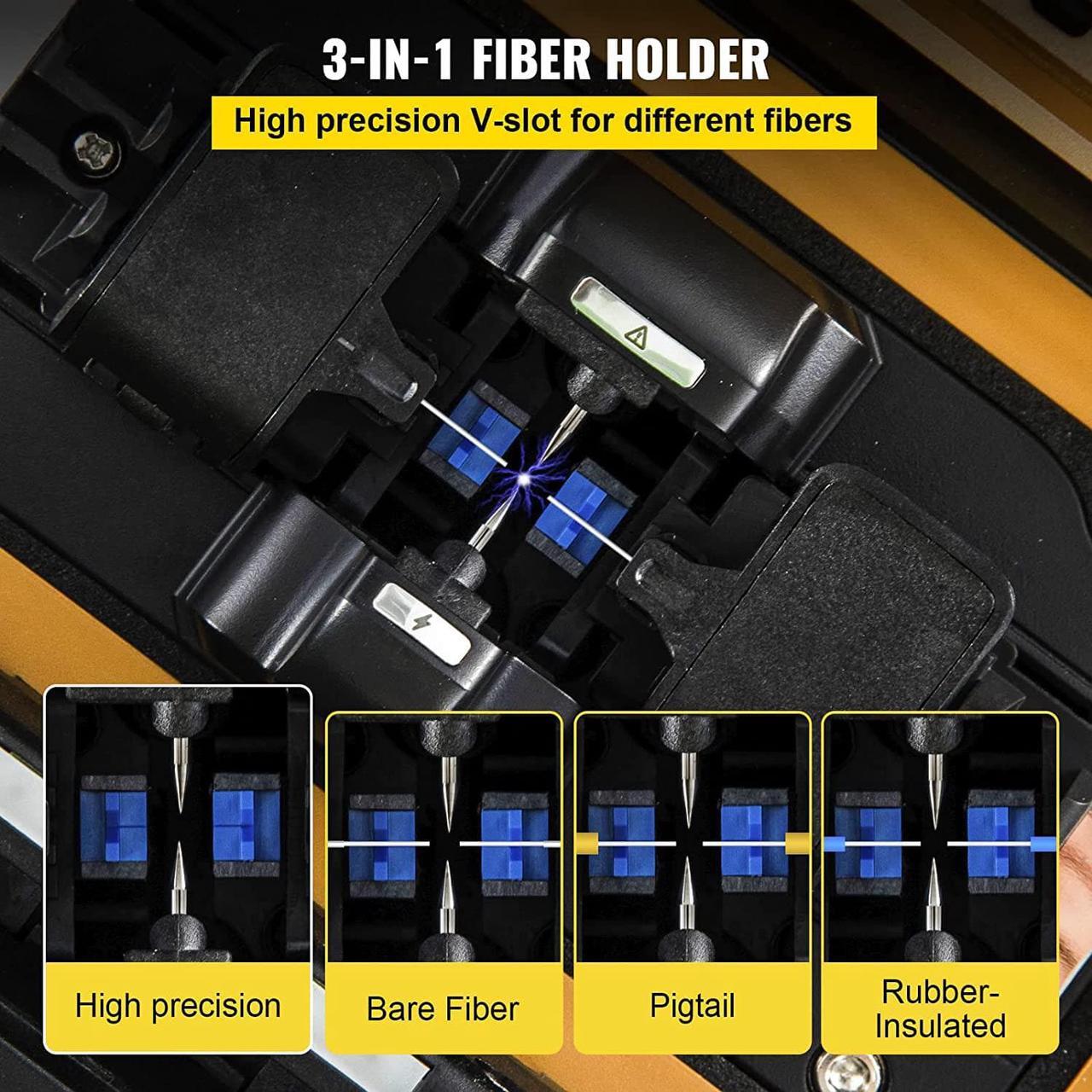

3 in 1 Fiber Holder
SM, MM, bare fiber, pigtail, rubber-insulated, multi-fiber cable.
Applicable Fibers: SM(G. 652&G. 657); MM(G. 651); DS(G. 657); NZDS(G. 655). It is fully qualified with FTTH projects, security monitoring, and other fiber cable splicing projects.
Built-in Power Meter & VFL
The built-in power meter and VFL can be used in effectively measuring connection loss, verifying continuity and assessing fiber link transmission quality. Also, built-in design do not take up place.
Fusion Splicer
Fusion Splicer
Fusion Splicer

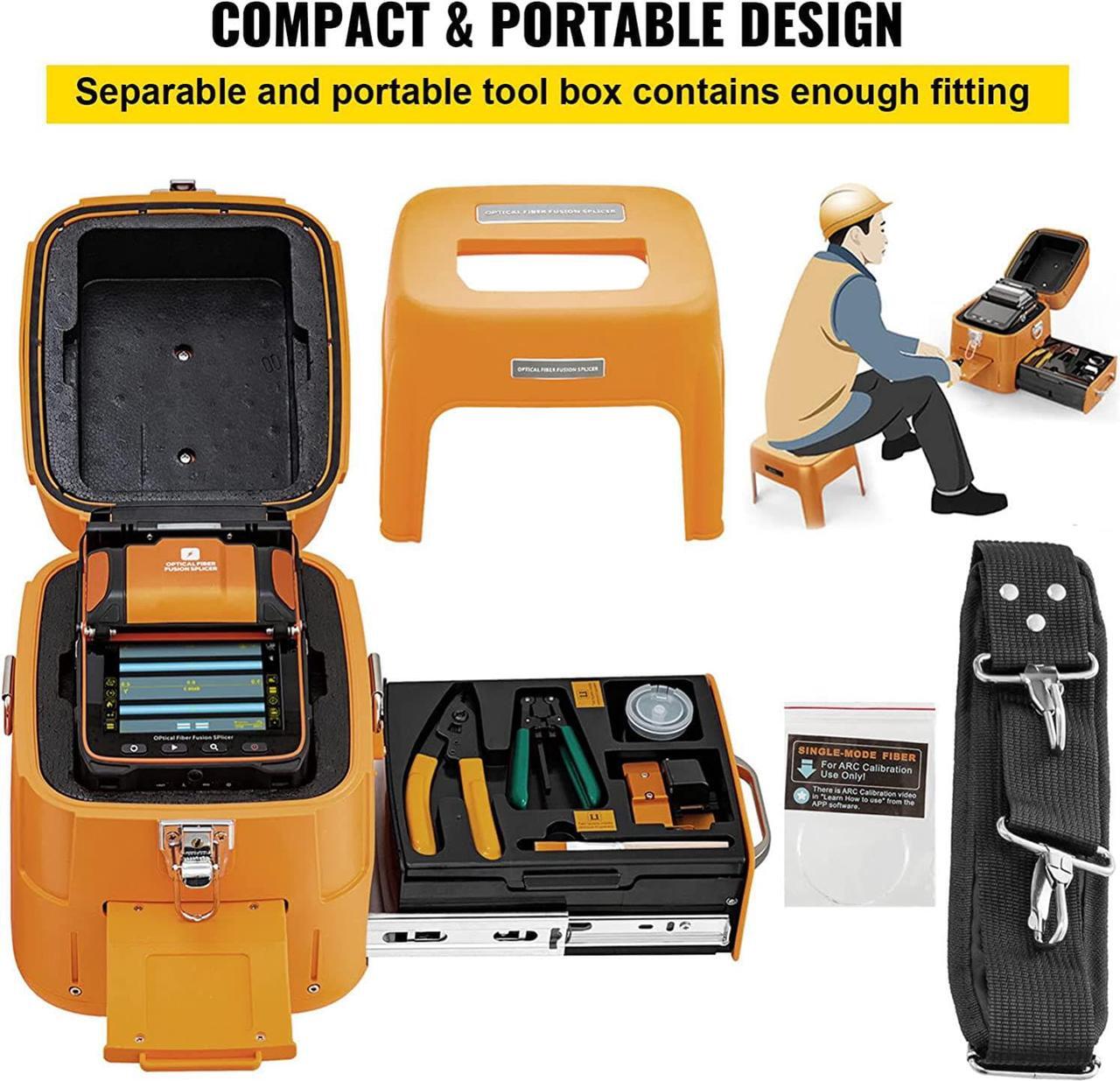

Compact & Portable
The toolbox comes with a stool to facilitate the construction workers, weight-bearing 100 kg. Do not need to take out the splicer machine from the toolbox while working.

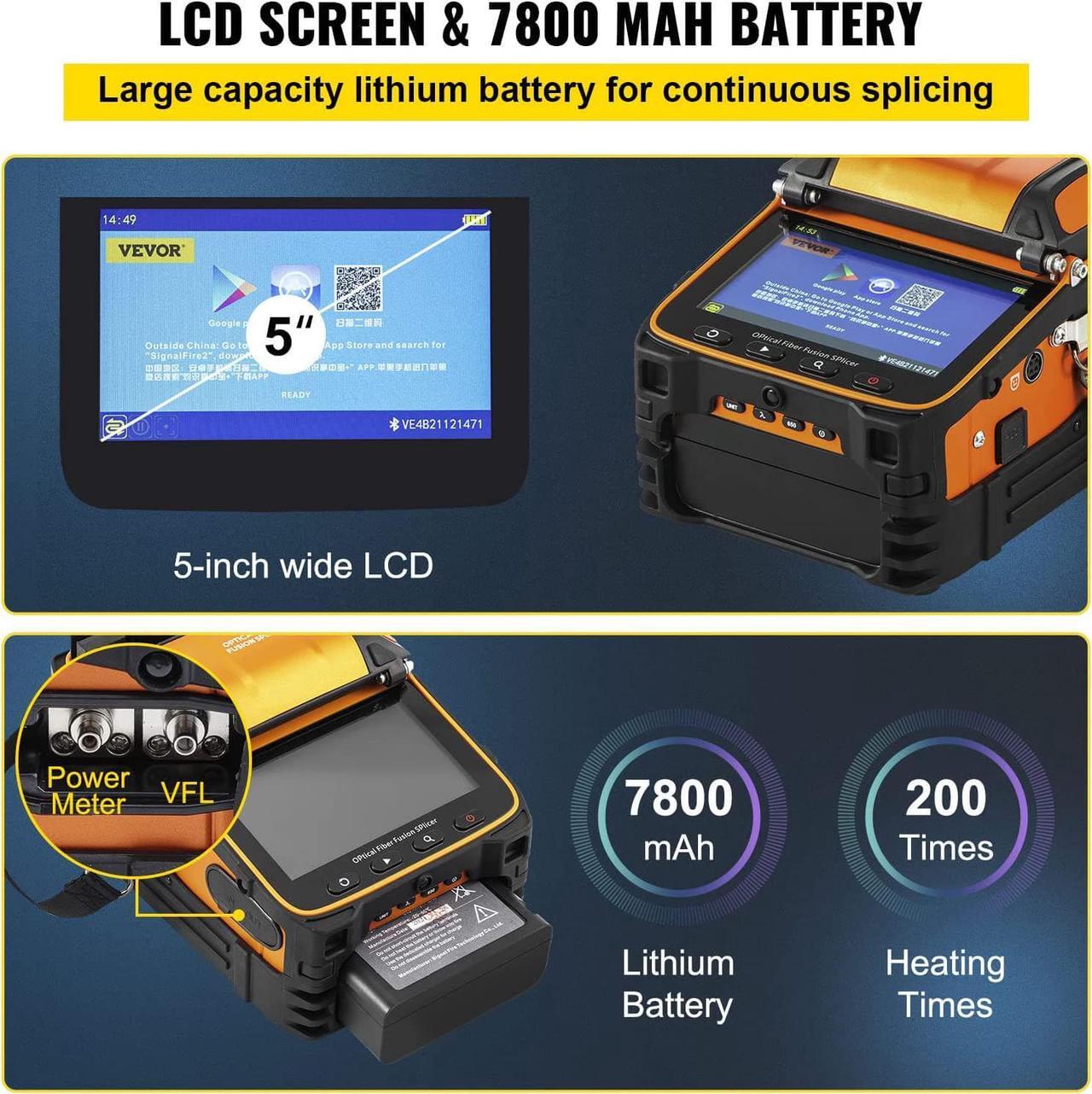

Clear LCD & 7800 mAh Battery
5-inch high-resolution LCD screen. The machine can easily and clearly observe the optical fiber. 7800 mah high-capacity lithium battery can continuously splice and heat about 200 times.

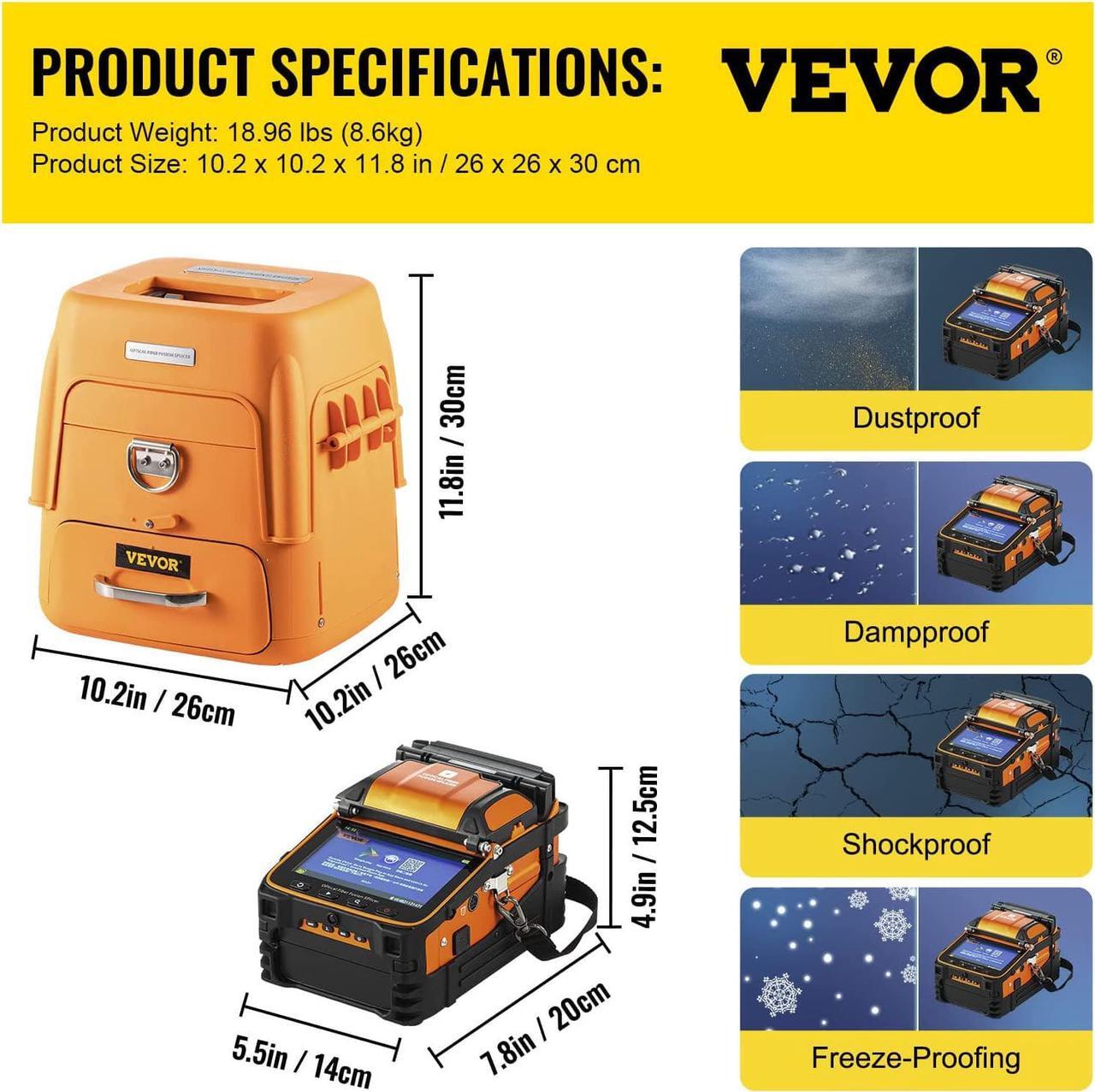

Sturdy Construction
Sturdy structures meet different working area requirements, dust-proof, shock-proof, and freeze-proof. Fiber optic fusion splicer is especially suitable for optical fiber and cable projects, maintenance scientific research, and teaching in telecommunications.
Fiber alignment: Core/cladding alignment / Manual alignment
Splicing time: 5S
Heating time: 15S Automatic heating (Preheating)
Construction Lighting: Built in high brightness, wide range of lights, easy to operate at night
Screen: 5 inch TFT Display
Focus mode: Six motors Auto focus
Applicable Fibers: SM(G. 652&G. 657); MM(G. 651); DS(G. 657); NZDS(G. 655)
Splice Loss: 0.025 dB (SM), 0.01 dB (MM) 0.04 dB (DS/NZDS)
Power: Input AC100-240V 50 / 60HZ, Output DC 13.5V / 4.8A
Package Content
1 x Fiber Fusion Splicer
1 x Fiber Cleaver
1 x Yellow Box
1 x Accessory Kit
supports ten languages: English, French, Russia, Italian, Portuguese, polish, Spanish, Thai, Arabic. It is especially suitable for optical fiber and cable projects, maintenance scientific research, railway, petrochemical, electric power, military and public security and other communications fields.
Excellent Splicing Performance
The fiber fusion splicer can complete the whole process of fiber fusion splicing automatically in just 5 seconds, heating in 15 seconds. The high-speed image processing technology unique precision positioning technology is applied while working.
3 in 1 Fiber Holder
SM, MM, bare fiber, pigtail, rubber-insulated, multi-fiber cable.
Applicable Fibers: SM(G. 652&G. 657); MM(G. 651); DS(G. 657); NZDS(G. 655). It is fully qualified with FTTH projects, security monitoring, and other fiber cable splicing projects.
Built-in Power Meter & VFL
The built-in power meter and VFL can be used in effectively measuring connection loss, verifying continuity and assessing fiber link transmission quality. Also, built-in design do not take up place.
Fusion Splicer
Fusion Splicer
Fusion Splicer
Compact & Portable
The toolbox comes with a stool to facilitate the construction workers, weight-bearing 100 kg. Do not need to take out the splicer machine from the toolbox while working.
Clear LCD & 7800 mAh Battery
5-inch high-resolution LCD screen. The machine can easily and clearly observe the optical fiber. 7800 mah high-capacity lithium battery can continuously splice and heat about 200 times.
Sturdy Construction
Sturdy structures meet different working area requirements, dust-proof, shock-proof, and freeze-proof. Fiber optic fusion splicer is especially suitable for optical fiber and cable projects, maintenance scientific research, and teaching in telecommunications.
Specifications
Fiber alignment: Core/cladding alignment / Manual alignment
Splicing time: 5S
Heating time: 15S Automatic heating (Preheating)
Construction Lighting: Built in high brightness, wide range of lights, easy to operate at night
Screen: 5 inch TFT Display
Focus mode: Six motors Auto focus
Applicable Fibers: SM(G. 652&G. 657); MM(G. 651); DS(G. 657); NZDS(G. 655)
Splice Loss: 0.025 dB (SM), 0.01 dB (MM) 0.04 dB (DS/NZDS)
Power: Input AC100-240V 50 / 60HZ, Output DC 13.5V / 4.8A
Package Content
1 x Fiber Fusion Splicer
1 x Fiber Cleaver
1 x Yellow Box
1 x Accessory Kit
