Fiber Tester 1310/1550nm 26/24dB with 4.3-inch Touch Screen, 11-in-1 OTDR SM with VFL OPM OLS Event Map RJ45, FC/UPC SC ST LC Connectors Included

This multifunctional Single Mode OTDR integrates over 10 functions, such as auto OTDR, expert OTDR, event map, OPM, OLS, VFL, RJ45 cable tracker, and computer level file management to meet your various test requirements in different occasions.

Key Specification of this OTDR

Dynamic Range of 26/24dB
Event Dead Zone: 2.5 m
ATT Dead Zone: 8m
8G memory card to store over 200000 curves
4000mah Lithium Battery for over 12 hours measuring
4.3 -inch Touch Screen
You can use this OTDR to measure the length, loss, connection quality and other parameters of optical fiber. It is widely used in FTTX, secondary backbone network engineering construction, maintenance and emergency repair test, and production measurement of optical fiber and cable.

QIIRUN
QIIRUN Commitment
As a growing brand, QIIRUN is committed to provide high quality products and services to our valued customers. Our service agents will spare no efforts to provide first class services and technical supports so as to exceed your satisfactions.

We honor our commitments:

Your every purchase is entitled to a 30 days return at no cost from date of purchase for any reason
You can get lifetime technical supports / assistance if needed
Your any questions will be addressed in a timely and professional manner
OTDR Tester OPM VFL Fusion Splicer
Handheld & Lightweight
Size: 173*109*45mm
Weight: 488g (including battery)
Standard Packing
OTDR Tester with battery
FC/UPC LC ST SC Connectors
Data Line*1
RJ45 Wire Tracker*1
AC/DC Charger *1
Built-in 8G TF card (contains software and user manual) *1
Printed User Manual *1
Calibration Report *1
Soft Carry Case with Strap *1
Fiber Endface Inspection Does Not included in this Tester

Multi-functional OTDR Tester
11 in 1 Multi-functional OTDR Tester, your right assistant for optical cable construction, installation and maintenance, project acceptance and on-site repair.

Product Features
Expert OTDR: Professional measurement, curve/list/map are displayed simultaneously
Auto OTDR: no complex settings, one key test
OPM supports CW/270/330/1K/2KHZ frequency identification
VFL and OLS can run in the background, multi task can be operated simultaneously
OLS supports CW/modulation mode output with adjustable output power
Multi-touch support gesture zoom in and out curve
Optical loss test, Insertion loss test
Ultra wide operation temperature
Fiber Optic OTDR Tester Optical Time Domain Reflectometer
Auto OTDR & Expert OTDR

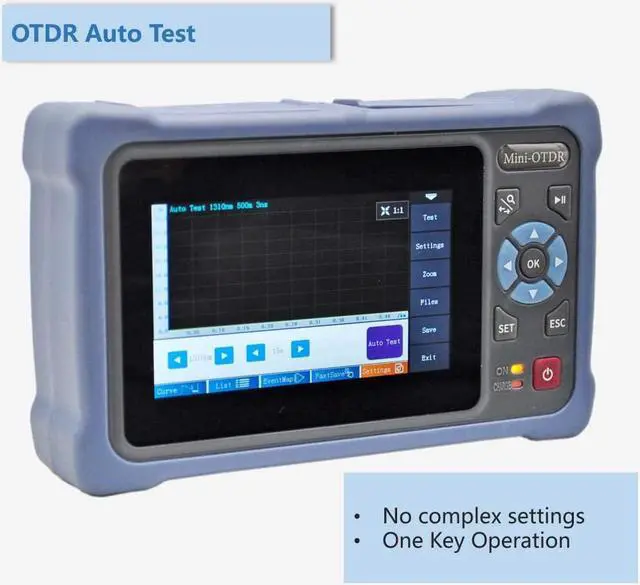

Auto OTDR

You only needs to set the wavelength and measurement time
Other parameters are automatically selected by the instrument to complete the test
Expert OTDR

Parameters such as wavelength, test range and pulse width shall be set
The test results are more accurate by selecting the appropriate measurement parameters in the expert mode
You can zoom in on the curve to see the details of each event

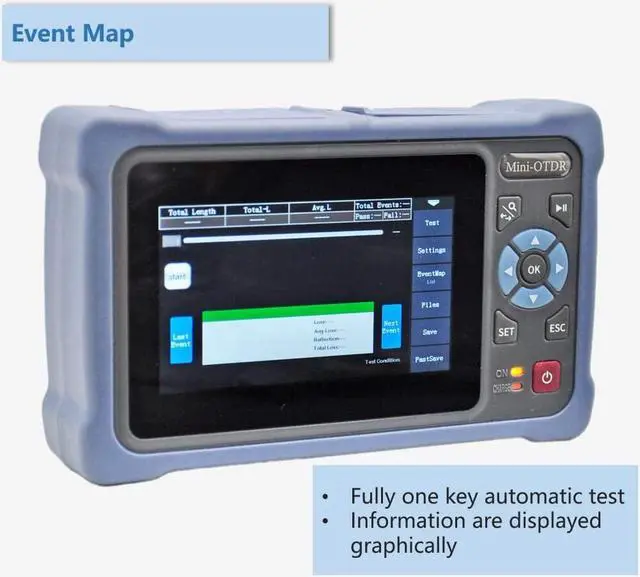

Event Map
The function is fully one key automatic test, and the information such as the length of the optical fiber link to be measured, the type of the joint and the position of the breakpoint are displayed graphically, and the results are clear and easy to understand
Optical Power Meter
It can identify and measure the power of 270/ 330/1k/2kHz frequency laser.

Wave Range: 800-1700nm
Calibration Wave: 850/980/1300/1310/1490/1550/1625/1650nm
Test Range: -70-+10dBm
Resolution: 0.01D b
Uncertainty: ±5%

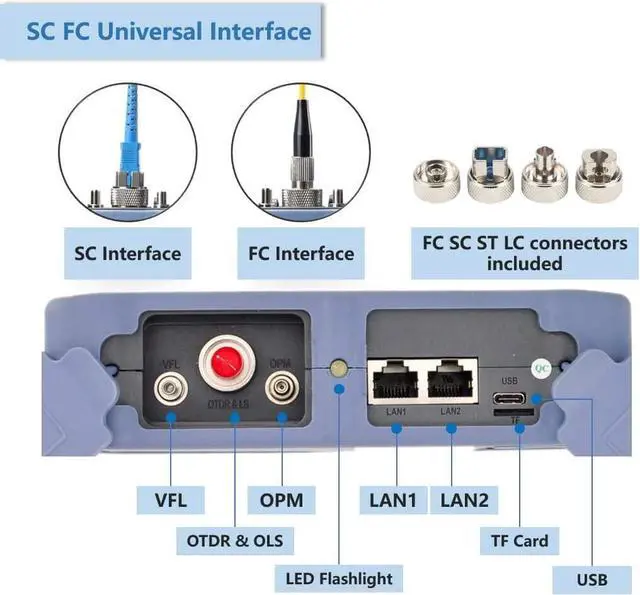

Connector: Universal FC/SC/ST
Visual Fault Locator
It is suitable for the detection of bare optical fiber, optical fiber jumper and other optical fiber which can leak red light, and the near end fault point and high loss section caused by micro bending.

Wavelength: 650nm±20nm
Output Power: 10Mw
Mode: CW/1HZ/2HZ
Connector: FC/UPC (Interchangeable SC, ST)
Optical Light Source
It can output laser with the same wavelength as OTDR function.

There are five working modes: CW, 270Hz, 330hz, 1kHz and 2kHz.

Wavelength: Consistent with OTDR
Laser Type: FP-LD
Output Power: -5dBm
Connector: FC/UPC (Interchangeable SC, ST)
File Management
Computer-level file management.

All the test curves are saved in the standard SD card of the instrument.

You can open, delete and rename files

Optic Fiber OTDR Tester OTDR single mode

OPM VFL OLS OTDR SM OTDR Tester

Fiber Optic OTDR Tester, OTDR Fiber Optic, Fusion Splicer

Large Battery
This OTDR Tester is equipped with

4000mah high-density polymer lithium battery
intelligent power saving management
and thus

measuring time of more than 12 hours
standby time is over 20 hours
supports power supply and charging as a power bank

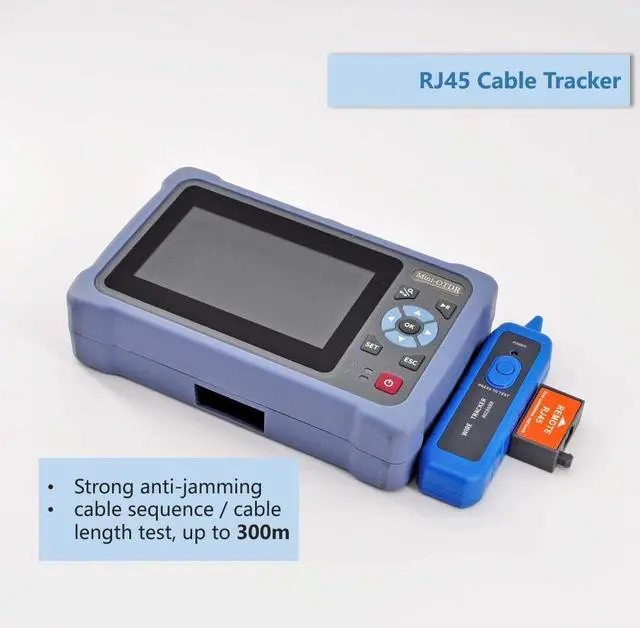

RJ45 Cable Tracking
LAN 1 is for RJ45 Cable Tracking and LAN 2 is for RJ45 Sequence/Length. Please do connect correctly to avoid damages.

RJ45 cable tracker of digital radar, stronger anti-jamming ability
RJ45 cable sequence/ cable length test, up to 300m

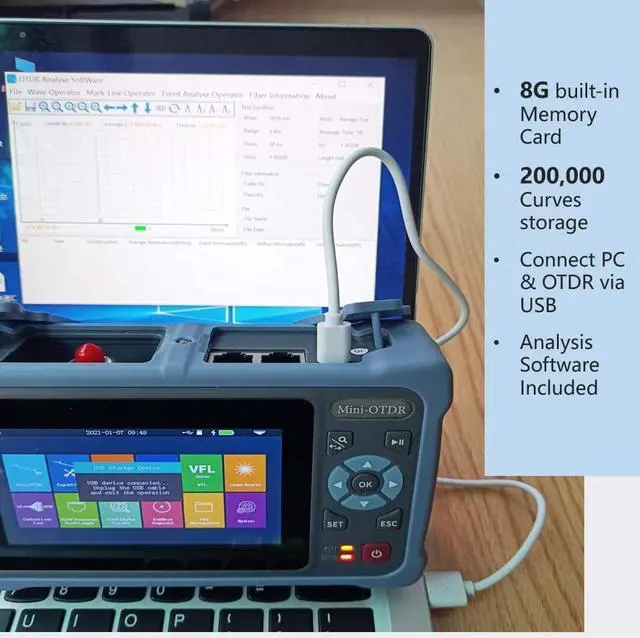

Analysis Software
Analysis Software is included in the built-in 8G TF card. You can further analyizing or printing datas.

Data format is standard SOR. format

Connect OTDR Tester and computer by USB cable
Open fold named "OtdrAnaEng"
Open file named "Analyse_OTDR" and install it
