Live Optical Fiber Identifier with Wave Respond 800-1700nm Built in 10mw VFL and Optical Power Meter OPM Functions FTTH Tool

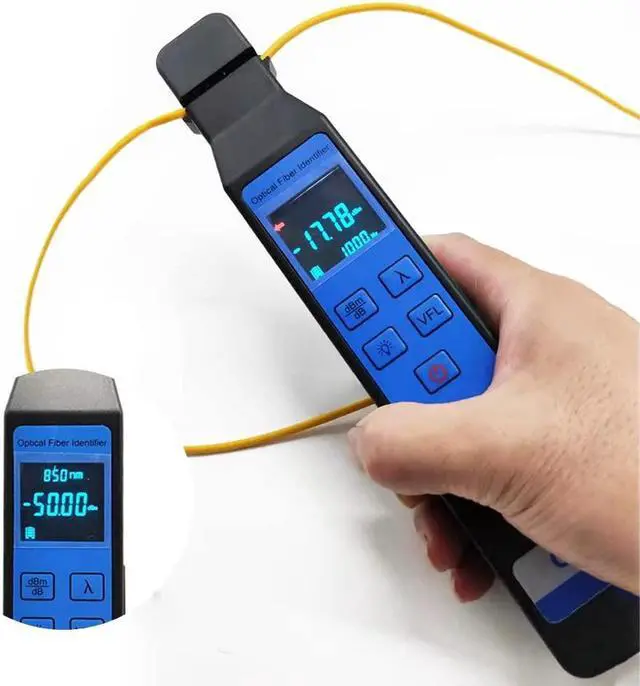

YD-3309D is latest Optical Fiber Identifer, is 3 in 1 functions. Optical Fiber Identifer is an important tool for optical maintenance, which is used for nonderstructive fiber identificaton project. Meanwhile it also has Visual Fail Locator module with fault location function and power meter function.

Using the macro bending technology on line for nondestructive testing. it can measure the signal direction and power and avoid mis-operation resulting in interrupted lines.

----Macro bending measurement. Macro bends are the use of fiber-optic bending leak out when the weak optical signal, optical signal to detect the direction and intensity. Does not damage opticla fiber, without interrupting communications, and durection of 2.5 mm bare fiber, 0.9 mm and 2.5 mm fiber casing tight jumper.

Feature:

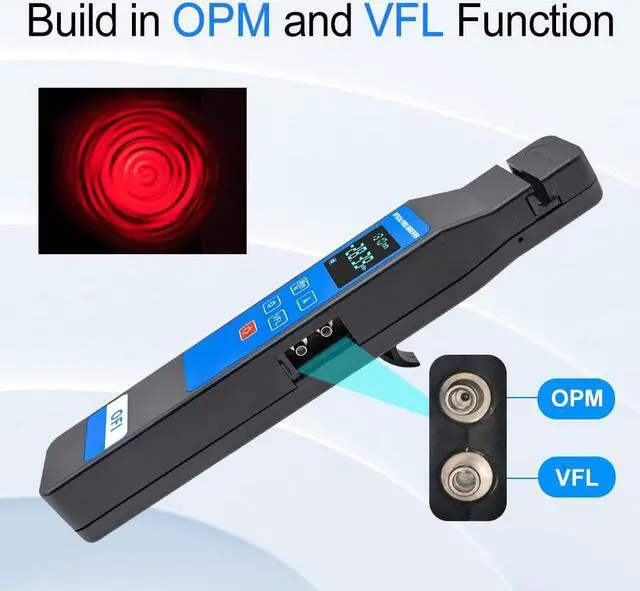

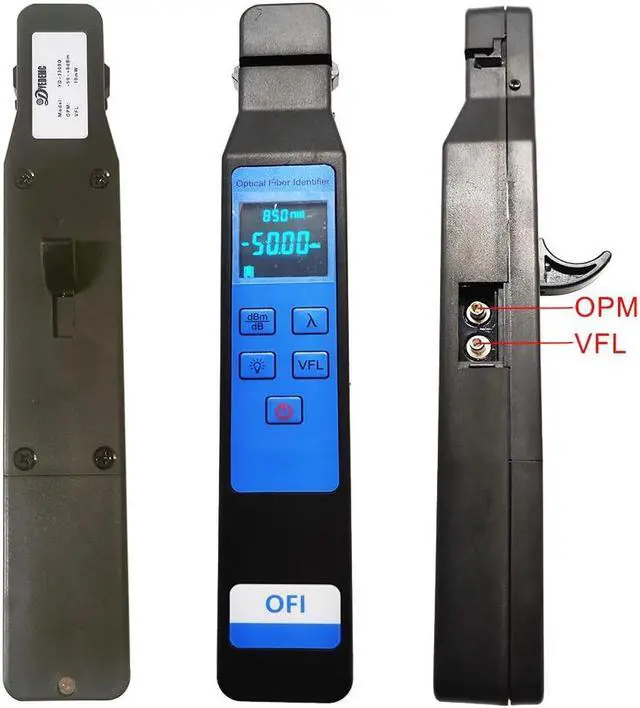

1. Build in 10 mW VFL function.

2. Build in OPM

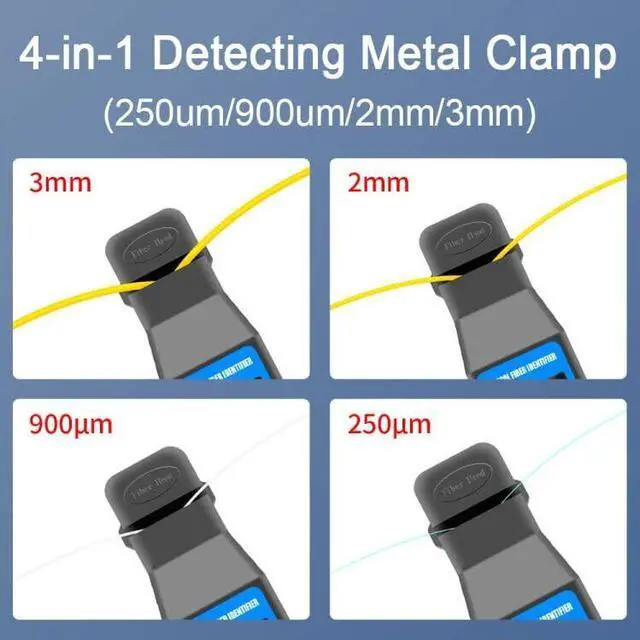

3. Metal gripper, no need to change the adapter.

4. Low battery moniting function.

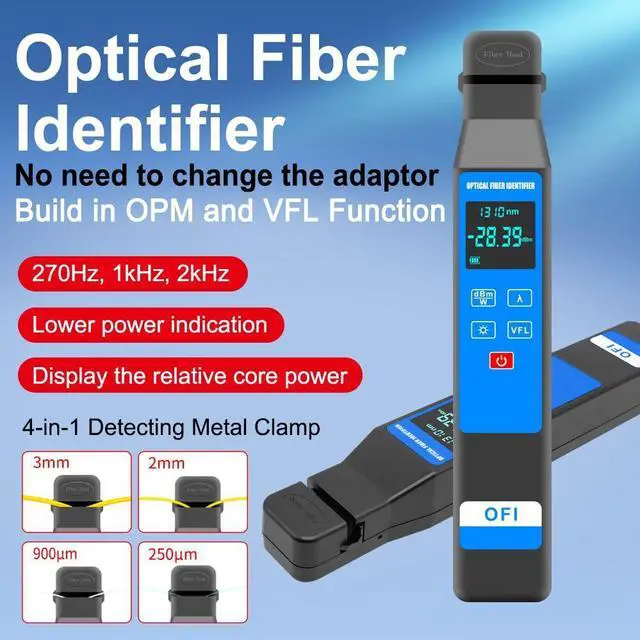

5. Tone identification, optical fiber identifier can detect optical signals in the tone signal fixed load, 270Hz, 1KHz and 2KHz, to identify a specific optical fiber, can quickly find the necessary fiber.
Technical specifications:


1.
Wavelength: 800nm~1700nm
2.
Pass through insertion loss: 250um/90um optical fiber 1.0 dB; 2.0 / 3.0 optical fiber 1.5 dB
3.
Application of optical fiber: 250um/900um/2mm/3mm optical fiber.
4.
Identified signal type: 270Hz/1KHz/2KHz

5.
Display: LED clor screen.

6.
Detector type: 1mm inGaAs
Technical specifications of VFL


1.
Wavelength: 650nm±10nm

2.
Output Power: 10mW
3.
Fiber Port: 2.5 universal connector
Technical specifications of OPM


1.
Wavelength: 800~1700nm

2.
Calibration certificate: 850/1300/1310/1490/1550/1625nm

3.
Measurement rang: -50~+26dBm

4.
Connector type: 2.5 universal connector
5.
Power supply: 2*AA ( not including )

6.
Operation Temperature: -10 to +50

7.
Storage Temperature: -20 to +70

8.

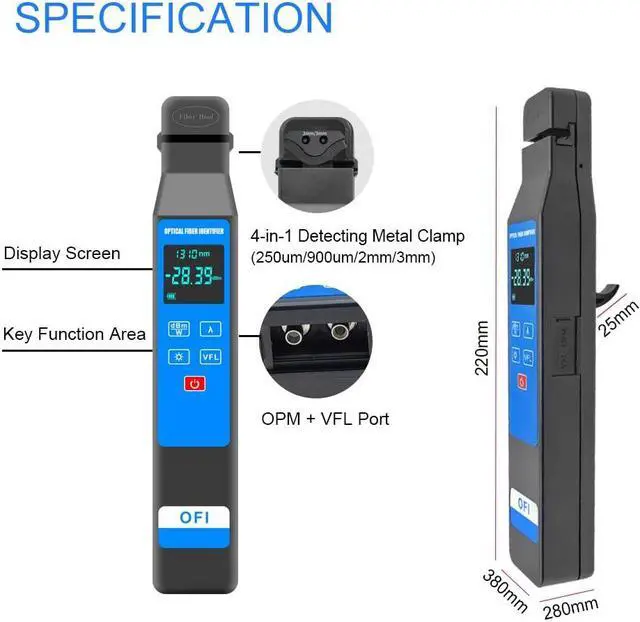

Outline size: 230*43*36mm

9.
Weight: 200g
