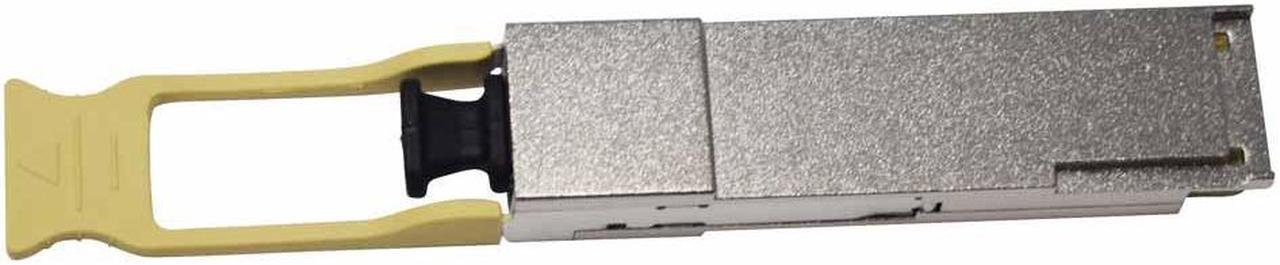

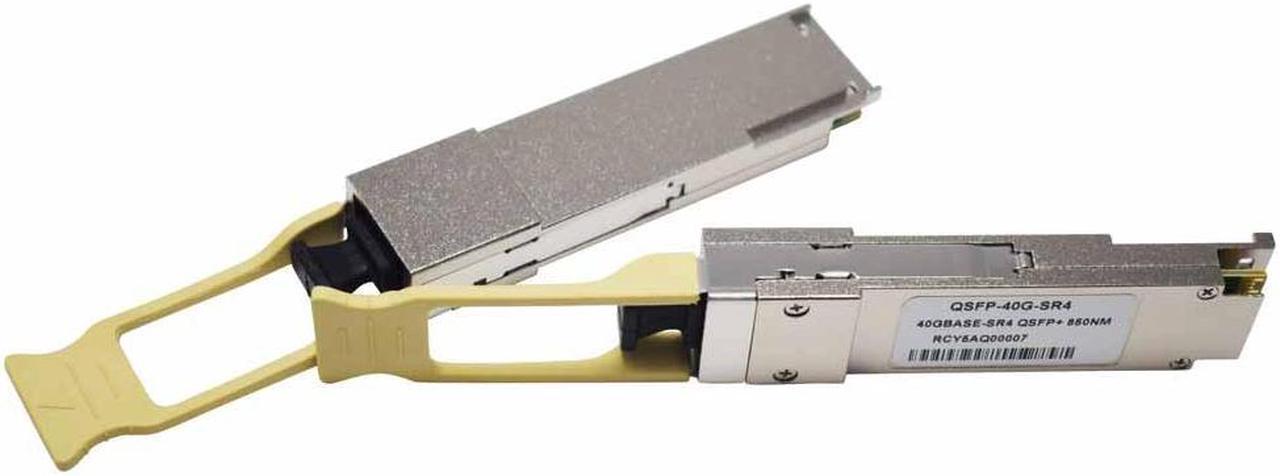

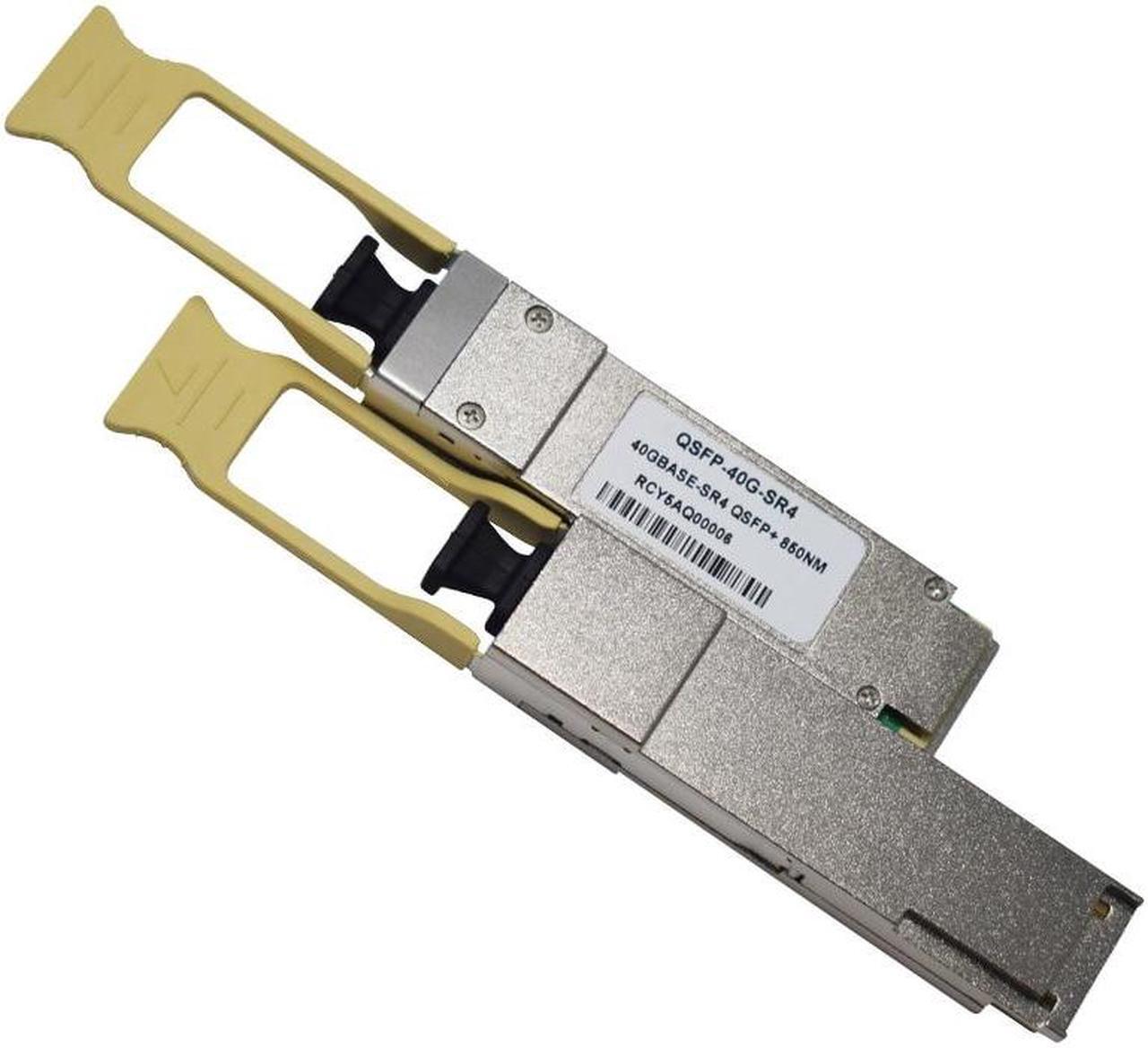

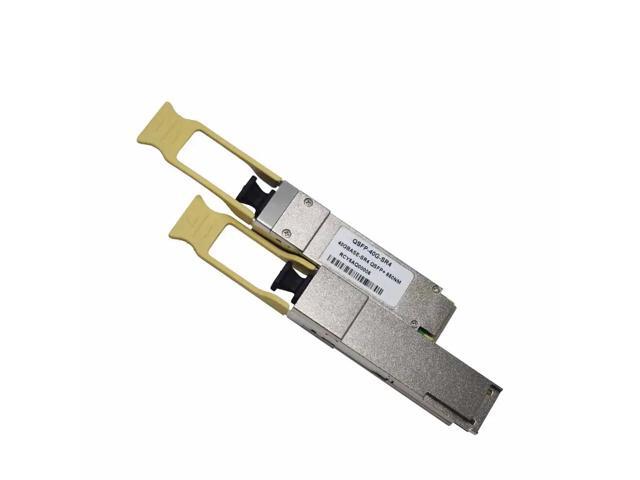

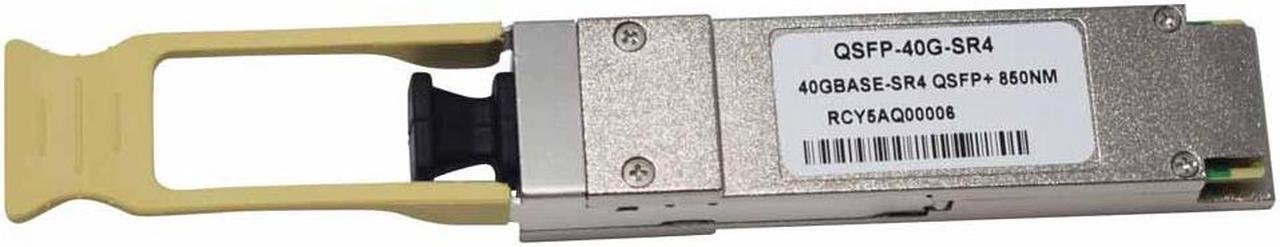

QSFP+ Module 40GBase-SR4 Compatible QSFP-40G-SR4-S QSFP 850nm 150m MTP/MPO Transceiver Module for MMF
- QSFP+ Module 40GBase-SR4 Compatible QSFP-40G-SR4-S QSFP 850nm 150m MTP/MPO Transceiver Module for MMF
+
+
Overview
Specs
Reviews
Product Description
40G QSFP+ 850nm SR4
Features
* 4 channels full-duplex transceiver modules
* Transmission data rate up to 10.5 Gb/s per channel
* 4 channels 850nm VCSEL array
* Receiver limiting electrical interface
* Low power consumption 1.5W
* Hot Pluggable QSFP form factor
* Maxinum link length of 150m
* Single MPO connector receptacle
* 3.3V power supply voltage
* Operating case temperature rang 0 to 70
* RoHS-6 compliant (lead-free)
Applications
40G Ethernet
Infiniband 4X SDR DDR QDR
40G Telecom connections
40G QSFP
QSFP-40G-SR4
QSFP 40G SR4 MPO/MTP 150m
QSFP-40G-LR10
QSFP 40G LR 10km
QSFP-40G-ER40
QSFP 40G ER 40km
40G QSFP+ 850nm SR4
Features
* 4 channels full-duplex transceiver modules
* Transmission data rate up to 10.5 Gb/s per channel
* 4 channels 850nm VCSEL array
* Receiver limiting electrical interface
* Low power consumption 1.5W
* Hot Pluggable QSFP form factor
* Maxinum link length of 150m
* Single MPO connector receptacle
* 3.3V power supply voltage
* Operating case temperature rang 0 to 70
* RoHS-6 compliant (lead-free)
Applications
40G Ethernet
Infiniband 4X SDR DDR QDR
40G Telecom connections
40G QSFP
QSFP-40G-SR4
QSFP 40G SR4 MPO/MTP 150m
QSFP-40G-LR10
QSFP 40G LR 10km
QSFP-40G-ER40
QSFP 40G ER 40km
