2 units Mux Demux 8 channels LGX by single fiber with 1U 19 Rack Mount Box

2 units Mux Demux 8 channels LGX by single fiber with 1U 19 Rack Mount Box

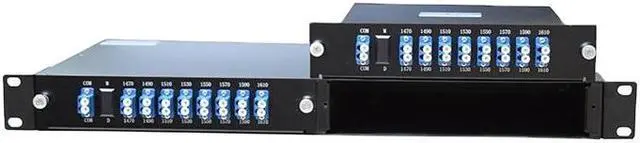

Mux Demux is 8Channel Mux & Demux each at 2pcs LGX Chassis packed in one 19" 1U Rack Mount. Its saves much place for customer.
Channel: 8 Channel
Wavelength: 1470~1610nm (customized is available)
Adaptor: LC/PC Duplex
Monitoring: Available.
Packing: 8ch Mux&Demux in LGX chassis, 2pcs LGX in one 19"
Hilink Photonics Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i. e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.
Hilink Photonics provides a complete portfolio of
Mux Demux and
Optical Add Drop Multiplexer (
OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as:
Express Port,
Monitor Port,
1310nm passband port and 1550nm port for these multiplexers according to customer choice.
Feature:
2, 4, 8, 16 or 18 ( Coarse Wavelength Division Multiplexer ) Wavelengths Optional
Color Coded Equipment Pors for Ease of Installation
Reliable Passive Thin Film Filter WDM Optical Technology
Low Optical Insertion Loss, Expoxy-Free in Optical Path
Telcordia (Bellcore) GR-1221-CORE
Mux+Demux Fits in 1'U 19 Rack-mount Chassis Optional
RoHS Complaint
Passive and OADM Devices
Passive device, ABS Box, 4 Channels from 1470~1610nm with SC/ FC/ LC/ ST connectors
Passive device, ABS Box, 8 Channels from 1470~1610nm with SC/ FC/ LC/ ST connectors
Passive device, ABS Box, 8 Channels from 1270~1610nm with SC/ FC/ LC/ ST connectors
Passive device, ABS Box, 16 Channels from 1270~1610nm with SC/ FC/ LC/ ST connectors
Passive device, 19" rack type, 4 Channels from 1470~1610nm with SC/ FC/ LC/ ST connectors
Passive device, 19" rack type, 8 Channels from 1470~1610nm with SC/ FC/ LC/ ST connectors
Passive device, 19" rack type, 8 Channels from 1270~1610nm with SC/ FC/ LC/ ST connectors
Passive device, 19" rack type, 16 Channels from 1270~1610nm with SC/ FC/ LC/ ST connectors
Passive device, 19" rack type, 32 Channels, from 1270~1610nm with SC/ FC/ LC/ ST connectors
Passive OADM device, ABS Box, 1 Channel without connectors (such as 1310 Add / 1310 Drop)
Passive OADM device, ABS Box, 2 Channels without connectors (such as 1310 Add / 1470 Drop)
Passive OADM device, ABS Box, 4 Channels without connectors (such as 1310, 1470 Add / 1470, 1510 Drop or 1310, 1370 Add / 1310, 1370 Drop)
Passive OADM device, ABS Box, 8 Channels without connectors (such as 1310, 1330, 1350, 1370 Add / 1410, 1430, 1450, 1470 Drop or 1310, 1330, 1350, 1370 Add / 1310, 1330, 1350, 1370 Drop)
Passive OADM device, ABS Box, 16 Channels without connectors (17 connectors)
ParameterMuxDemux
Operating Wavelength Range1260-1620 nm
Channel Range1460-1620 nm
Channel Central Wavelength (c) 1471, 1491, 1511, 1531, 1551, 1571, 1591 & 1611 nm
1310 Band Wavelength Range1260-1360 nm
Channel Spacing20 nm
Channel Pass Band c 6.5 nm
Channel Insertion Loss 3.2 dB
1310 Band Insertion Loss 0.8 dB
Pass Band Ripple 0.3 dB
Adjacent Channel Isolation 15 dB 35 dB
Non-Adjacent Channel Isolation 15 dB 45 dB
1310 Band Isolation 45 dB
Directivity 50 dB
Return Loss 45 dB
PDL 0.15
Maximum Power300 mW
Operating Temperature-5C ~ +65C
Storage Temperature-40C ~ +85C
Package Dimensions120 mm x 80 mm x 18mm
