200G QSFP56 for DC 850nm 100m 200G SR4 OM3 200g transceiver Module MPO

200G QSFP56 for DC 850nm 100m 200G SR4 OM3 200g transceiver Module MPO

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Product Description

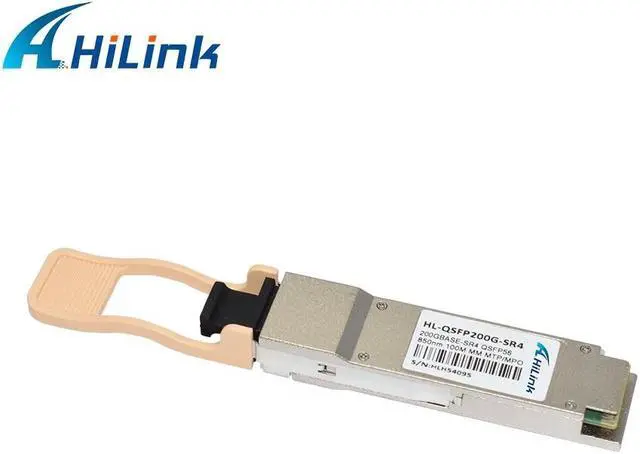

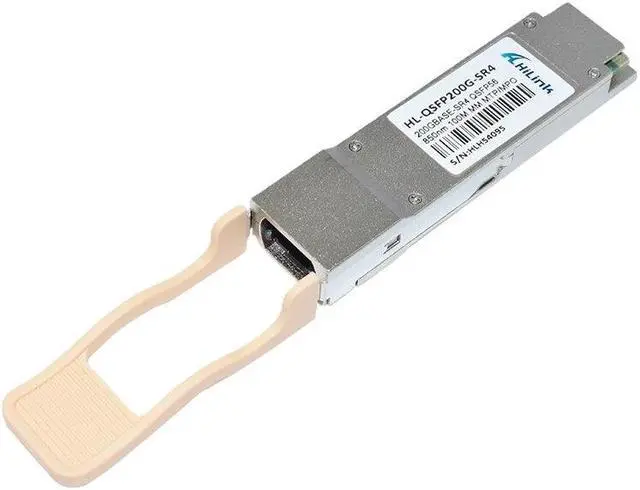

QSFP56-200G-SR4 200G QSFP56 SR4 PAM4 100m MPO Optical Transceiver Module
QSFP56-200G-SR4 supports 200Gb connectivity up to 100-meter transmission distance over multi-mode fiber (MMF) OM4 with four parallel lanes on 850nm center wavelength, operating at 50G per channel. It is compliant with the QSFP56 MSA and IEEE 802.3 bs Specification.
Applications
* 200GBASE Ethernet links
* Data Center
Item
200G Fiber Optical Modules
Form Factor
QSFP56
Max Data Rate
212.5G bps
Max Cable Distance
70m on OM3/100m on OM4
Wavelength
850nm
Connector
MPO/MTP
No. of Fiber
2
Output Power
- 6.5 ~+ 4.0 dBm
Receiver Sensitivity
< -8.4dBm
Power Dissipation
5W
DDM/DOM
Support
Temperature Range
0 to 70C (32 to 158F)
Certificate
CE RoHS FCC
