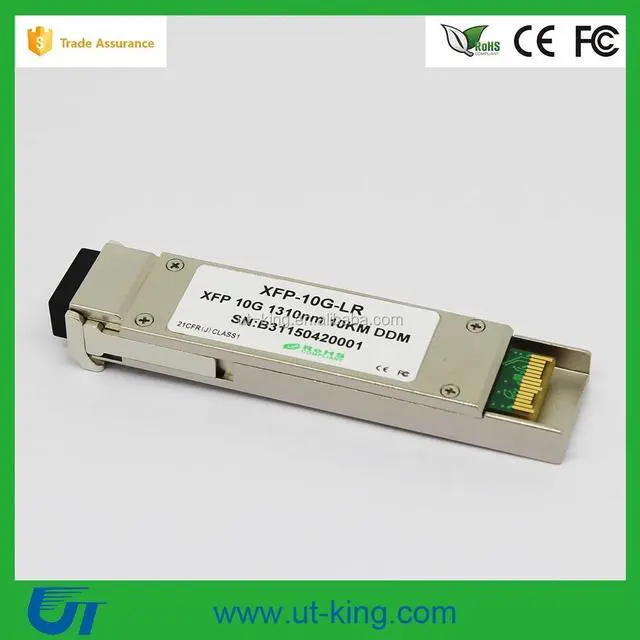

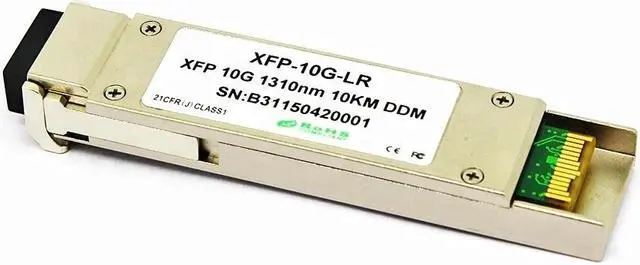

Manufacture Price xfp fiber optical modules xfp-10g-LR 1310nm 10km DDM
- Manufacture Price xfp fiber optical modules xfp-10g-LR 1310nm 10km DDM
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
UT XFP-10G-LR is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of
10.3125G bps(10GBASE-LR) or 9.910GBASE -LW), and transmission distance up to 10km on SMF. The transceiver module comprises a
transmitter with 1310nm un-cooled DFB laser and a receiver with a PIN photode. Transmitter and receiver are separate within a
wide temperature range of 0 to +70 and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling
high port densities for 10 GbE systems
PRODUCT FEATURES
* Supports 9.95G bps to 11.1G bps bit rates
* Maximum link length of 10km with SMF
* 1310nm Un-cooled DFB laser
* XFP MSA package with duplex LC connector
* Very low EMI and excellent ESD protection
* High transmission margin
* + 3.3V single power supply
* Below <1W power consumption
* Temperature range 0C to 70C
APPLICATIONS
* SDH STM I- 64.1 at 9.953G bps
* 10GBASE-LR/LW 10G Ethernet
* 1200-SM-LL-L 10G Fibre Channel
* 10GE over G. 709 at 11.09G bps
* OC192 over FEC at 10.709G bps
* Other optical links, up to 11.1G bps
UT XFP-10G-LR is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of
10.3125G bps(10GBASE-LR) or 9.910GBASE -LW), and transmission distance up to 10km on SMF. The transceiver module comprises a
transmitter with 1310nm un-cooled DFB laser and a receiver with a PIN photode. Transmitter and receiver are separate within a
wide temperature range of 0 to +70 and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling
high port densities for 10 GbE systems
PRODUCT FEATURES
* Supports 9.95G bps to 11.1G bps bit rates
* Maximum link length of 10km with SMF
* 1310nm Un-cooled DFB laser
* XFP MSA package with duplex LC connector
* Very low EMI and excellent ESD protection
* High transmission margin
* + 3.3V single power supply
* Below <1W power consumption
* Temperature range 0C to 70C
APPLICATIONS
* SDH STM I- 64.1 at 9.953G bps
* 10GBASE-LR/LW 10G Ethernet
* 1200-SM-LL-L 10G Fibre Channel
* 10GE over G. 709 at 11.09G bps
* OC192 over FEC at 10.709G bps
* Other optical links, up to 11.1G bps
