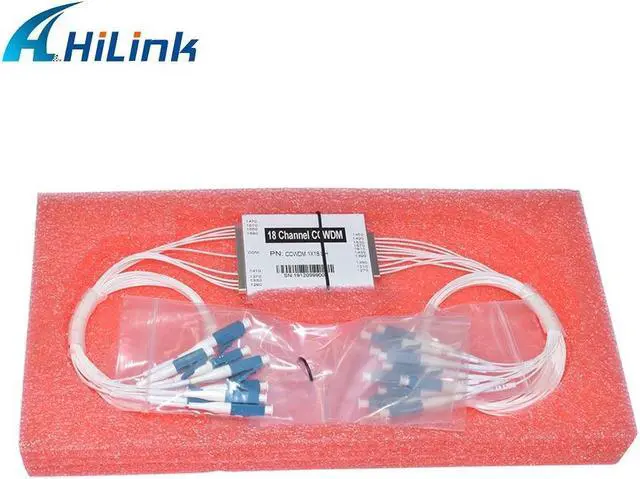

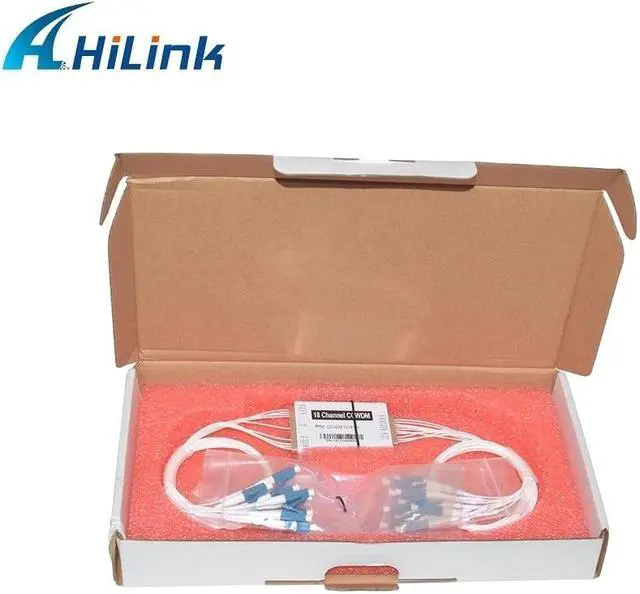

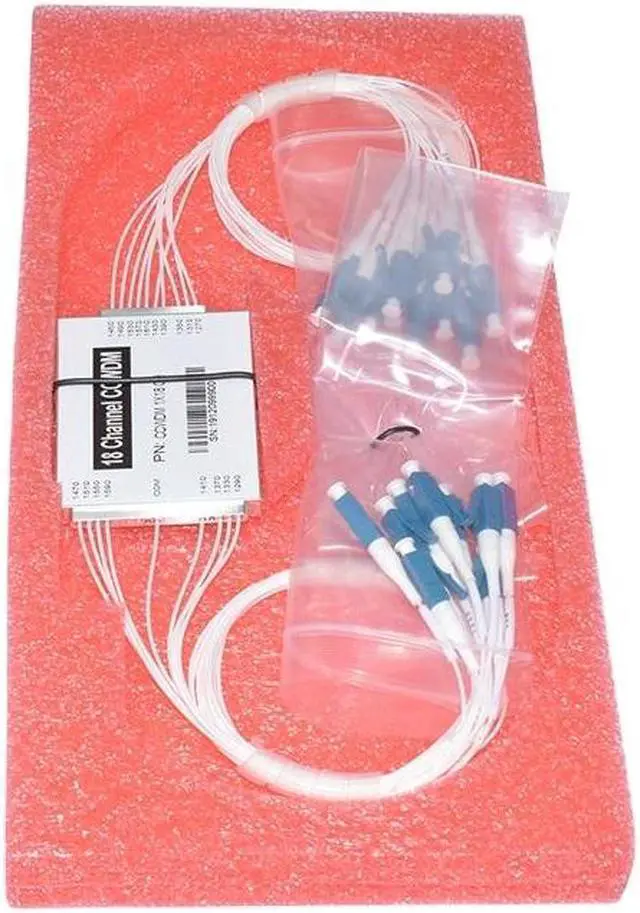

18CH C (Compact ) MUX/DEMUX (Multiplexer/Demultiplexer) is a 6-channel device with super compact package designed for cost-effective multi-wavelength network applications. It is based on the Thin Film Filter (TFF) technology and operates at four 20nm channel spacing ITU Grid wavelengths. Gigalight provides a series of customized 4CH CMUX/DEMUX devices packaged in metal box to meet different requirements on port configuration (1310nm/upgrade ports available), fiber type, fiber length, input connector, and output connector.
Mini Module
Features
Low Insertion Loss
Compact size
Good channel-to-channel uniformity
Ultra-Stability and Highly Reliability
Extended Operating Temperature Available
Applications
Optical Add/Drop Multiplexing
Telecom networks
Metro networks
Broadband Networks
Performance

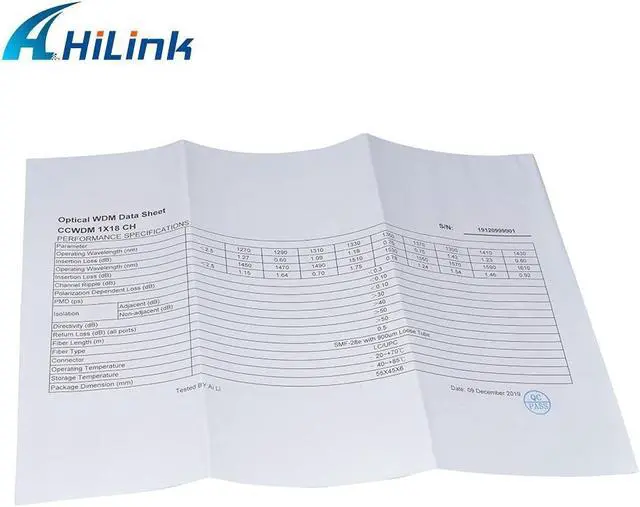

Specifications

:
Parameters4CH
4+Upgrade8CH8+UPG18+UPG2
Operating Wavelength (nm) 1260 ~ 16201260 ~ 16201260 ~ 16201260 ~ 16201260 ~ 1620
Channel Wavelength (nm) 1270, 1290,..., 1590, 1610 or 1271, 1291,..., 1591, 1611
Upgrade Port Wavelength Range (nm) NATBDNA1260~13601260~1457
Channel Spacing (nm) 2020202020
Channel Passband (nm) CWL+/- 6.5 nmCWL+/- 6.5 nmCWL+/- 6.5 nmCWL+/- 6.5 nmCWL+/- 6.5 nm
Insertion Loss (dB) 0.80. 81.41. 41.7
Channel Ripple (dB) 0.30. 30.30. 30.3
Isolation Adjacent (dB) >30>30>30>30>30
Isolation Non-adjacent (dB) >40>40>40>40>40
Upgrade Isolation (dB) NA>15NA>15>15
Polarization Mode Dispersion (PS) 0.20. 20.20. 20.2
Polarization Dependent Loss (dB) 0.20. 20.20. 20.2
Directivity (dB) >45>45>45>45>45
Return Loss (dB) >45>45>45>45>45
Maximum Power handling (mW) 500500500500500
Operating Temperature (C) -5 ~ +70-5 ~ +70-5 ~ +70-5 ~ +70-5 ~ +70
Storage Temperature (C) -40 ~ +85-40 ~ +85-40 ~ +85-40 ~ +85-40 ~ +85
Fiber TypeG657A1G657A1G657A1G657A1G657A1
Package Dimension (mm) L44 x W25 x H6 or L55 x W35 x H8, ABS Box Min.
Size: 100mm x 80mm x 10mm
