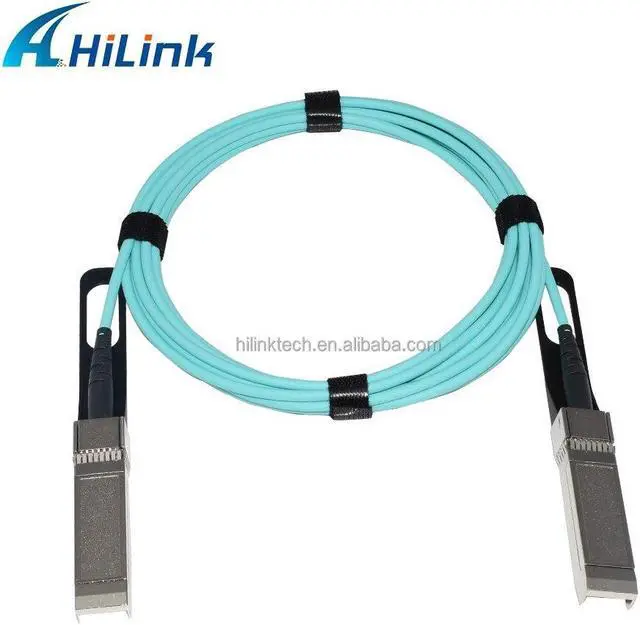

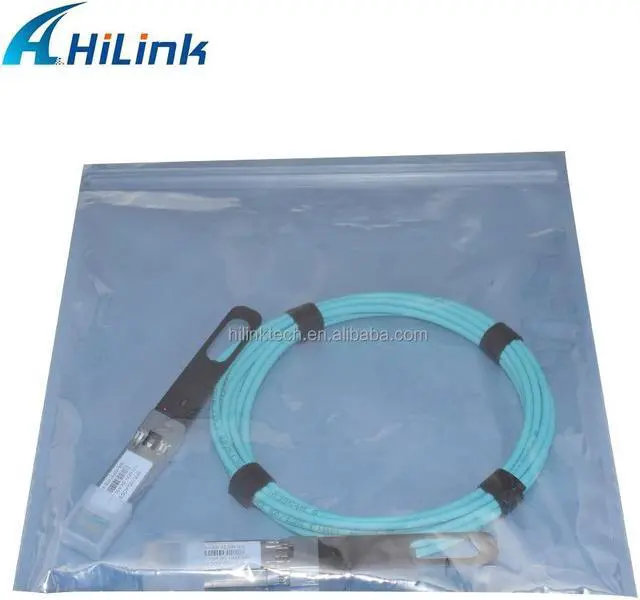

Fiber optical cable 40G QSFP+ to QSFP+ cables 7Meters AOC Cable OM3 Aqua color MMF 3.0mm

HL-QSFP-40G-AOC-7M 40G QSFP+-QSFP+ 7M
This will save more time to make the producing procedure.
Product Description
The QSFP+ active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 11.3G /10G/8G/4G/2G fiber channel, PCIe and SAS. It is compliant with the QSFP MSA and IEEE P 802.3 ba. RayOptek QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3G b/s, providing an aggregated rate of 45.2G b/s. RayOptek QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
PRODUCT FEATURES:
Four-channel full-duplex active optical cable
Transmission data rate up to 11.3G bit/s per channel
Reliable VCSEL array technology using multi-mode fiber
Low power consumption <1.5W
Operating case temperature: 0 to 70
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
APPLICATIONS:
Data center
40G Ethernet
4G/8G Fiber Channel
Parameter
Symbol
Min
Max
Unit
Notes
Storage Temperature
TS
-40
85

Operating Case Temperature
TOP
0
70

Power Supply Voltage
VCC
- 0.3
3.6
V
Relative Humidity (non-condensation)
RH
0
85
%
Input Voltage
Vin
- 0.3
Vcc+ 0.3
V
Parameter
Test Point
Min
Typical
Max
Unit
Notes
Differential input impedance
Zin
90
100
110
ohm
Differential Output impedance
Zout
90
100
110
ohm
Differential input voltage amplitude
Vin
300
1100
mVp-p
Differential output voltage amplitude
Vout
500
800
mVp-p
Bit Error Rate
BR
E-12
Input Logic Level High
VIH
2.0
VCC
V
Input Logic Level Low
VIL
0
0.8
V
Output Logic Level High
VOH
VCC- 0.5
VCC
V
Output Logic Level Low
VOL
0
0.4
