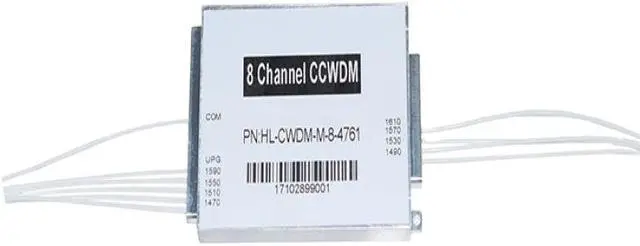

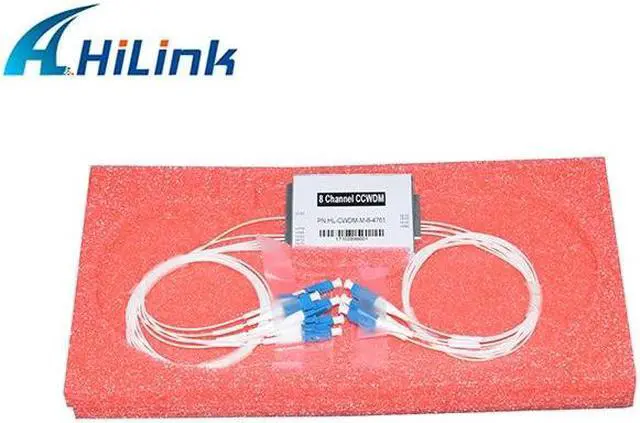

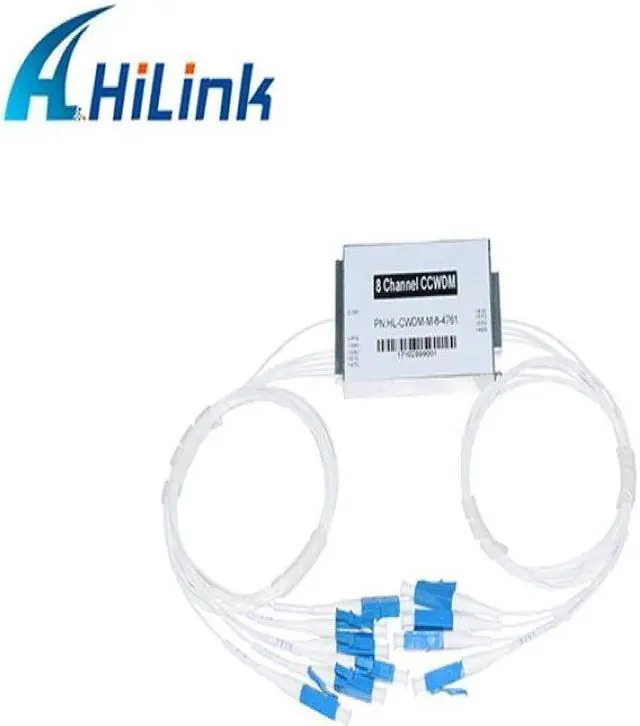

8ch 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, Mux/Demux, with UPG Port,Single Fiber, LC connectors, Csolution

8ch 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, Mux/Demux, with UPG Port, Single Fiber, LC connectors, Csolution
Mini Module
1. Features
Ultra-Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Mounted in 191 u Racks or ABS box optional
Wide Operating Wavelength: From 1260nm to 1620nm
Wide Operating Temperature: From -40 to 85
High Reliability and Stability
2. Applications
System
PON Networks
CATV Links
WDM Network
ParameterMuxDemux
Operating Wavelength Range1260-1620 nm
Channel Range1460-1620 nm
Channel Central Wavelength (c) 1471, 1491, 1511, 1531, 1551, 1571, 1591 & 1611 nm
1310 Band Wavelength Range1260-1360 nm
Channel Spacing20 nm
Channel Pass Band c 6.5 nm
Channel Insertion Loss 3.2 dB
1310 Band Insertion Loss 0.8 dB
Pass Band Ripple 0.3 dB
Adjacent Channel Isolation 15 dB 35 dB
Non-Adjacent Channel Isolation 15 dB 45 dB
1310 Band Isolation 45 dB
Directivity 50 dB
Return Loss 45 dB
PDL 0.15
Maximum Power300 mW
Operating Temperature-5C ~ +65C
Storage Temperature-40C ~ +85C
Package Dimensions120 mm x 80 mm x 18mm
Note1: All values specified are without connectors.
Note2: Higher performance specifications available upon request.
