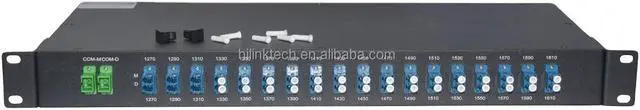

18ch MUX/DEMUX multiplexer LC/SC connectors 2 fibers

18ch MUX/DEMUX multiplexer LC/SC
Order details about customized products:
2~18Channels available.
Com port: simplex or duplex.
Fiber connector: LC/SC or other.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
DWDM Solutions and SFP/XFP.
Min.
Order Quantity: 1pcs is also okay for sample to satisfy your need.
OEM/ODM is acceptable, so tell us your requirements.
1.
FEATURES:
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1620nm
Wide Operating Temperature:
From -40C to 85C
High Reliability and Stability
2.
APPLICATIONS:
System
PON Networks
CATV Links

3. Performance

Specifications

Parameters
1x2
1x4
1x8
1x16
Center Wavelength (nm)
ITU, ITU+1
Passband (nm)
ITU 6.5
Operating Wavelength (nm)
1460~1620 or 1260~1620
Channel Space (nm)
20
Fiber Type
SMF-28e or customer specified
IL (dB) (P/A Grade)
0.7 / 1.0
1.4 / 1.7
2.0 / 2.5
2.5 / 3.0
Isolation (dB)
Adjacent Channel
30
Non-Adjacent Channel
50
Ripple (dB)
0.3
0.4
0.5
0.5
PDL (dB)
0.2
PMD (ps)
0.1
RL (dB)
45
Directivity (dB)
50
Maximum Optical Power (mw)
500
Operating Temperature ()
-40~85
Storage Temperature ()
-40~85
Compact BOX Package (mm)
100*80*10
140*115*18
LGX Package
1U, 2U

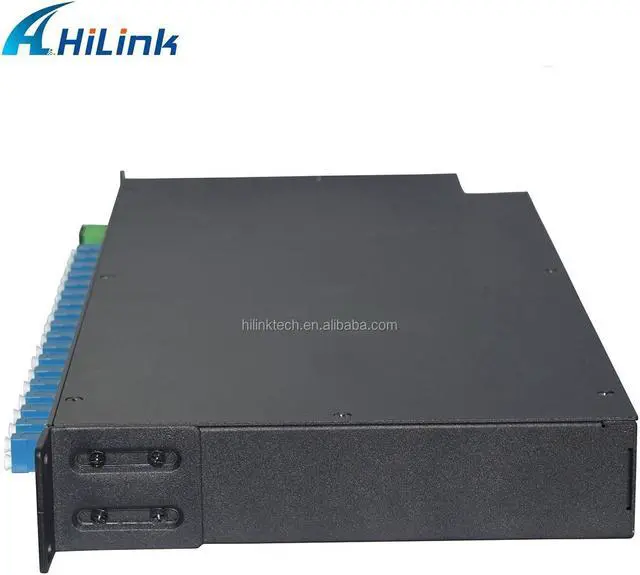

19 Rack mount Package
1U
