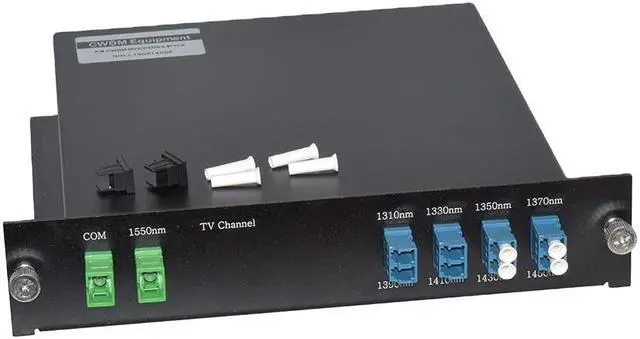

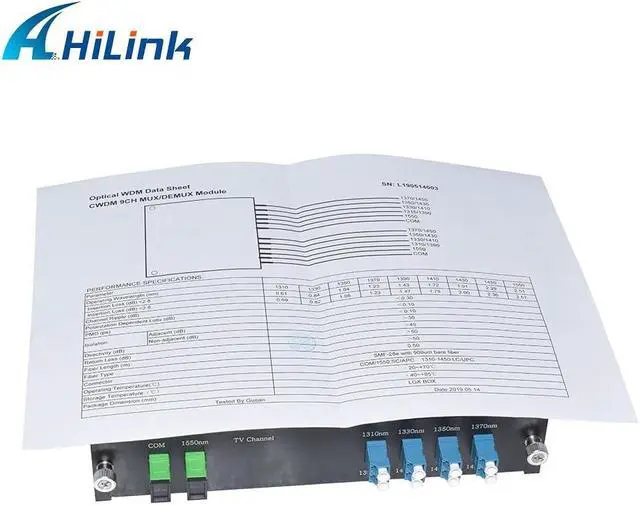

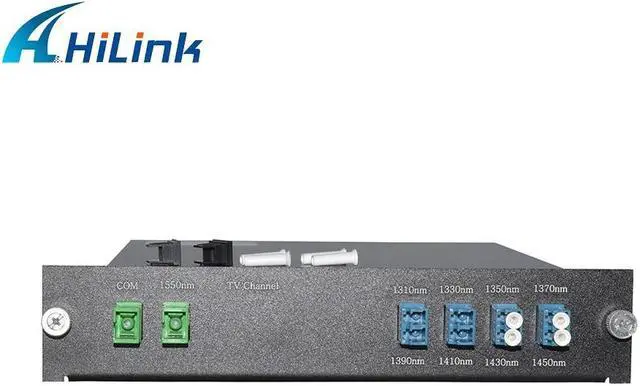

9CH Mux/DeMux, 8-channel Mux/Demux 1310nm-1450nm Single Fiber LGX Box with 1550nm TV Channel

9CH Mux/DeMux, 8-channel Mux/Demux 1310nm-1450nm Single Fiber LGX Box with 1550nm TV Channel
tangram: 5557 end
Product Features:
Very Low Insertion Loss
High Isolation
High Reliability and Stability
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)
Operating Temperature: -20 to +70
Industrial Operating Temperature: -40 to +80
Applications:
System
Add/Drop
PON Networks
CATV Links
Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
ParameterMuxDemux
Operating Wavelength Range1260-1620 nm
Channel Range1460-1620 nm
Channel Central Wavelength (c) 1471, 1491, 1511, 1531, 1551, 1571, 1591 & 1611 nm
1310 Band Wavelength Range1260-1360 nm
Channel Spacing20 nm
Channel Pass Band c 6.5 nm
Channel Insertion Loss 3.2 dB
1310 Band Insertion Loss 0.8 dB
Pass Band Ripple 0.3 dB
Adjacent Channel Isolation 15 dB 35 dB
Non-Adjacent Channel Isolation 15 dB 45 dB
1310 Band Isolation 45 dB
Directivity 50 dB
Return Loss 45 dB
PDL 0.15
Maximum Power300 mW
Operating Temperature-5C ~ +65C
Storage Temperature-40C ~ +85C

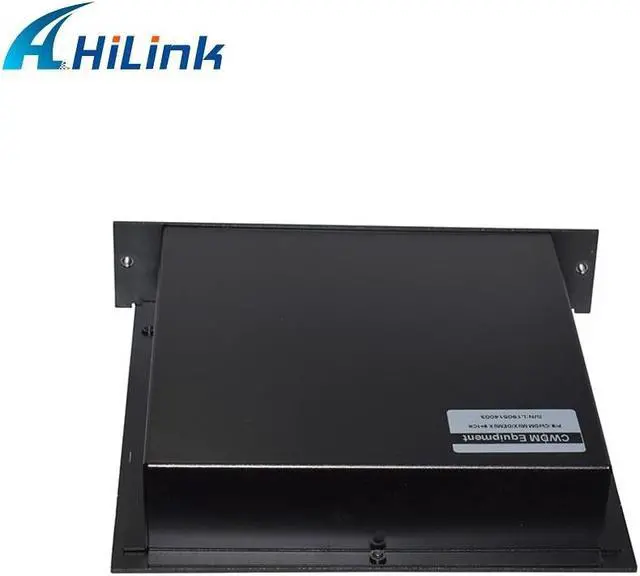

Package Dimensions120 mm x 80 mm x 18mm
Note1: All values specified are without connectors.
Note2: Higher performance specifications available upon request.
