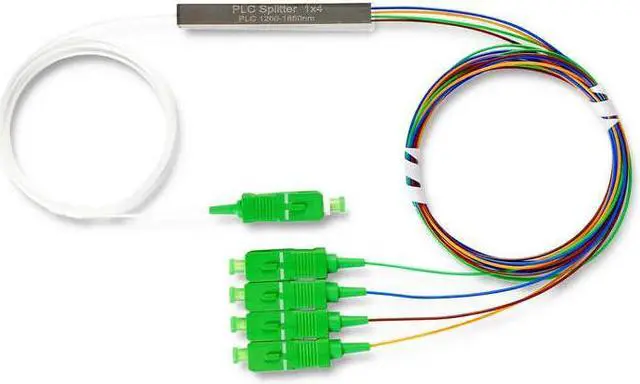

1 pcs 1x4 low insertion loss SC/APC miniature PLC splitter Fiber optic steel type fiber optic PLC

1). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
2). It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3). We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4). All products meet GR-1209-CORE and GR-1221-CORE requirements.

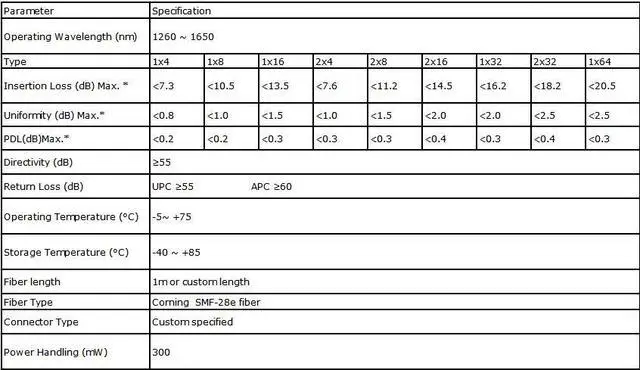

Parameter
Specification
Operating Wavelength (nm)
1260 ~ 1650
Type
1x4
1x8
1x16
2x4
2x8
2x16
1x32
2x32
1x64
Insertion Loss (dB) Max. *
<7.3
<10.5
<13.5
<7.6
<11.2
<14.5
<16.2
<18.2
<20.5
Uniformity (dB) Max. *
<0.8
<1.0
<1.5
<1.0
<1.5
<2.0
<2.0
<2.5
<2.5
PDL (dB) Max. *
<0.2
<0.2
<0.3
<0.3
<0.3
<0.4
<0.3
<0.4
<0.3
Directivity (dB)
55
Return Loss (dB)
UPC 55 APC 60
Operating Temperature (C)
-5~ +75
Storage Temperature (C)
-40 ~ +85
Fiber length
1m or custom length
Fiber Type
Corning SMF-28e fiber
Connector Type
Custom specified
Power Handling (mW)
300
