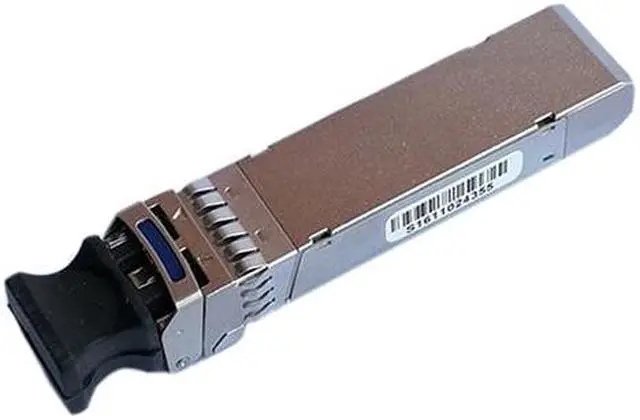

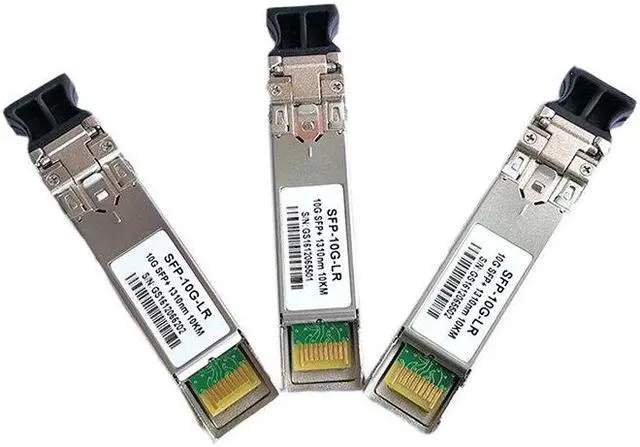

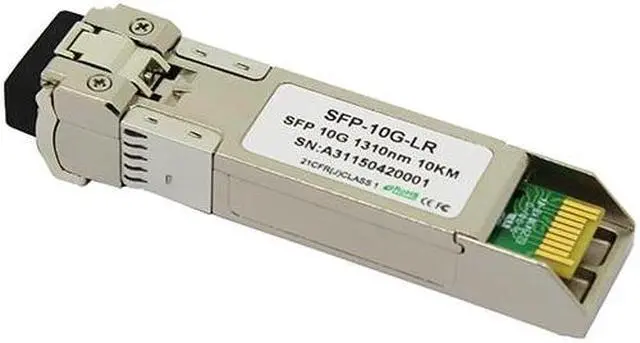

Fiber Optic SM DX LC Dual Fiber 10g SFP LR 1310nm 10km SFP transceiver module

Wholesale Price Fiber Optic SM DX LC Dual Fiber 10g SFP LR 1310nm 10km SFP transceiver module
Product Description
Features
Optical interface compliant to IEEE 802.3 ae 10GBASE-LR
Electrical interface compliant to SFF-8431
Hot Pluggable
1310nm DFB transmitter, PIN photo-detector
Operating case temperature: 0 to 70 C
Low power consumption
Applicable for 10km/20km SMF connection
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Applications
10GBASE-LR at 10.3125G bps
10GBASE-LW at 9.953G bps
Other optical links
Features:
Supports 9.95 to 11.3G b/s bit rates
Hot-Pluggable

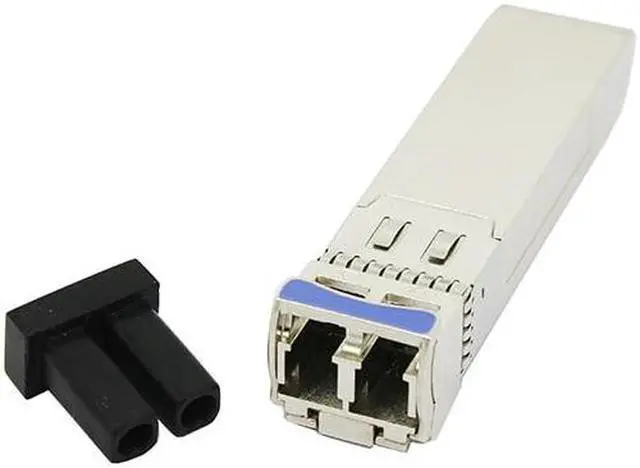

Duplex LC connector
1310nm DFB transmitter, PIN photo-detector
SMF links up to 10km
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
Power Supply: + 3.3V
Power consumption <1.5W
Temperature Range: 0~ 70C
RoHS compliant
Applications:
10GBASE-LR/LW Ethernet
SONET OC-192 / SDH
10G Fibre Channel
Description:
UTSPLXG10D is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The UTSPLXG10D converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km links
The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3 ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.
Parameter
Symbol
Min.
Typical
Max.
Unit
Note
Supply Voltage
Vcc
3.135
3.465
V
Supply Current
Icc
430
mA
Power Consumption
P
1.5
W
Transmitter Section:
Input differential impedance
Rin
100

1
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT)
V
- 0.3
4
V
Differential input voltage swing
Vin, pp
180
700
mV
2
Transmit Disable Voltage
VD
2
Vcc
V
3
Transmit Enable Voltage
VEN
Vee
Vee+ 0.8
V
Receiver Section:
Single Ended Output Voltage Tolerance
V
- 0.3
4
V
Rx Output Diff Voltage
Vo
300
850
mV
Rx Output Rise and Fall Time
Tr/Tf
30
ps
4
LOS Fault
VLOS fault
2
VccHOST
V
5
LOS Normal
VLOS norm
Vee
Vee+ 0.8
