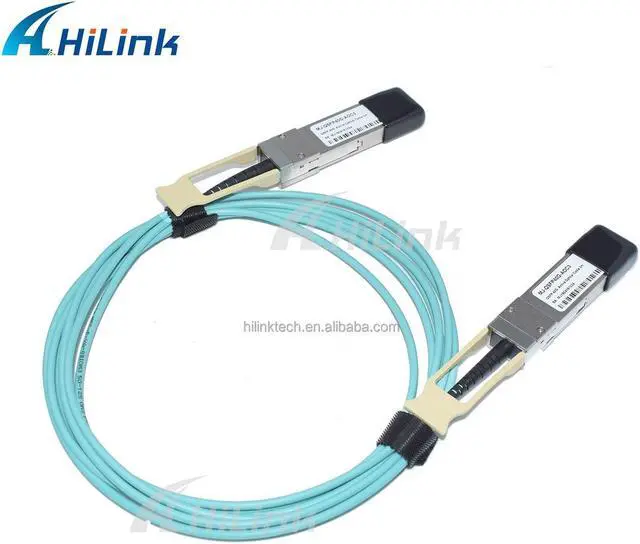

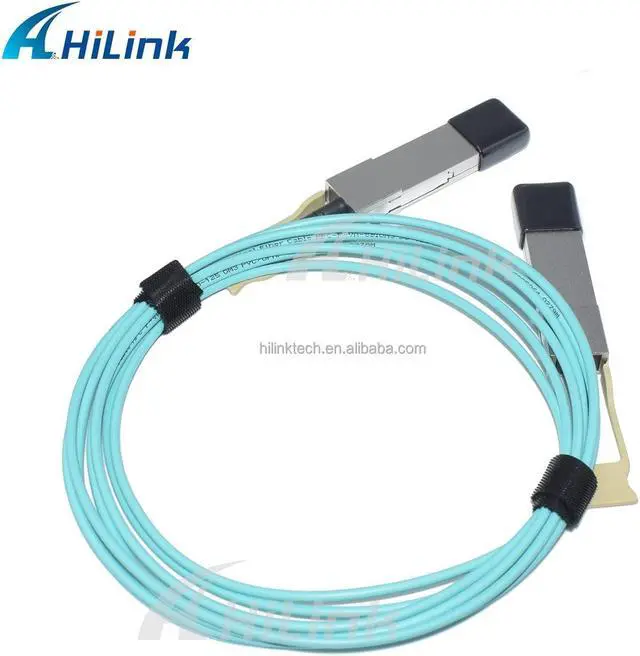

Active optical 40GBase AOC QSFP+ to QSFP+ 3M Active Cable

HL-QSFP-40G-AOC-3M 40G QSFP+-QSFP+ 3M
Product Description
The Hilinktech QSFP+ active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 11.3G /10G/8G/4G/2G fiber channel, PCIe and SAS. It is compliant with the QSFP MSA and IEEE P 802.3 ba. RayOptek QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3G b/s, providing an aggregated rate of 45.2G b/s. RayOptek QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
PRODUCT FEATURES:
Four-channel full-duplex active optical cable
Transmission data rate up to 11.3G bit/s per channel
Reliable VCSEL array technology using multi-mode fiber
Low power consumption <1.5W
Operating case temperature: 0 to 70
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
APPLICATIONS:
Data center
40G Ethernet
4G/8G Fiber Channel
Parameter
Symbol
Min
Max
Unit
Notes
Storage Temperature
TS
-40
85

Operating Case Temperature
TOP
0
70

Power Supply Voltage
VCC
- 0.3
3.6
V
Relative Humidity (non-condensation)
RH
0
85
%
Input Voltage
Vin
- 0.3
Vcc+ 0.3
