Durable 100g Qsfp28 Aoc 15m (33ft) Aoc Hd mi Active Optical Cable

Product Description

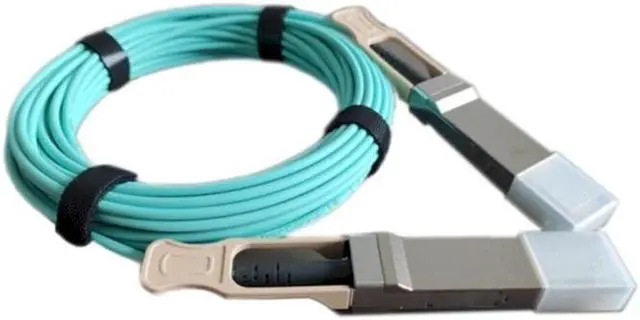

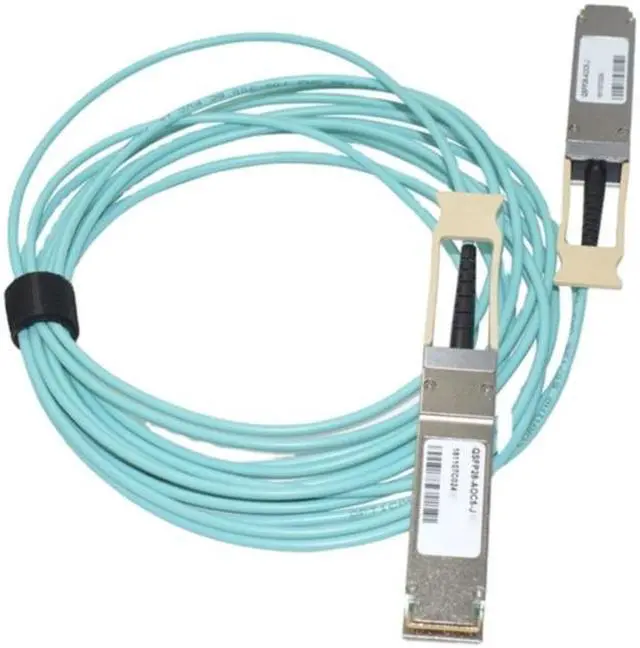

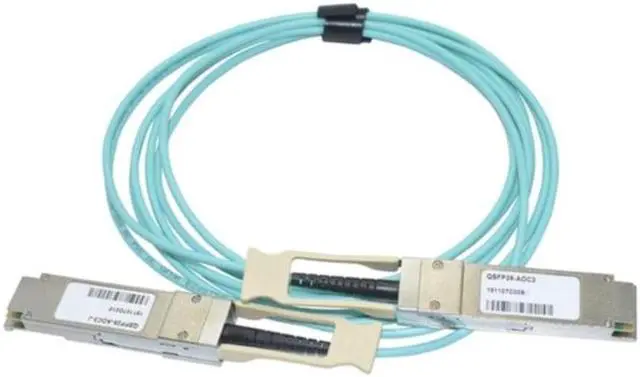

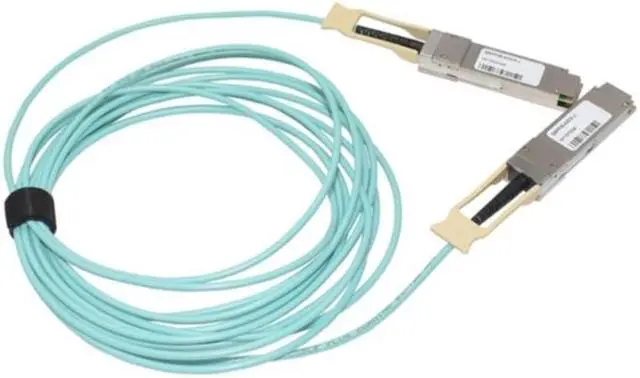

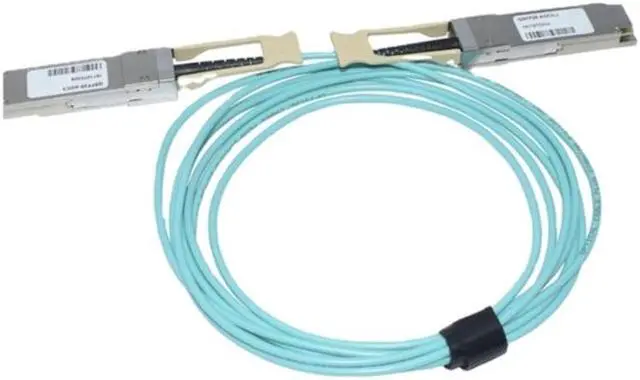

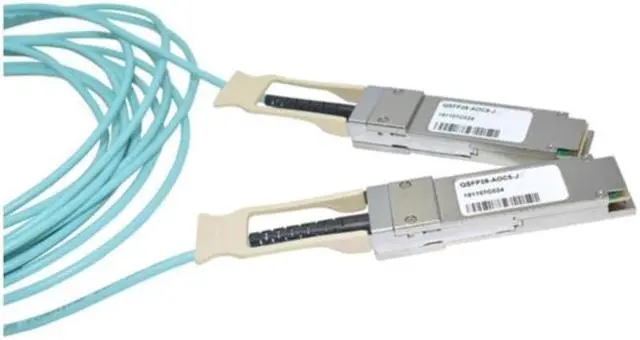

100G QSFP28 AOC Active Optical Cable
Overview
100G QSFP28 AOC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ AOC for 100 Gigabit Ethernet and Infiniband EDR Applications. This AOC is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. 100G QSFP28 AOC is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector.

The optical interface uses a 12 fiber MTP (MPO) connector. This module incorporates GZ-Link proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Features
* 4 channels full-duplex transceiver modules
* Supports 100Gbps total data rate
* Transmission data rate up to 28.05G bps per channel
* 4 channels 850nm VCSEL array
* 4 channels PIN photo detector array
* Low power consumption <3.5W
* Hot Pluggable QSFP form factor
* Maximum link length of 70m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
* Single MPO connector receptacle
* Built-in digital diagnostic functions
* Operating case temperature 0C to +70C
* 3.3V power supply voltage
* RoHS 6 compliant (lead free)
Package (Form Factor)
100G QSFP28 AOC
Data Rate (typical)
25.78 Gbps/CH
Distance
100m on OM4 MMF
Transmitter
4CH VCSEL Array Laser
Receiver
4CH PIN photo detector Array
TX Output Power (dBm)
- 8.4 ~+ 2.4
RX Sensitivity (dBm)
- 5.2
Low/High Case Temperature
0C~70C
Voltage Supply (typical)
3.3 v
Connector
QSFP28
Application* IEEE 802.3 bm 100GBASE SR4
* Infiniband EDR
* 128G Fibre Channel
* 4x28Gb/s Multimode OTN
More Products To Choose
Application
direct, FULL COMPATIBLE WITH FOLLOWING NETWORK DEVICES
Packaging & Shipping
Packing

Details

:
10pcs/ anti-static box.
Shipping Methods:
1. Samples and Small quantity order FedEx/DHL/UPS/TNT, Door to Door.
2.
Batch goods: By Air, by Sea or by Rail.
3.
FCL: Airport/Seaport/Railway Station receiving.
Precautions:
1. Storage in anti-static box.
2. When used, please ensure that the voltage is normal and stable.
