LC/UPC 16ch Mux/Demux 1U Rack Mount Dual Fiber 1310nm~1610nm

LC/UPC 16CH Mux/Demux 1U Dual Fiber 1310nm~1610nm
FEATURES:
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1270nm to 1610nm
Wide Operating Temperature: From -40C to 85C
High Reliability and Stability
APPLICATIONS;
System
FTTX
PON Networks
CATV Links
Metro ethernet
Related Product:
COMPLIANCE:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
1N Mux/Demux Module
Parameters1x21x41x81x16
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU 6.5
Operating Wavelength (nm) 1460~1620 or 1260~1620
Channel Space (nm) 20
Fiber TypeSMF-28e or customer specified
IL (dB) (P/A Grade) 0.7 / 1.01. 4/ 1.72. 0/ 2.52. 5/ 3.0
Isolation (dB) Adjacent Channel30
Non-Adjacent Channel50
Ripple (dB) 0.30. 40.50. 5
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (C) -40~85
Storage Temperature (C) -40~85
BOX Package (mm) 100*80*10140*115*18
LGX Package1U, 2U
19 Rack mount Package1U

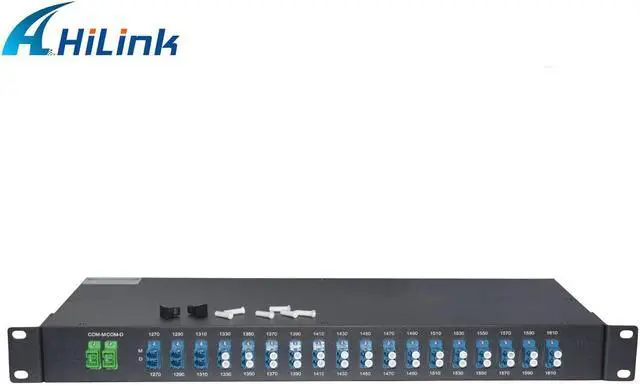

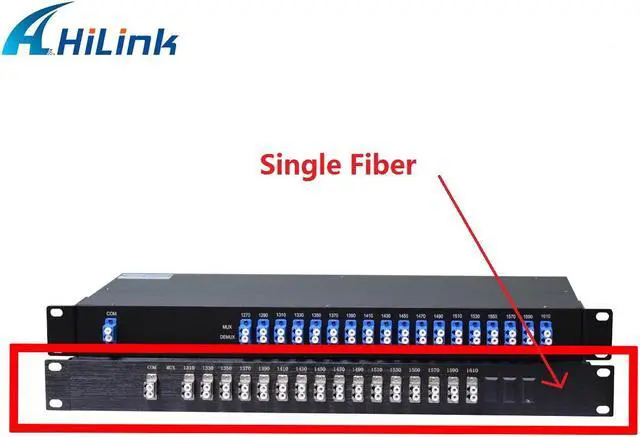

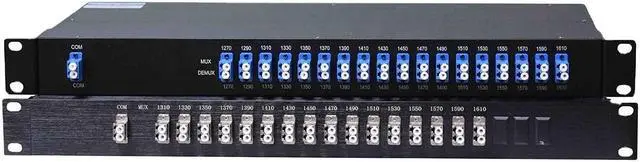

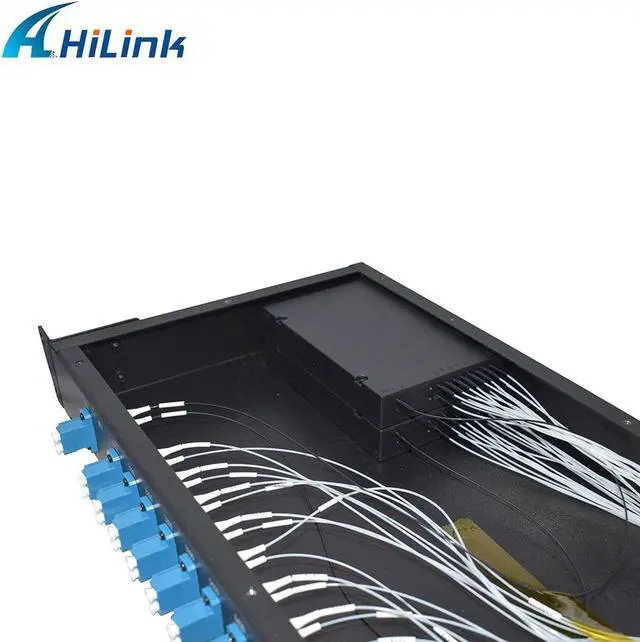

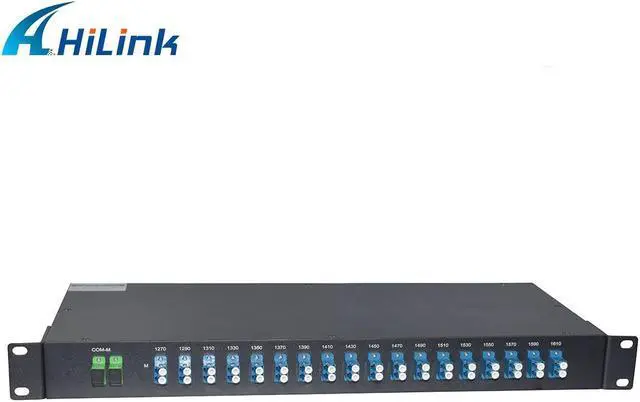

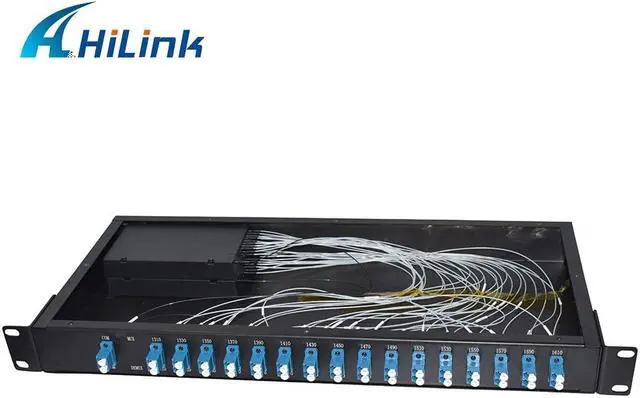

REAL PICTURES:
