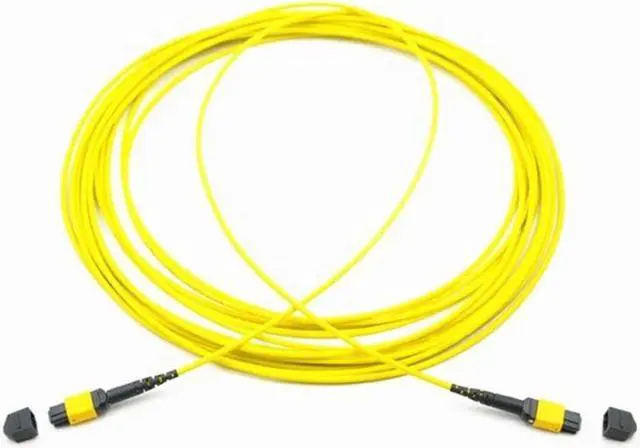

Optic Fiber Patch Cable OS1 12Core Female To Male MTP/MPO Patch Cord

"Product Description
10G Dual fibers 1310nm/ 3.3V /LC 40KM Fiberhome Brocade Ciscco Fiber Optic Equipment SFP+ Module 1. Single Power Supply 3.3V
2. Small Form-factor Pluggable (SFP)
3. Digital diagnostic monitor compatible with SFF-8472
4. Compliant with ITU-T G. 984.2
5. Integrated WDM filter for dual wavelength Operate at 1490 Tx/ 1310nm Rx
6. 1490nm DFB continuos-mode transmitter
7. 1310nm burst-mode APD-TIA receiver
8. LVTTL transmitter disable input and transmitter fault output
9. Hot pluggable capability
10. LVPECL compatible data input/output interface
11. SC Receptacle optical connector
12. compliant with ROHS standard
Applications
Gigabit Ethernet Passive Optical Networks (GPON CLASS B+) OLT side
Specification
Absolute maximum ratings
Parameter
Symbol
Min.
Max.
Unit
Storage Temperature
TS
-40
+85

Operating Temperature
Top
0
+70

Supply Voltage
VCC
- 0.5
+ 3.6
V
Power Supply Current
ICC
-
400
mA
Voltage at any Input Pin
VIN
0
Vcc
V
Company Profile
FAQ
"
Optic Fiber Patch Cable OS1 12Core Female To Male MTP/MPO Patch Cord 32.09 "Product Description

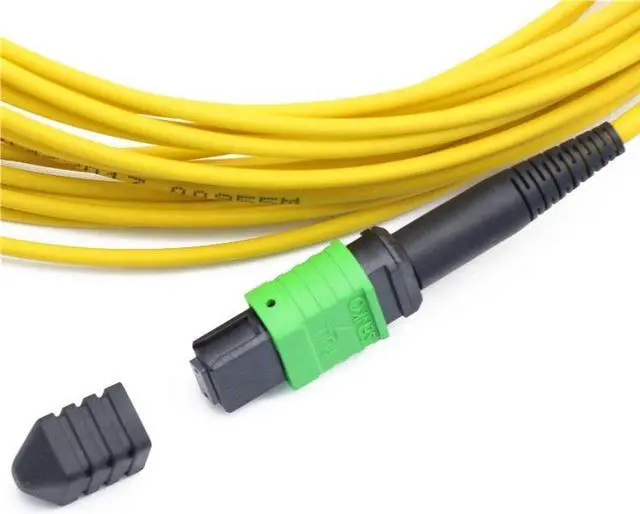

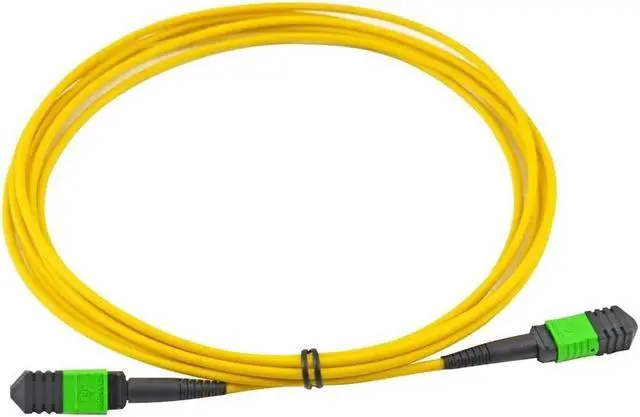

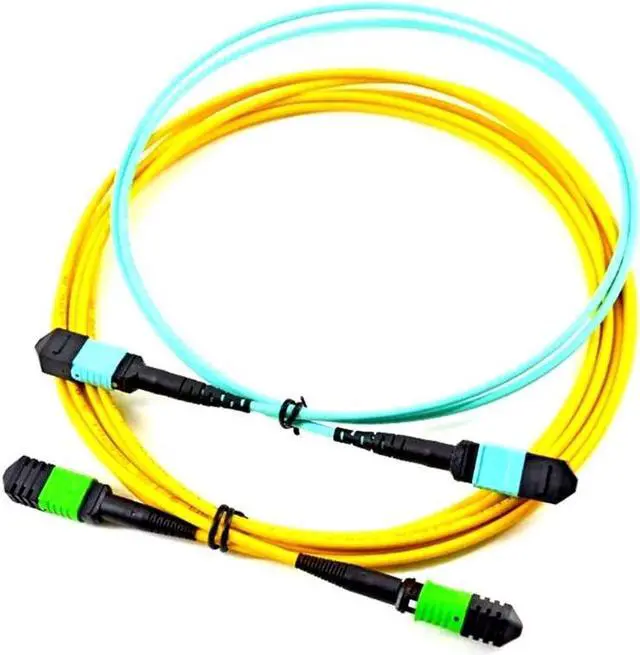

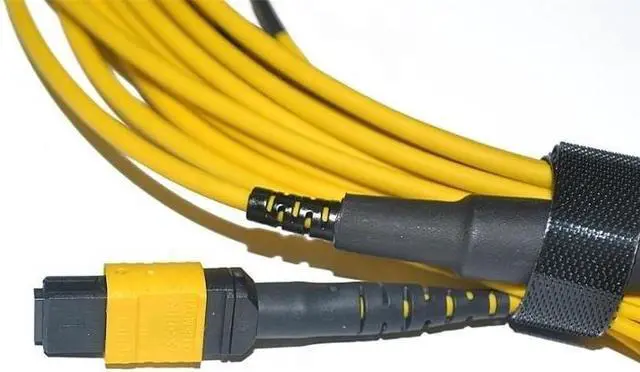

G652D MPO cable male to female 12core optic fiber patch cord
MPO cable assemblies are with 12 core MPO connector female to female. cable type OM3, the cable is widely used for cable expanding in the data center.
Structure
Features
12 core cable connection
OM3 fiber optic cable
Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement
Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy for storage and cable install
Use dustproof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage

Specifications

MPO/MTP Connector
SM
MM
Insertion Loss (dB)
0.75
0.50
Return Loss (dB)
60for A PC
------
50for pc
------
Male/Female
Male: With Pins; Female; Without Pins
Exchangeability (dB)
0.2 (Connect Randomly)
Tensile Strength (dB)
0.2 (0-15Kgf)
Vibration (dB)
0.2 (5-50Hz)
Temp. Range (dB)
0.2 (-40C~85C )
"
