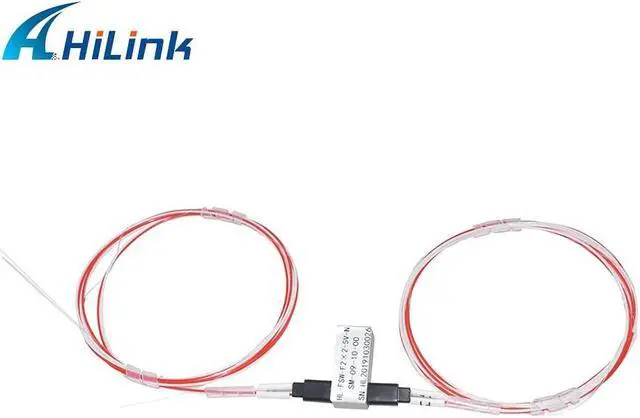

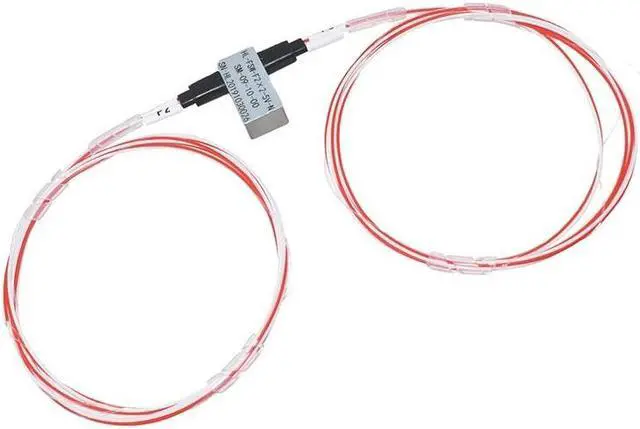

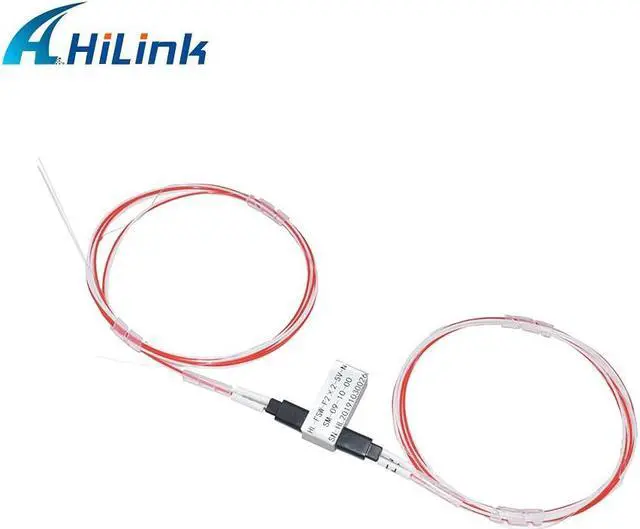

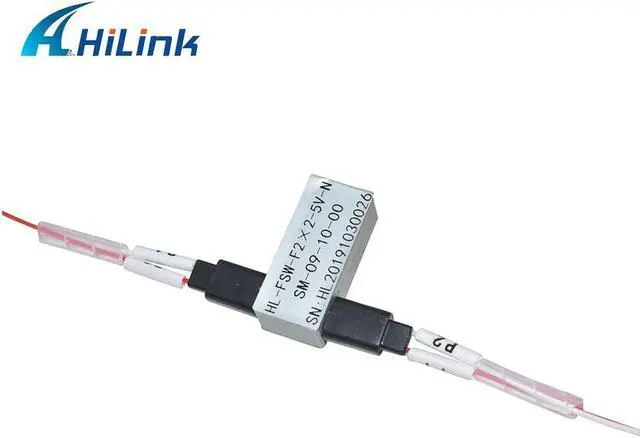

Non Latching F2x2 Optical Fiber Switch SM 5V 1310nm 1550nm Wavelength Condition

Non Latching F2x2 Optical Fiber Switch SM 5V 1310nm 1550nm Wavelength Condition
Features
Unmatched Low Cost
Low insertion Loss
High Channel Isolation
High Stability, High Reliability
Epoxy-free on Optical Path
Latching or Non-latching
Applications
Optical Network
Protection/Restoration
Optical Singnal Routing
Configurable Optical Add/Drop
Transmitter and receiver protection
Network Test System
Performance:
ParametersUnitTZ-FSW-22F
Wavelength Rangenm1260 ~ 1650
Test Wavelengthnm1310 /1550
Insertion Loss 1,
2dBType: 0.7M ax: 1.1
Return Loss 1, 2dBSM 50
Crosstalk 1dBSM 55
PDLdB 0.05
WDLdB 0.25
RepeatabilitydB 0.02
Operating VoltageV 3.0 or 5.0
DurabilityCycles 10 Million
Switching Timems8
Optical PowermW500
Operating Temperature-20 ~ +70
Storage Temperature-40 ~ +85
Relative Humidity%5 ~ 95
Fiber ColorP1, P3 RED, P2, P4 Black
Dimensionmm (L) 28.3 (W) 12.0 (H) 8.5 0.2 or Customer design
Note: 1 Within operating temperature and SOP.
2 Excluding Connectors.
Pins
TypeStateOptical RouteElectric DriveStatus Sensor
22FPin 1Pin 5Pin 6Pin 10Pin 2-3Pin 3-4Pin 7-8Pin 8-9
LatchingAP1-P4, P2-P3------GNDV+CloseOpenOpenClose
BP1-P3, P2-P4V+GND------OpenCloseCloseOpen
Non-AP1-P4, P2-P3------------CloseOpenOpenColse
latching
BP1-P3, P2-P4V+------GNDOpenCloseCloseOpen
