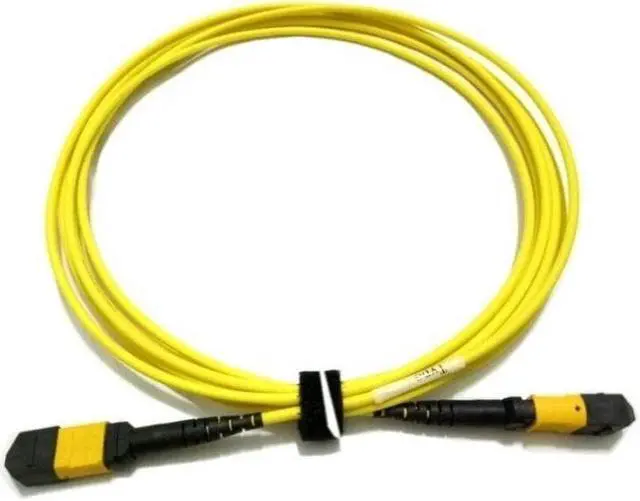

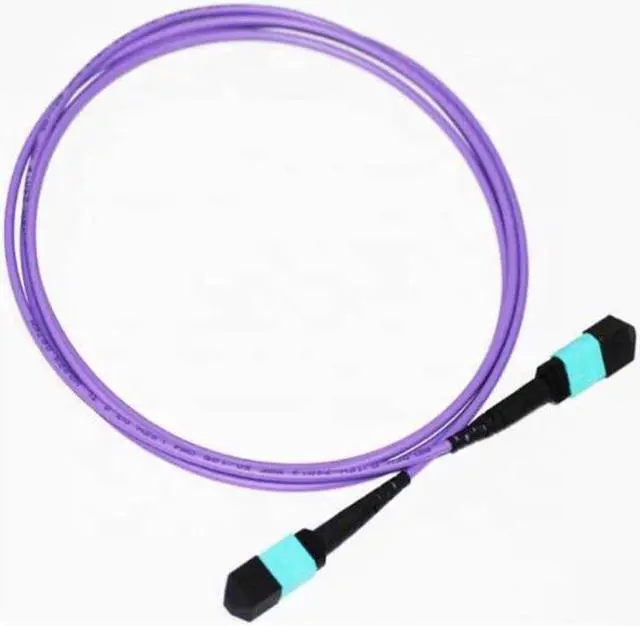

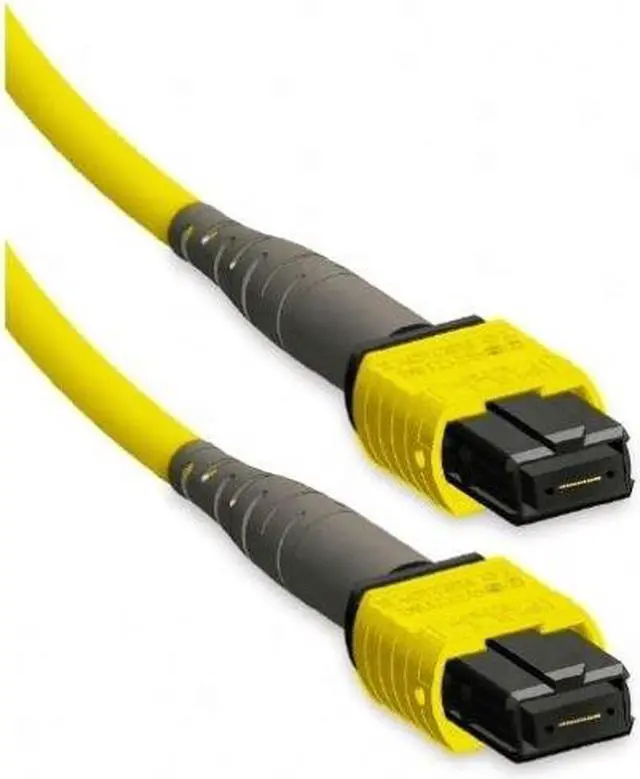

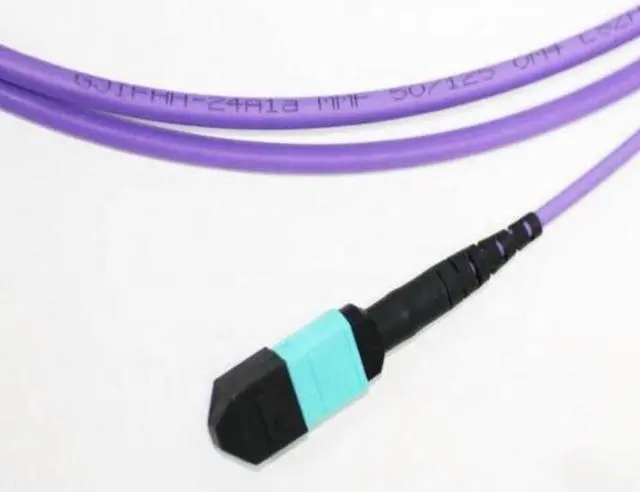

mpo 24 core fiber optic cable 2.0 single mode fiber optic patch cord fiber optic pigtail
- mpo 24 core fiber optic cable 2.0 single mode fiber optic patch cord fiber optic pigtail
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
cable connector
MPO fiber cable is applicable in data and telecommunicationssystems. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing space and cost saving. It used the plug-in lock structure and easy to operate.
Features
Low insertion loss and high reflection loss
Good Durability, High stability
Good exchangeability
Male and female connector type
Muti core optical fiber connector
Product pic:
Application
DESCRIPTION MODEL
CATV
Optical fiber communication system
Data processing
Test equipment
Insertion Loss dB
0.35
Return Loss dB
50 for PC, 65 for APC
Tensile dB
0.30 ( Max 66N)
Vibration dB
0.30 (10~ 50HZ)
Operating Temperature dB
0.30 ( -40C ~ +75C 5Cycles )
cable connector
MPO fiber cable is applicable in data and telecommunicationssystems. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing space and cost saving. It used the plug-in lock structure and easy to operate.
Features
Low insertion loss and high reflection loss
Good Durability, High stability
Good exchangeability
Male and female connector type
Muti core optical fiber connector
Product pic:
Application
DESCRIPTION MODEL
CATV
Optical fiber communication system
Data processing
Test equipment
Specifications
:Insertion Loss dB
0.35
Return Loss dB
50 for PC, 65 for APC
Tensile dB
0.30 ( Max 66N)
Vibration dB
0.30 (10~ 50HZ)
Operating Temperature dB
0.30 ( -40C ~ +75C 5Cycles )
