Product Description
Overview

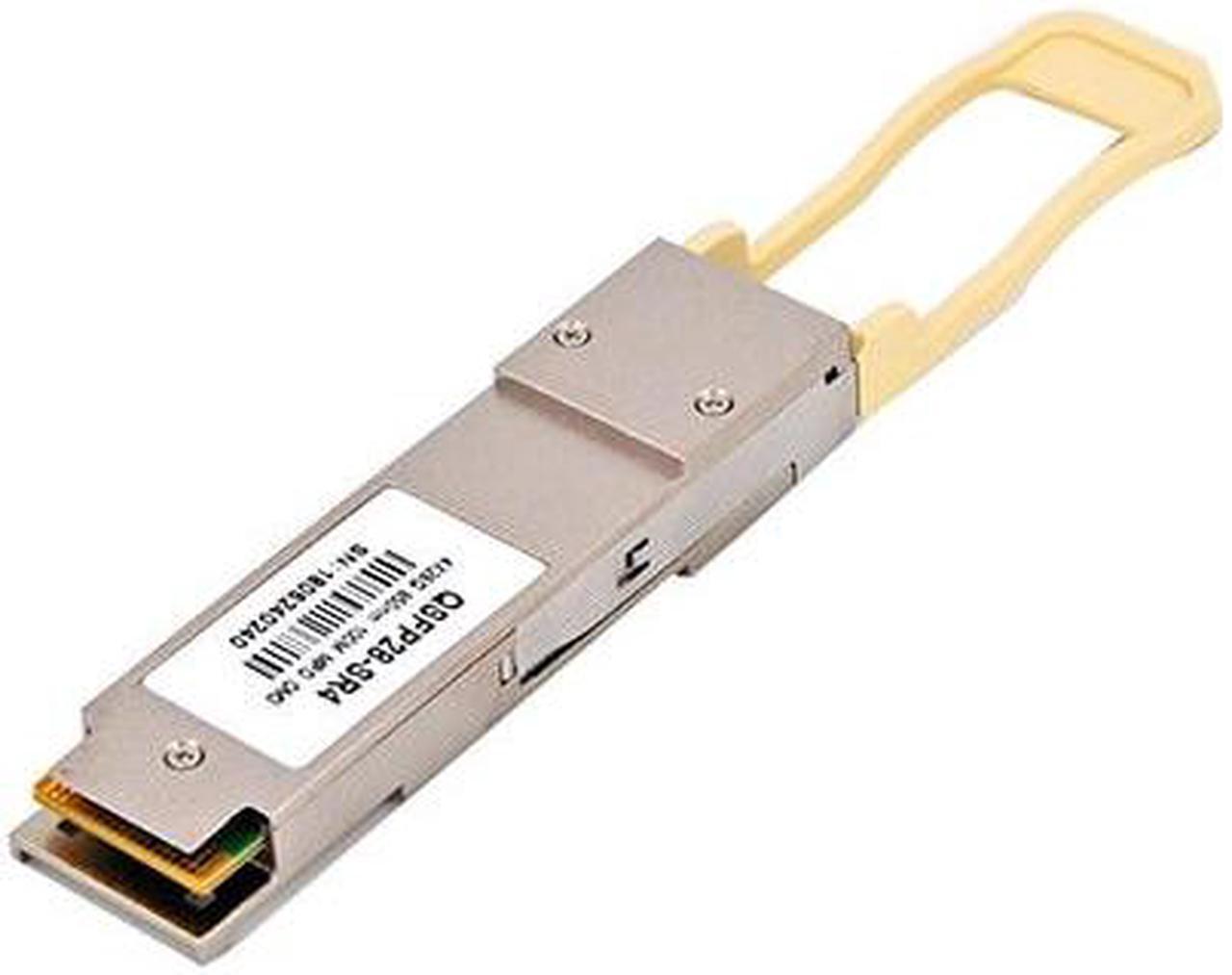

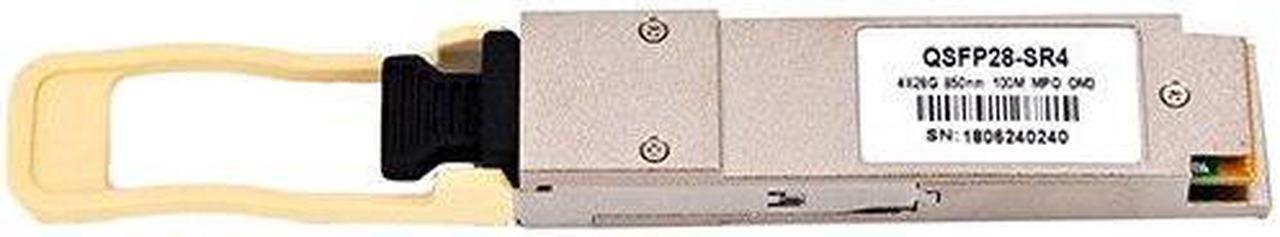

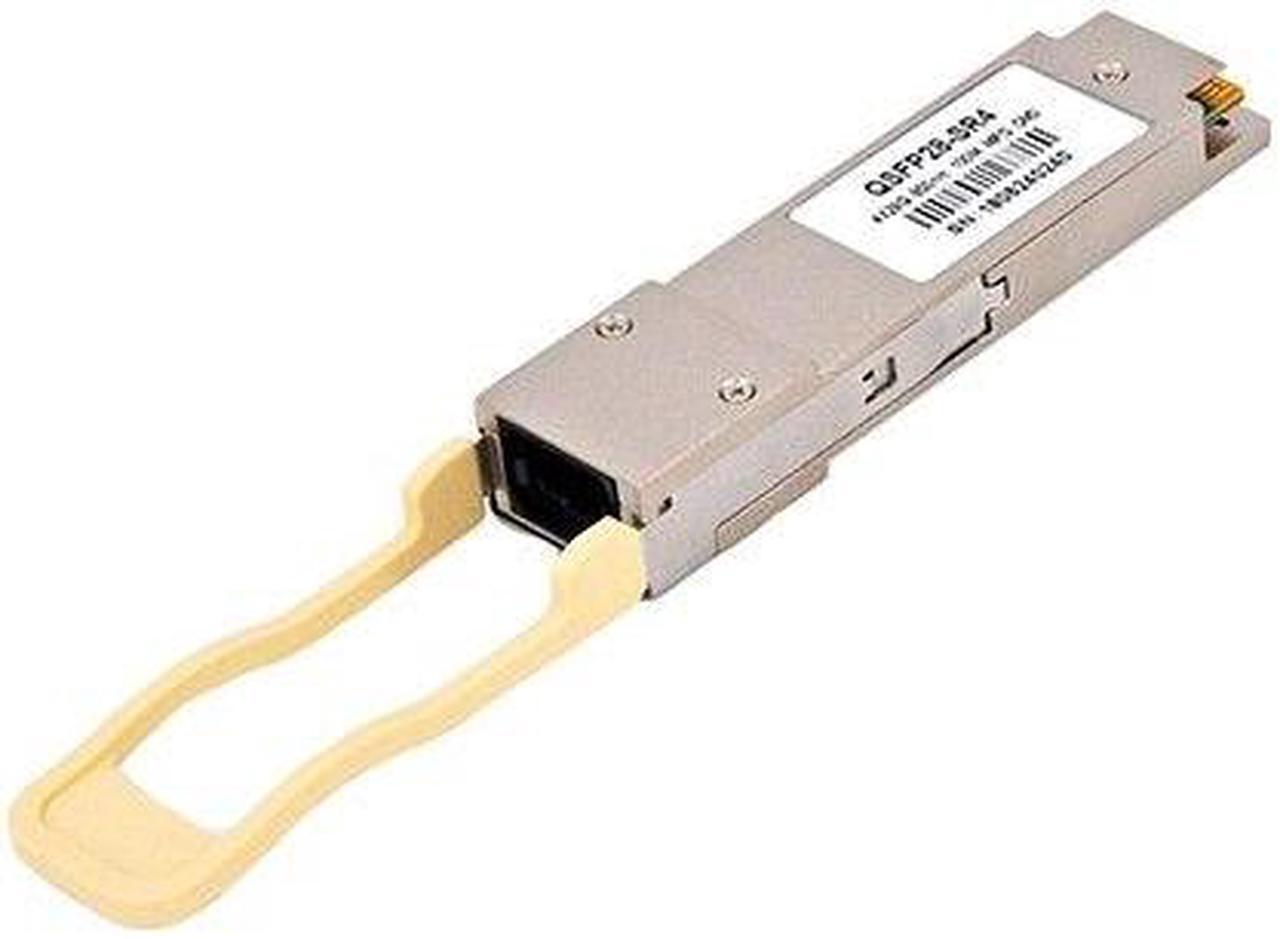

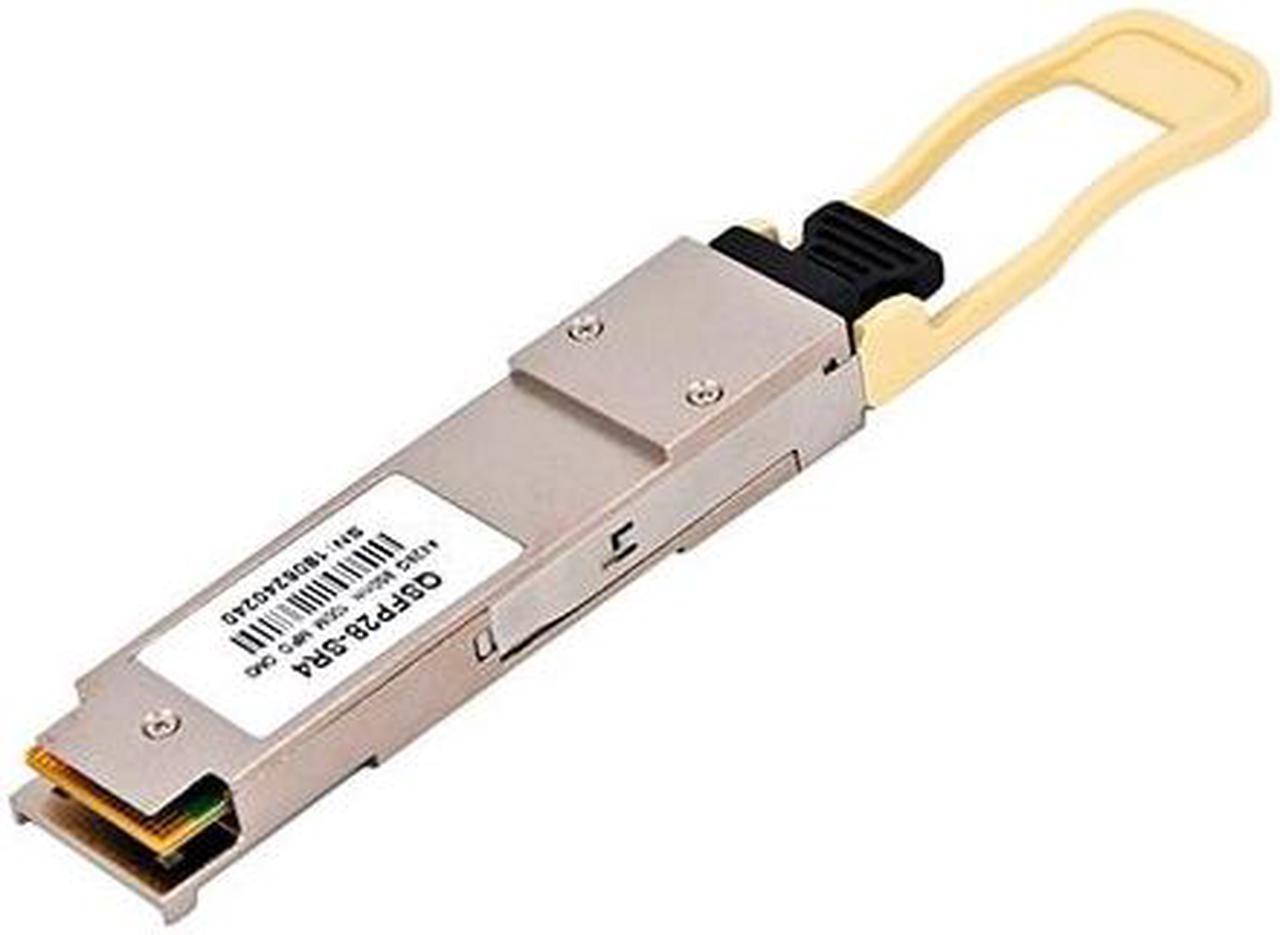

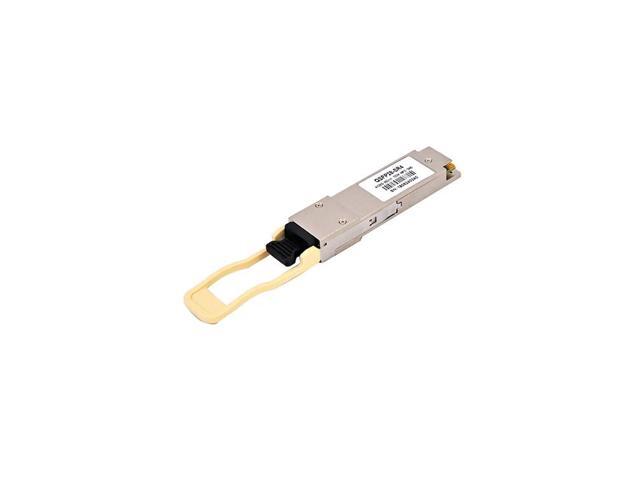

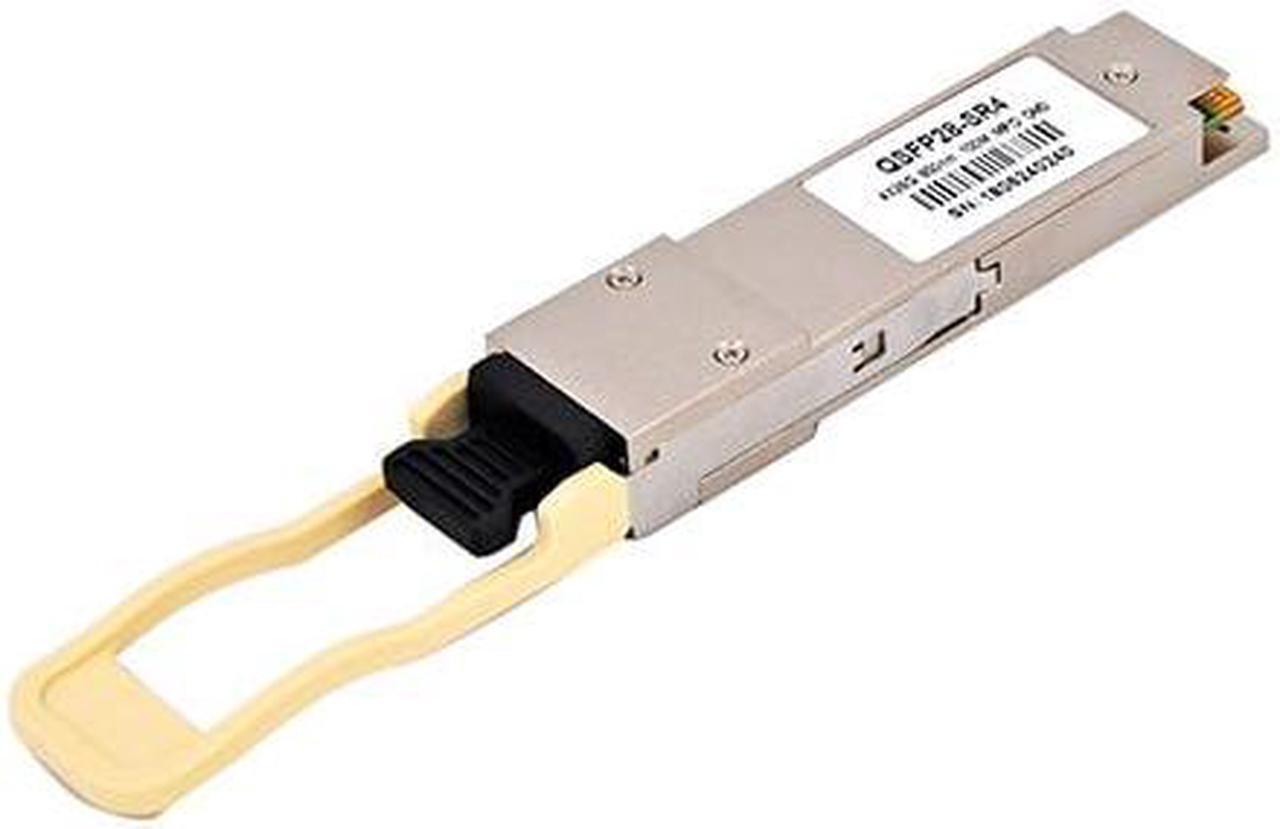

The 100G QSFP28 SR4 optical transceiver integrates the transmit and receive path onto one module. It converts parallel electrical input signals into parallel optical signals, by a driven Vertical Cavity Surface Emitting Laser (VCSEL) array. The transmitter module accepts electrical input signals compatible with Common Mode Logic (CML) levels. All input data signals are differential and internally terminated. The receiver module converts parallel optical input signals via a photo detector array into parallel electrical output signals. The reCML) levels. All data signals are differential and support a data rates up to 27.9525G b/s per channel.

ceiver module outputs electrical signals are also voltage compatible with Common Mode LogicOn This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface
Product Features
MTP/MP0 optical connector
Single + 3.3V power supply
Hot-pluggable QSFP28 MSA form factor
Up to 100m OM4 MMF Distance
4x28G Electrical Serial Interface (CEI-28G-VSR)
AC coupling of CML signals
Low power dissipation(Max: 3.5W )
Built in digital diagnostic function
Operating case temperature range: 0 to 70
Compliant with 100GBASE-SR4
I2C Communication Interface
Applications
Electrical Characteristics (TOP = 0 to 70 C, VCC = 3.13 to 3.47 Volts
ParameterSymbolMinTypMaxUnitNote
Data Rate per Channel - 10.312511. 2Gbps
Power Consumption- 2.53. 5W
Supply Current Icc 0.751A
Control I/O Voltage-HighVIH2VccV
Control I/O Voltage-LowVIL 00.7V
Inter-Channel SkewTSK150Ps
RESETL Duration10Us
RESETL De-assert time100ms
Power On Time100ms
Transmitter
Single Ended Output Voltage Tolerance 0.34V 1
Common mode Voltage Tolerance15mV
Transmit Input Diff VoltageVI1201200mV
Transmit Input Diff ImpedanceZIN80100120
Data Dependent Input JitterDDJ 0.1UI
Data Input Total JitterTJ 0.28UI
Receiver
Single Ended Output Voltage Tolerance 0.34V
Rx Output Diff VoltageVo600800mV
Rx Output Rise and Fall VoltageTr/Tf35ps1
Total JitterTJ 0.7UI
Deterministic JitterDJ 0.42UI
