Product Description

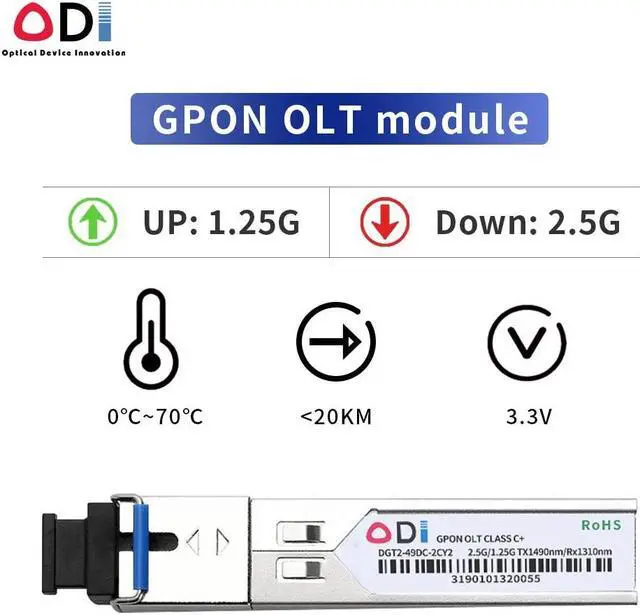

C+ FTTX networks Gpon olt sfp transceiver with cisc aruba ibm NSN j4859d hpe switch
Features
1. Single Power Supply 3.3V
2. Small Form-factor Pluggable (SFP)
3. Digital diagnostic monitor compatible with SFF-8472
4. Compliant with ITU-T G. 984.2
5. Integrated WDM filter for dual wavelength Operate at 1490 Tx/ 1310nm Rx
6. 1490nm DFB continuos-mode transmitter
7. 1310nm burst-mode APD-TIA receiver
8. LVTTL transmitter disable input and transmitter fault output
9. Hot pluggable capability
10. LVPECL compatible data input/output interface

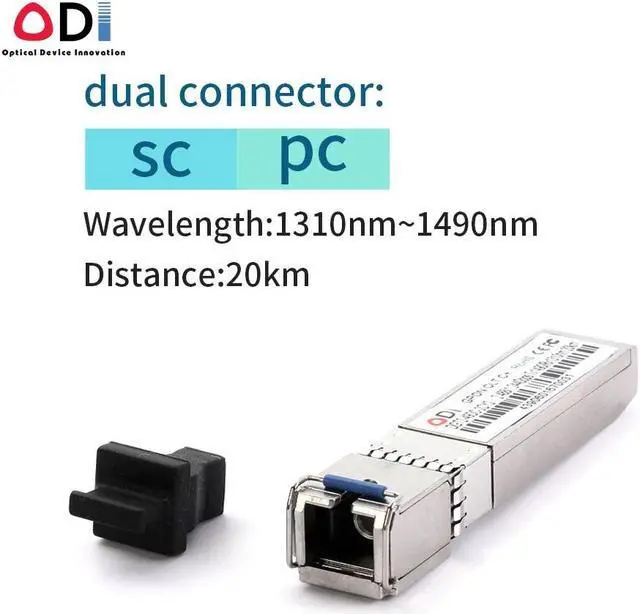

11. SC Receptacle optical connector
12. compliant with ROHS standard
Applications

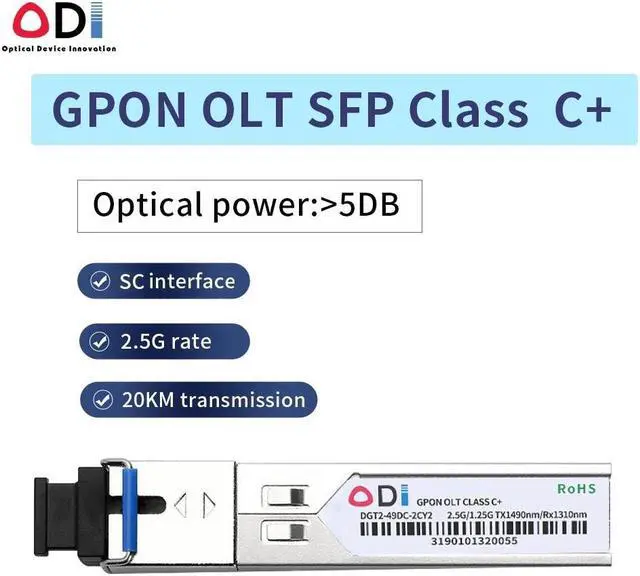

Gigabit Ethernet Passive Optical Networks (GPON CLASS C+) OLT side
Specification
Absolute maximum ratings
Parameter
Symbol
Min.
Max.
Unit
Storage Temperature
T
s
-40
+85

Operating Temperature
T
op
0
+70

Supply Voltage
V
cc
- 0.5
+ 3.6
V
Power Supply Current
I
cc
-
400
mA
Voltage at any Input Pin
V
IN
0
V
CC
V
Recommended Operating Conditions
Parameter
Symbol
Min.
Typ
Max.
Unit
Operating Temperature
T
op
0
-
+70

Supply Voltage
V
cc
3.1
3.3
3.5
V
Tx Data Rate
-
-
2488
-
Mb/s
Rx Data Rate
-
-
1244
-
Mb/s
