Product Description

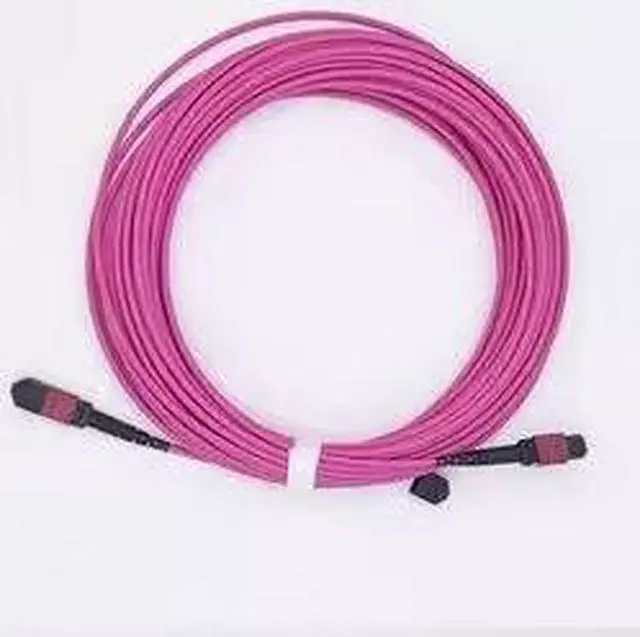

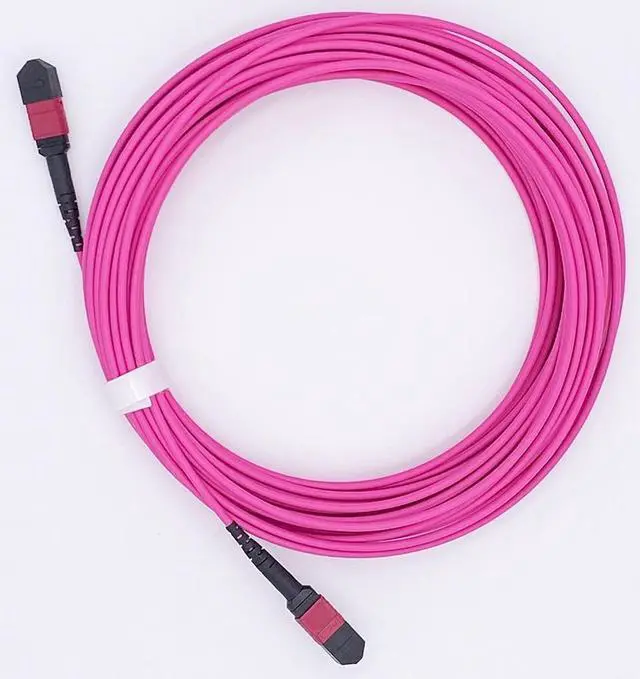

MPO MTP patch cord
MPO Fiber Patch Cord are terminated with MPO connector on both end. All of OMCs MPO Connectors are from Taiwan, Japan etc. MPO patch cord is a kind of high density cable assemblies which is generally use in three areas.
1. The Data Center application with high dense degree environment
2. The optical fiber to the building
3. The internal connector application in fiber equipment.
MTP fiber jumper is a transmission medium used between data center equipment, from MTP connectors, MTP connectors are designed by Conec Corporation of the United States with multiple innovative high-performance multi-core end push-in MPO connector, compared to ordinary MPO connectors, its optical and mechanical performance has been very goodly enhanced.
MPO MTP products Standard:
Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5 (FOCIS5); Telcordia GR-1435-CORE compliant
Structured cabling per TIA-568-C
Parallel Optics
Optical Internetworking Forum (OIF) Compliant
InfiniBand Compliant
InfiniBand
10G Fiber Channel Compliant
40G and 100G IEEE 802.3
QSFP
Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4, 8, 12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
MPO Connector Types

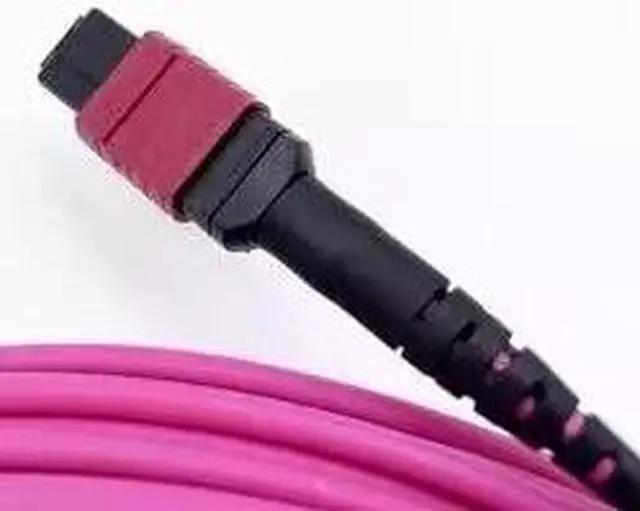

MPO MTP Male with Pins

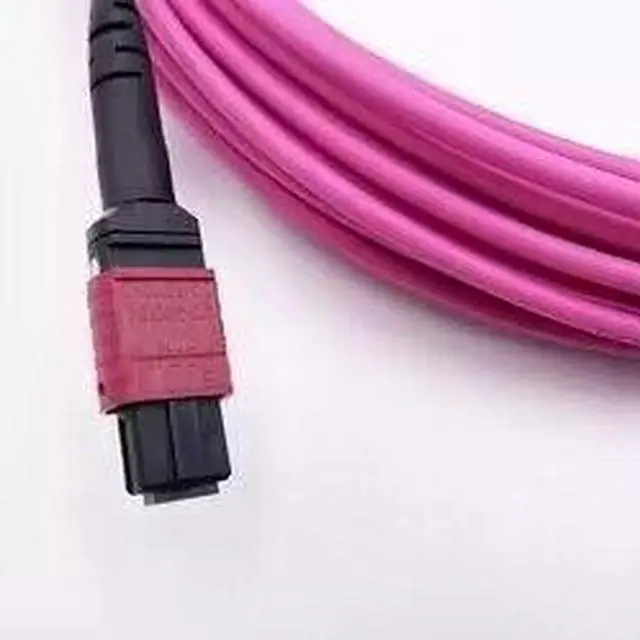

MPO MTP Female without Pins

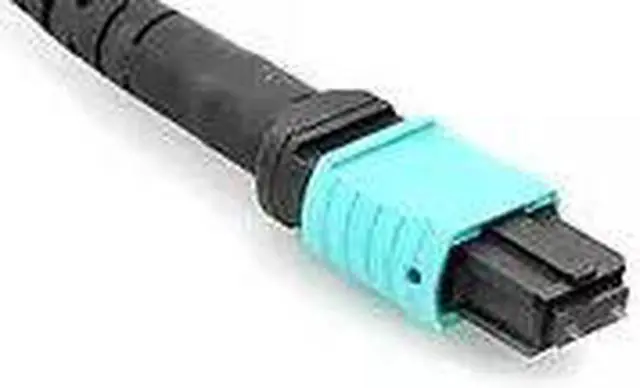

Two other clearly visible features are the noses and guide grooves (keys) on the top side.
(Note: Female connector need to connect with male connector type. )
Pre-terminated MPO MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MPO -LGX Cassette, you can choose any of the polarities as you need.
MPO MTP patch cords Specification:
MPO MTP Interference index
Connector type
Testing items
Min
Max
MPO PC
ROC_X (abs) (mm)
500
\
ROC_Y (abs) (mm)
50
\
Angle_X (deg)
- 0.2
0.2
Angle_Y (deg)
- 0.2
0.2
Max. DH. All Fiber (nm)
-600
600
Max. DH. Ave (nm)
-300
300
Max. DH. Adj (nm)
-300
300
Max. Core Dip (nm)
-300
300
Fiber height (nm)
-300
300
ROC_X (abs) (mm)
1000
3000
MPO APC
ROC_X (abs) (mm)
500
\
ROC_Y (abs) (mm)
50
\
Angle_X (deg)
- 0.2
0.2
Angle_Y (deg)
7.8
8.2
Max. DH. All Fiber (nm)
-600
600
Max. DH. Ave (nm)
-300
300
Max. DH. Adj (nm)
-300
300
Fiber height (nm)
