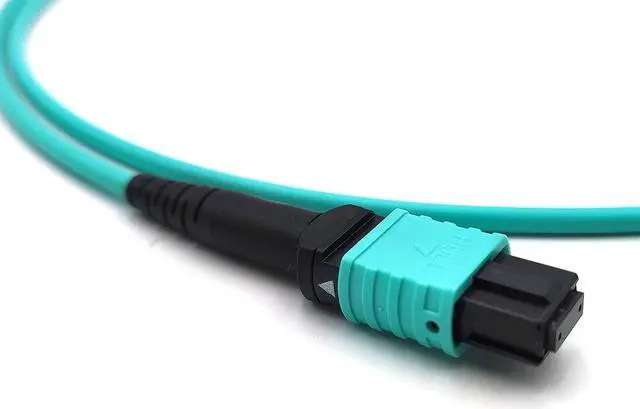

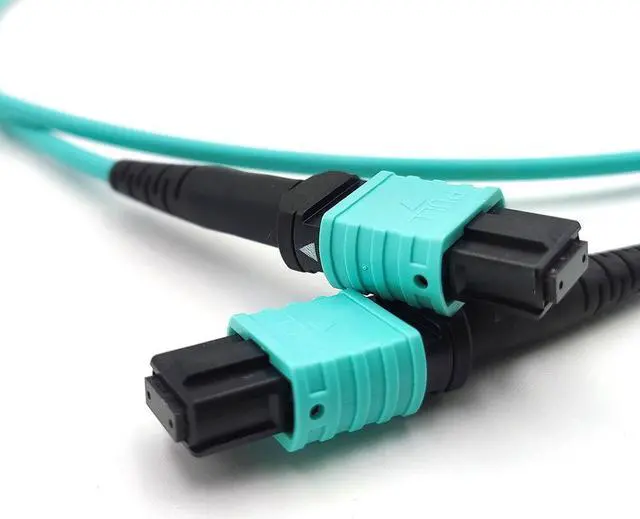

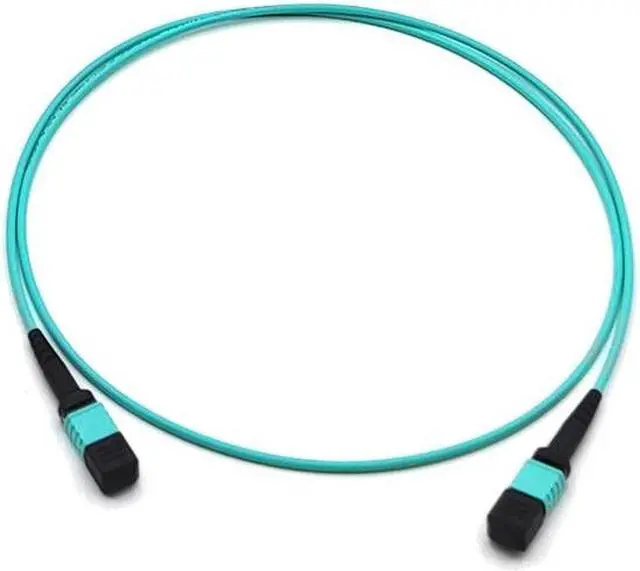

10 Years Mpo Om3 12 Cores Mpo Fiber Patch Cord Fiber Optic Mpo Patch Cable Price

Product Description
Features:
1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2.3D interferometer provides verification of MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
4. All kinds mpo for choice like SENKON, NISSIN, USCONEC.
MTP products Standard:
-Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5 (FOCIS5); Telcordia GR-1435-CORE compliant
-Structured cabling per TIA-568-C
-Parallel Optics
--Optical Internetworking Forum (OIF) Compliant
--InfiniBand Compliant
-InfiniBand
-- 10G Fiber Channel Compliant
-- 40G and 100G IEEE 802.3
-- QSFP
Specification.
Connector A
MPO female
Connector B
MPO female
Fibre Category
OM3
Fiber Count
12
Fiber Typesimplex
Wavelength
850nm/1310nm
Cable Jacket
3.0 mm LSZH
Polarity
B (or A, C)
Insertion loss, max.
0.35 dB
Return Loss, Min.
55dB
Cable Length
10m or customized
Durability
500 times
Min. Bend Radius Installation
29 mm
Min. Bend Radius Operation
15 mm
Tensile strength
400 N
Crush resistance (Reversible)
750 N/10 cm
