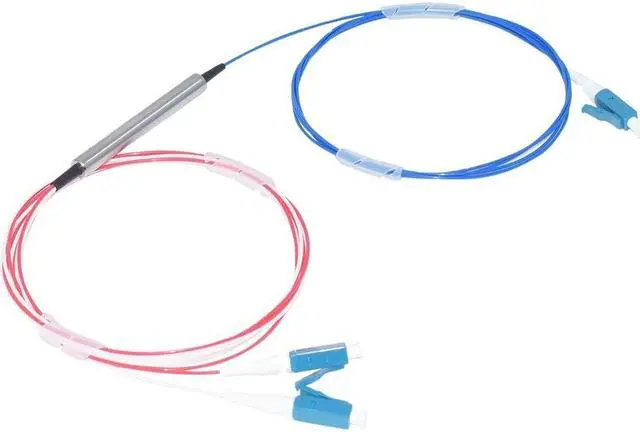

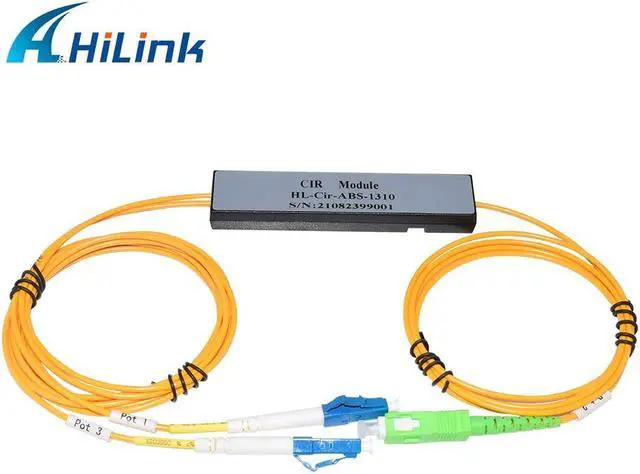

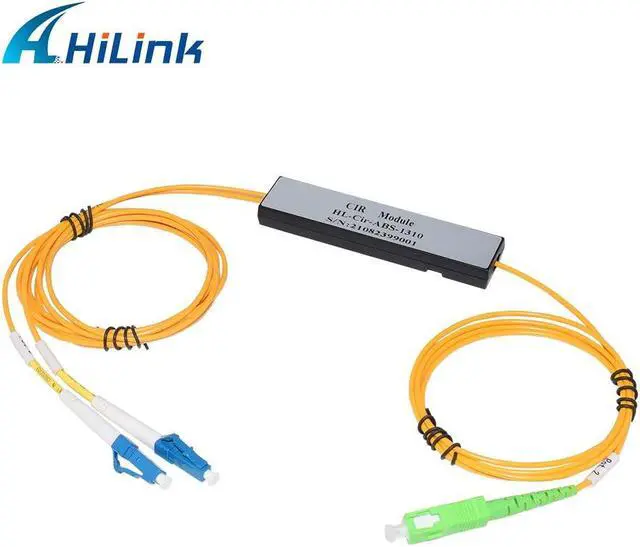

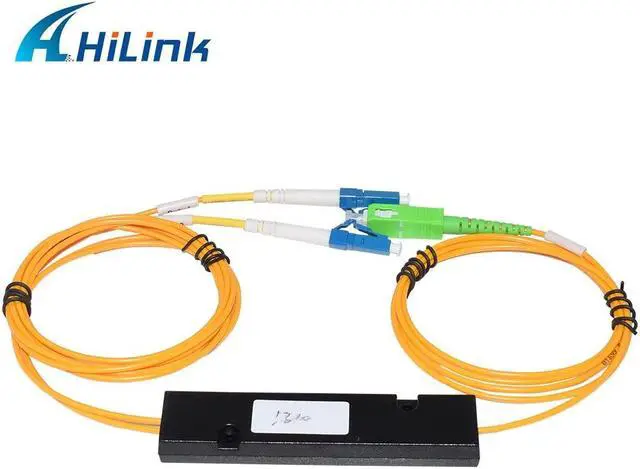

1310nm, 1550nm 3 Ports Polarization Insensitive Optical Circulator, Steel Type/ABS Box Type Fiber Optic Circulator For DWDM

1310nm, 1550nm 3 Ports Polarization Insensitive Optical Circulator, Steel Type/ABS Box Type Fiber Optic Circulator For DWDM, EDFA LC UPC APC Connectors
Product Description
Fiber Optical Circulator 1310nm
Features:
High Channel Isolation
Low Insertion Loss
High Return Loss
Low PDL
High Stability and Reliability
Compact in-Line Package
Epoxy Free Optical Patch
Application:
Optical Fiber Amplifier
CATV Optical Fiber Link
Optical Fiber System testing
Wavelength Add/Drop
Dispersion Compensation
Bi-Direction Communication
Optical Circulator Parameter:
Grade
GRADE P
GRADE A
Construction
Port1 to Port 2, Port2 to Port3
Operation Wavelength (nm)
1310/1550/ 1585
Standard Input Loss (23C)
0.6
0.8
Max. Insertion Loss (23C)
0.8
1
Max. Isolation (dB)
50
Min. Isolation (dB)
40
Directivity (dB)
50
PDL (dB)
0.15
PMD (ps)
0.1
RL (dB)
50
Bandwidth (nm)
+/-30
Max. Operating Power (mw)
500
Operating Temperature (C)
0~70
Storage Temperature (C)
-40~85
Dimension (mm)
5.5 xL50 or 90*20* 9.5
