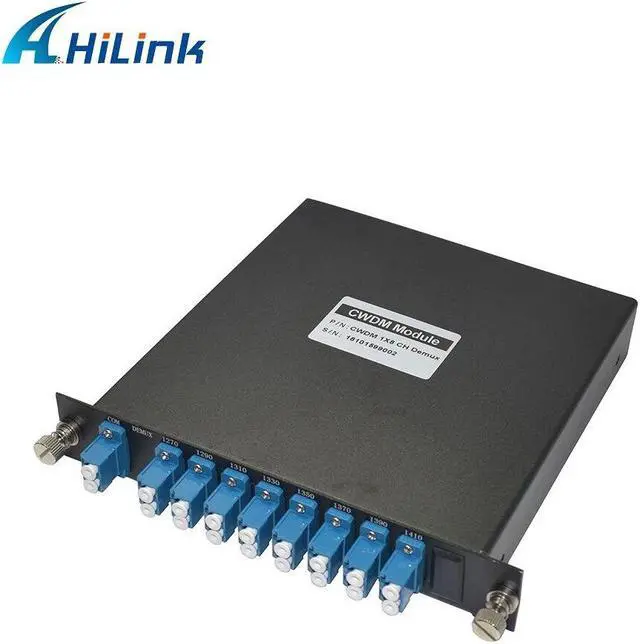

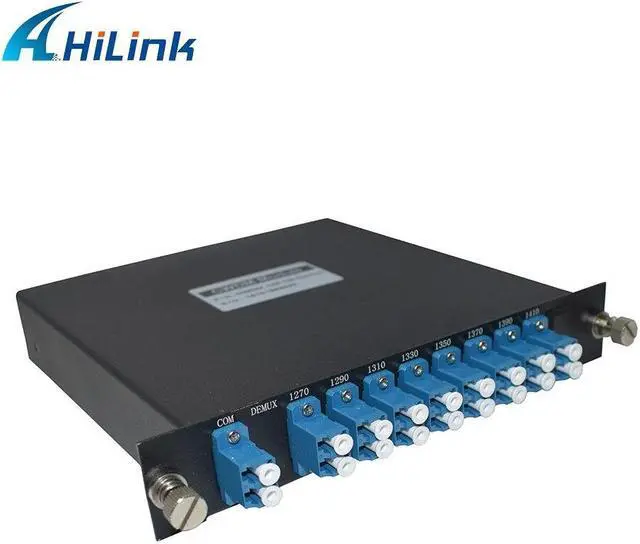

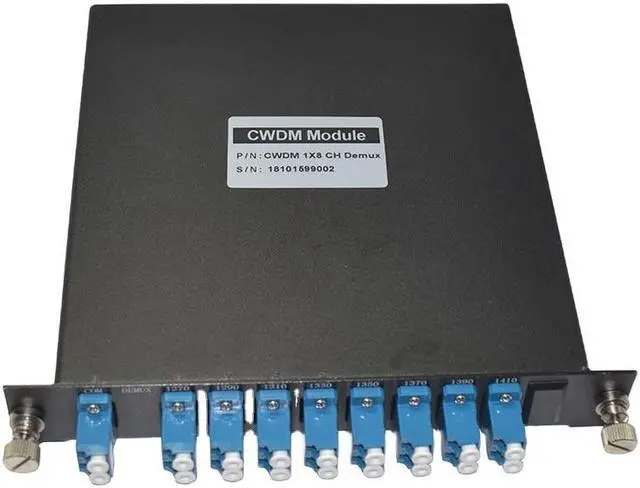

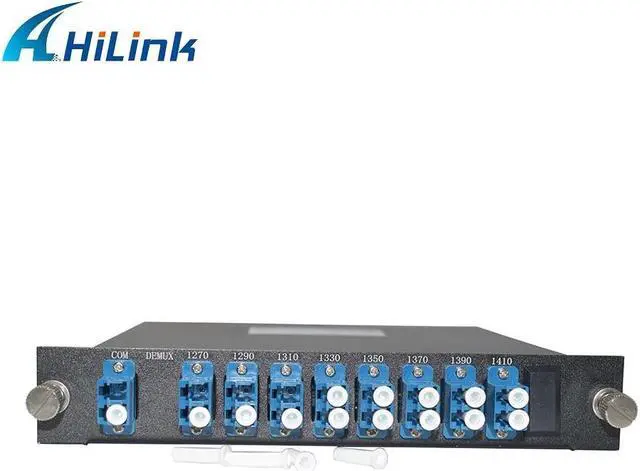

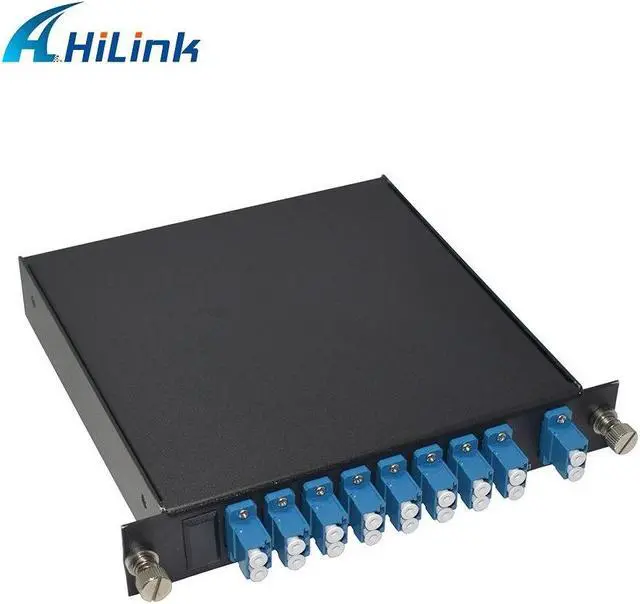

Passive products Single fiber 8CH Filters 8 channel Mux Demux 1270~1470nm LGX package

Product Description
Passive products 8CH Filters 8 channel Mux Demux 1270~1470nm
1. Features
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength
From 1260nm to 1620nm
Wide Operating Temperature
From -40C to 85C
High Reliability and Stability
2. Applications
System
PON Networks
CATV Links
3. Performance

Specifications

Parameter
4 Channel
8 Channel
18 Channel
Mux
Demux
Mux
Demux
Mux
Demux
Channel Wavelength (nm)
1270~1610
Center wavelength Accuracy (nm)
0.5
Channel Spacing (nm)
20
Channel Passband (@- 0.5 dB bandwidth (nm)
>13
Insertion Loss (dB)
1.6
2.5
3.0
Channel Uniformity (dB)
0.6
1.0
1.5
Channel Ripple (dB)
0.3
Isolation (dB)
Adjacent
N/A
>30
N/A
>30
N/A
>30
Non-adjacent
N/A
>40
N/A
>40
N/A
>40
Inertion Loss Temperature Sensitivity (dB/C)
<0.005
Wavelength Temperature Shifting (nm/C)
<0.002
Polarization Dependent Loss (dB)
<0.1
Polarization Mode Dispersion
<0.1
Directivity (dB)
>50
Return Loss (dB)
>45
Maximum Power Handling (mW)
300
Opterating Temperature (C)
-5~+75
Storage Temperature (C)
-40~85
Package dimension (mm)
L100 x W80 x H10 or L140xW100xH15
Notes:
1. Specified without connectors.
2. Add an additional 0.2 dB loss per connector.
