Product Description
MPO cable assemblies are with 12 core MPO connector male to male. cable type OS1, the cable is widely used for cable expanding in the data center.
Features
12 core cable connection
OS1 fiber optic cable
Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement
Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy for storage and cable install
Use dustproof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage

Specifications

MTP/MPO Connector
Fiber ModeSingle ModeMultimode
Insertion Loss (dB) 0.70 (Standard) 0.70 (Standard)
0.35 (Elite) 0.35 (Elite)
Return Loss (dB)
6020
Durability (dB) 0.2 (500 times mating)
Tensile Strength (kgf) 10
Working Temperature ()-20 ~ +70
LC/SC/FC/ST/E2000 Connector
Fiber ModeSingle ModeMultimode
Insertion Loss (dB) 0.300. 30
Return Loss (dB) 6020
Durability (dB) 0.2 500 times mating
Tensile Strength (kgf) 10
Working Temperature ()-20 ~ +70
Fiber Specification
Fiber TypeMultimodeSingle Mode
OM1OM2OM3OM4G. 652G. 657
Core Diameter (um) 62.5 /12550/12550/12550/1259/1259/125
Wavelengths (nm) 850/1300850/1300850/1300850/13001310/15501310/1550
Max. Attenuation (dB/km) 3.5 / 1.53. 5/ 1.53. 5/ 1.53. 5/ 1.50. 36/ 0.250. 36/ 0.25
Min. OFL Bandwidth (MHzkm) 200/500500/5001500/5003500/500--
Min. Effective Modal Bandwidth (MHzkm) -50020004700--

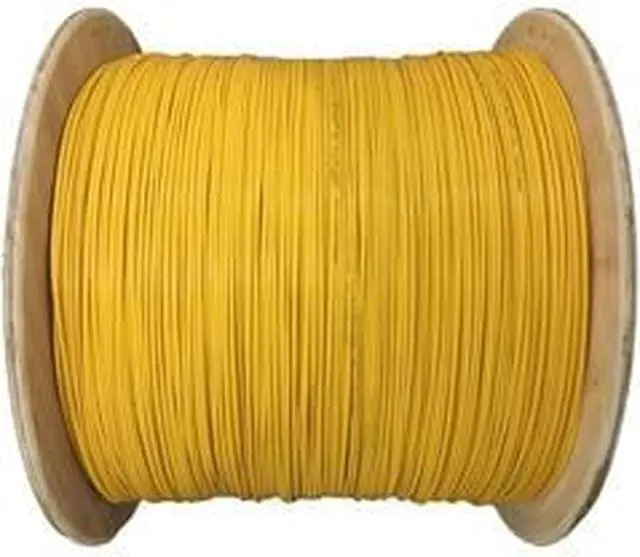

Structure:

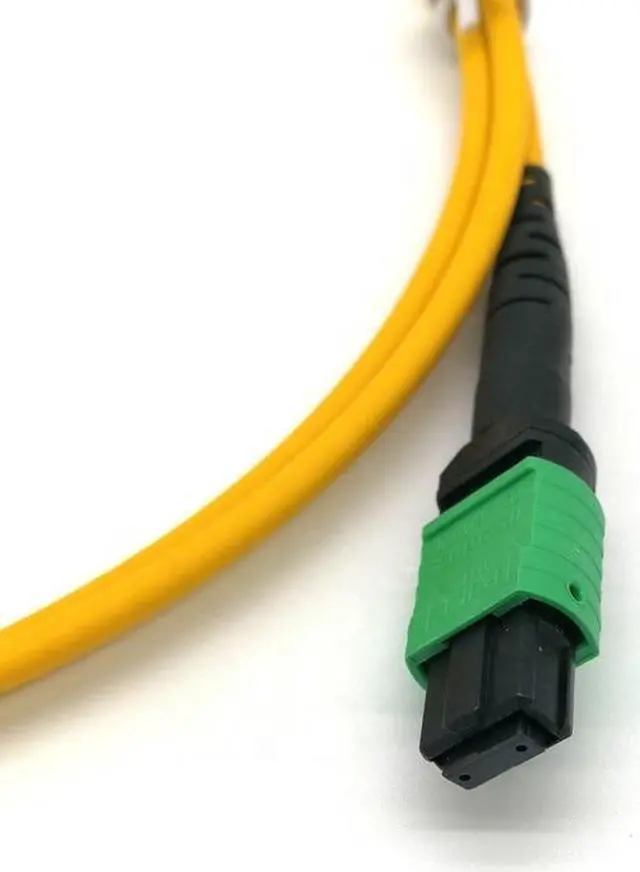

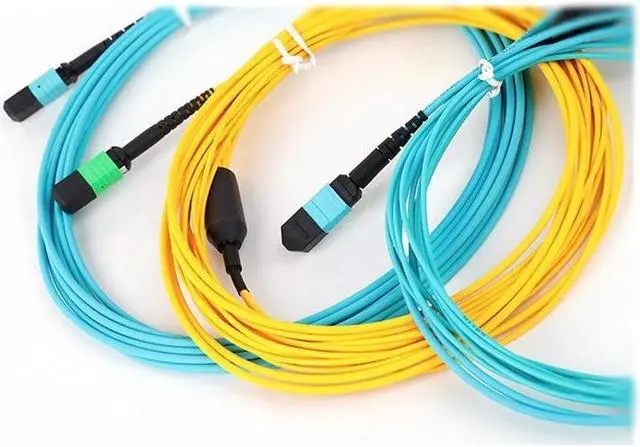

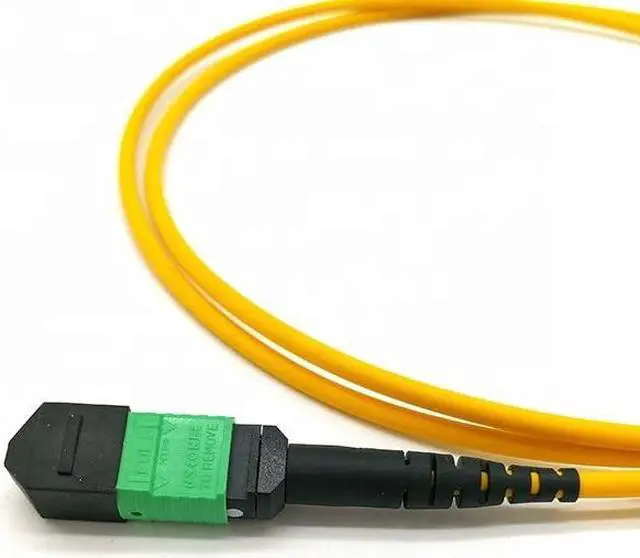

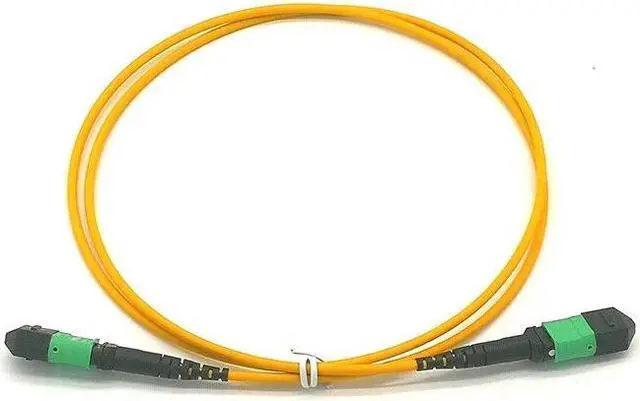

product pic:
Factory:

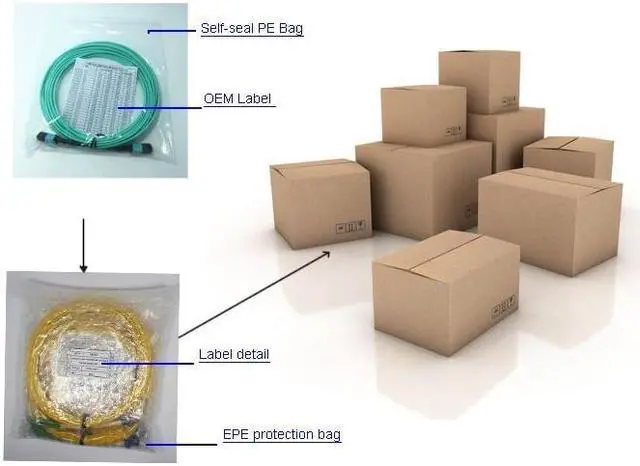

Packaging & Shipping
