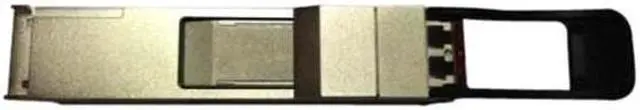

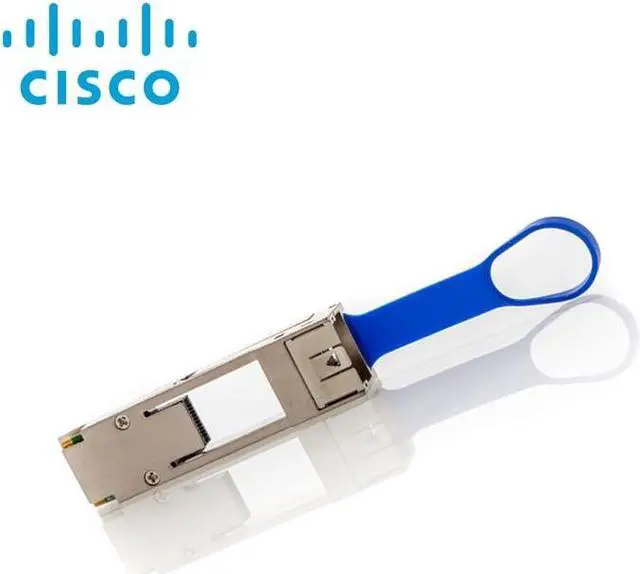

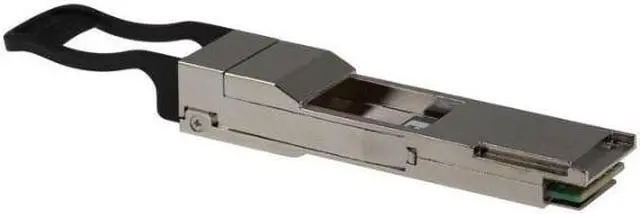

QSFP-40G-SR-BD=- 40 Gigabit Optical Modules QSFP40G BiDi Short-reach Transceiver

Product Description
QSFP-40G-SR-BD=
The 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing 00networks, enterprise core and distribution layers, and service provider applications.
Quick Specs
Table 1 shows the Quick Specs.
Product Code
QSFP-40G-SR-BD=
Description
40GBASE-SR Bi-Directional QSFP Module for Duplex MMF
Dimensions
13.5 x 18.4 x 72.4 mm
Wavelength (nm)
832 - 918
Cable Type
MMF
Core Size (microns)
50.0
50.0
50.0
Modal Bandwidth (MHz-km)
500 (OM2)
2000 (OM3)
4700 (OM4)
Cable Distance
30m
100m
150m
Power Consumption (W)
3.5
Pull Tab Color
Gray

Product Details

Features and benefits of QSFP 40G modules:
Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet QSFP port
Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
Certified and tested on QSFP 40G ports for superior performance, quality, and reliability
High-speed electrical interface compliant to the IEEE 802.3 ba standard
QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)
QSFP-40G-SR-BD= Specification
Description
40GBASE-SR Bi-Directional QSFP Module for Duplex MMF
Dimensions
13.5 x 18.4 x 72.4 mm
QSFP Port cabling specifications
Wavelength (nm)
832 - 918
Cable Type
MMF
Core Size (microns)
50.0
50.0
50.0
Modal Bandwidth (MHz-km)
500 (OM2)
2000 (OM3)
4700 (OM4)
Cable Distance
30m
100m
150m
Power Consumption (W)
3.5
Pull Tab Color
Gray
Optical characteristics
Type
40GBASE-SR-BiDi, Duplex MMF
Transmit Power (dBm)
Max: +5 per lane
Min: -4 per lane
Receive Power (dBm)
Max: + 5.0 per lane
Min: - 6.0 per lane
Transmit and Receive Wavelength (nm)
832 to 918
Environmental conditions
Commercial temperature
+10 to 70C (50 to 158F)
Storage temperature
-40 to 85C (-40 to 185F)
Regulatory and standards compliance
Standards
GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors
IEEE 802.3 ba (-SR4, -LR4)
IEEE 802.3 ae (-CSR4)
QSFP+ MSA SFF-8436
SFP+ MSA SFF-8431 and -8461
RoHS 6
Safety
Cable jacket of QSFP copper modules is UL E116441 Compliant
QSFP copper cables are ELV Compliant
