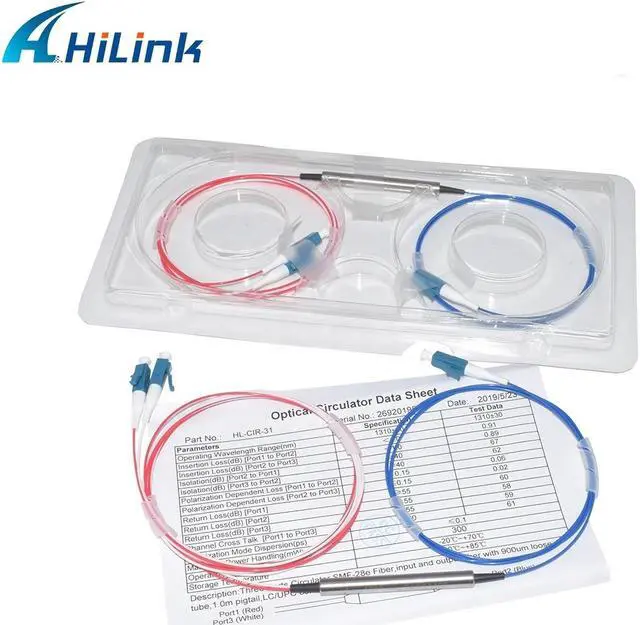

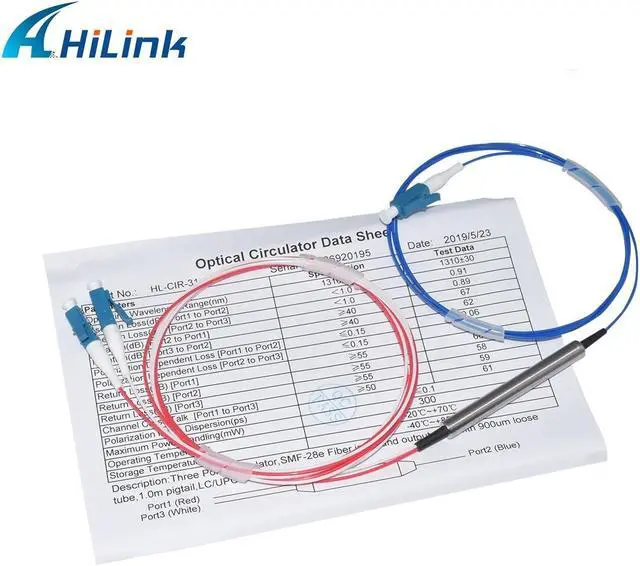

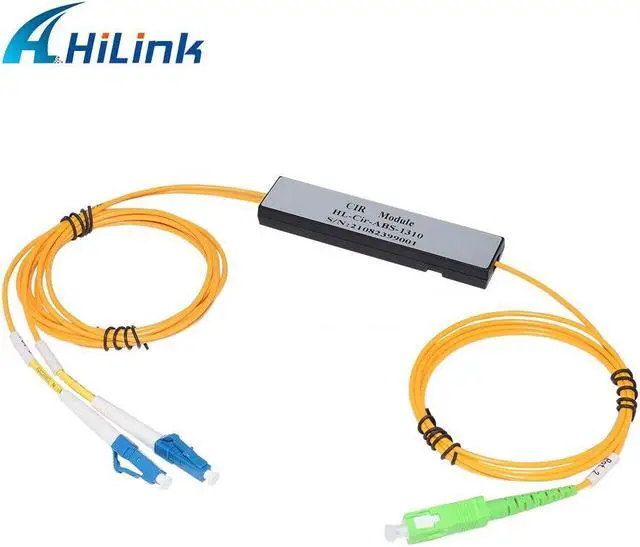

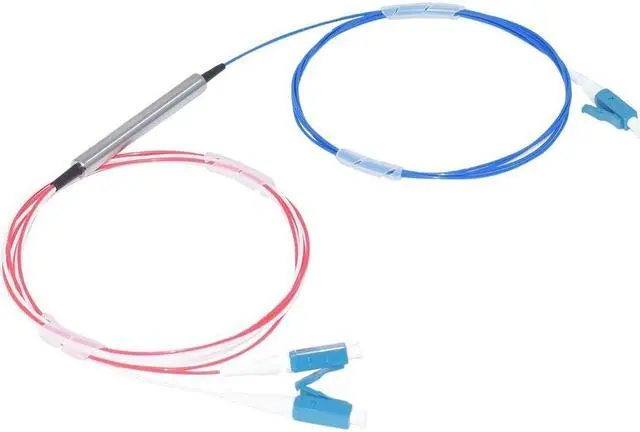

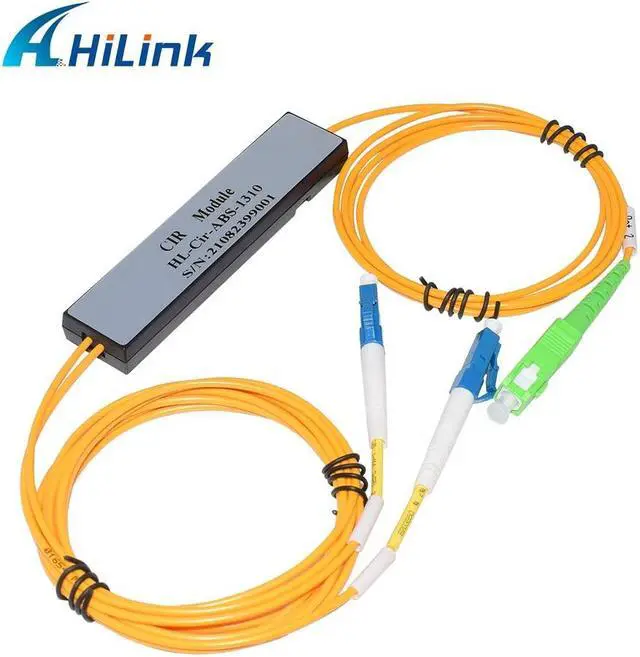

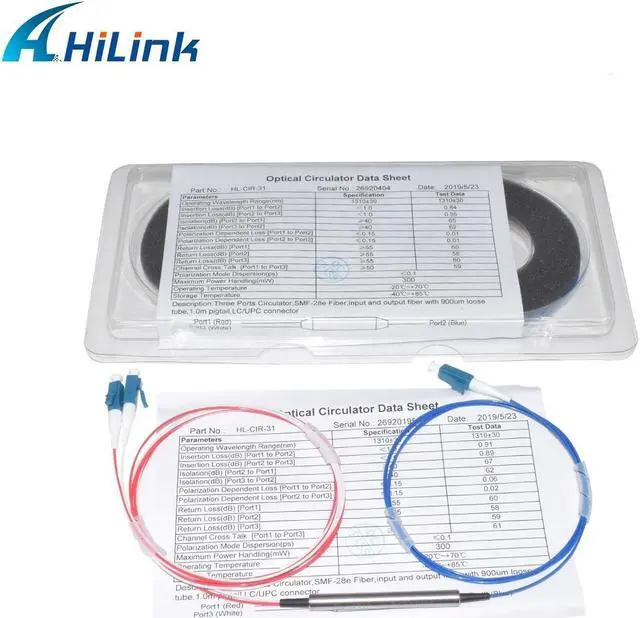

3 ports Optical Circulator 1310/1550/1610nm wavelength , LC/SC-APC/UPC optional .Steel tube/ABS BOX optional

3 ports Optical Circulator 1310/1550/1610nm
Optical Circulator
An optical circulator is a special optical passive component that can be used to separate optical powers that travel in opposite directions in one single optical fiber, analogous to the operation of an electronic circulator. An optical circulator is a three-port device that allows light to travel in only one direction - from port 1 to port 2, then from port 2 to port 3. This feature is very important to optical bidirectional transmissionand communication. Usually, it was use for optical transceiver, FBG (fiber Bragg grating) filter and optical amplifier.
The relevance parameter as follows:
Application:
Optical Amplifier
CATV OpticalLink
Optical System testing
LAN
Broadcast Communication
FEATURES:
High Channel Isolation
Low Insertion Loss
High Return Loss
Low PDL
High Stability and Reliability
Parameter
1310
1550
C&L
1610
Operating Wavelength
1280-1340
1520-1580
1525-1610
1580-1640
Construction
Port1 to Port 2; Port2 to Port3
Grade
P
Standard Input Loss (23)
0.6
Max. Insertion Loss (23)
0.8
Max. Isolation (dB)
50
Min. Isolation (dB)
40
Directivity (dB)
50
PDL (dB)
<0.15
PMD (ps)
> 0.1
RL (dB)
>50
Bandwidth (nm)
+/-30
Max. Operating Power (mw)
500
Operating Temperature()
0~70
Storage Temperature()
-40~85
Fiber type
Corning SMF-28e+
Connector
Customized
Dimension (mm)
5.5 xL50/38x 5.5 ( 0.9 mm loose tube )
L90xW20xH 9.5 ( 2.0 mm or 3.0 mm cable)
Product
Port
Centre Wavelength
Grade
Pigtail Type
Fiber length
Connector Type
Optical Circulator
3=3 Port
13=1310nm
15=1550nm
16=1585-1640nm
C&L=1525-1610nm
P=Grade P
A=Grade A
A=250um bare fiber
B=900um Loose tube
C= 2.0 mm loose tube
D= 3.0 mm loose tube
1=1m
1.5 = 1.5 m
2=2m
....
Others
0=None
1=FC/APC
2=FC/PA
3=SC/APC
4=LC/PC
5=LC/APC
6=SC/PC
7=others
