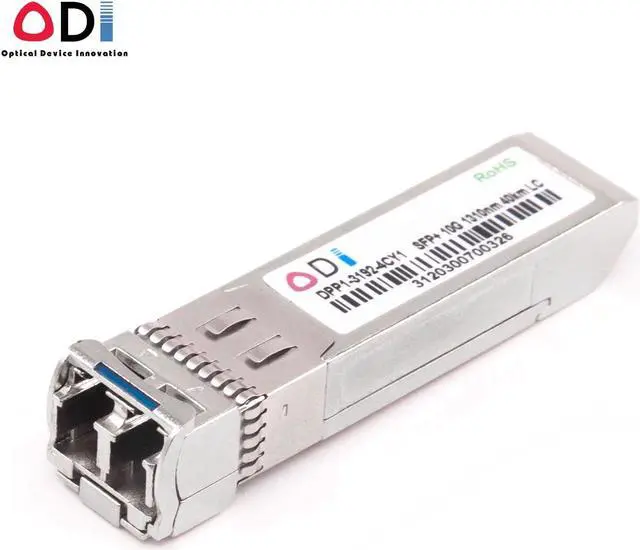

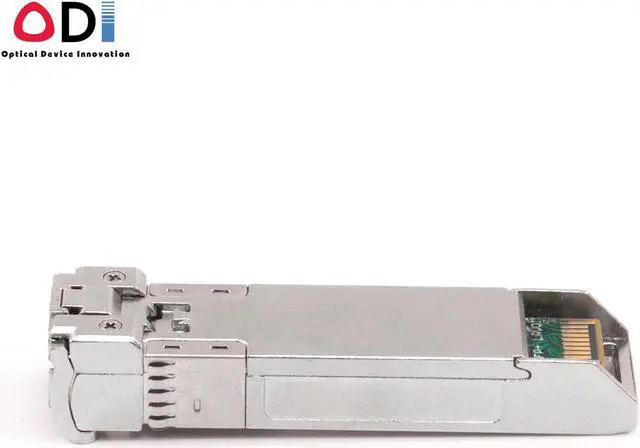

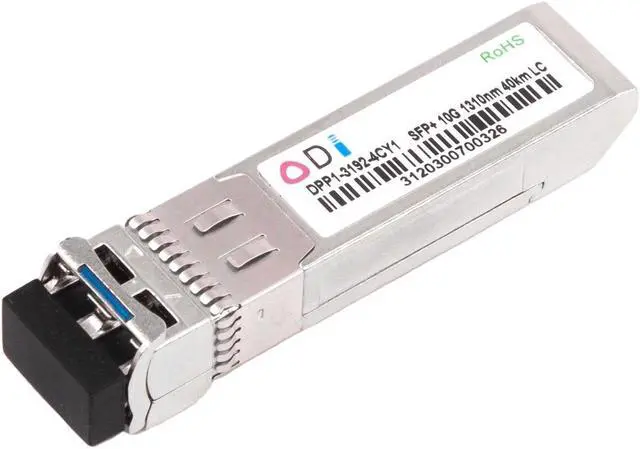

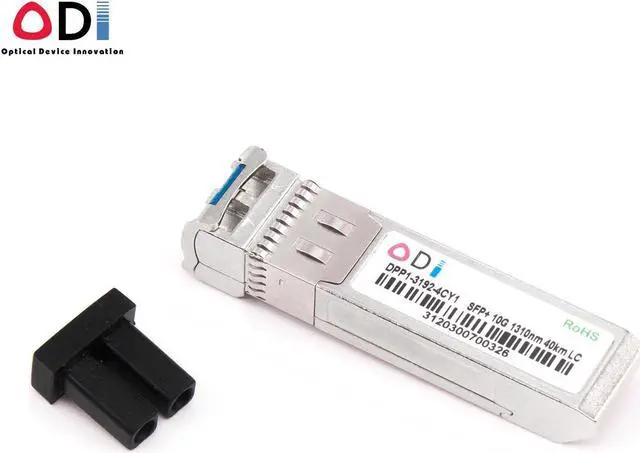

10G Dual fiber 1310nm LC 40KM FTTX Fiberhome Network Solution SFP Module Fiber Optic Equipment
- 10G Dual fiber 1310nm LC 40KM FTTX Fiberhome Network Solution SFP Module Fiber Optic Equipment
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
10G Dual fiber 1310nm LC 40KM FTTX Fiberhome Network Solution SFP Module Fiber Optic Equipment 1. Single Power Supply 3.3V
2. Small Form-factor Pluggable (SFP)
3. Digital diagnostic monitor compatible with SFF-8472
4. Compliant with ITU-T G. 984.2
5. Integrated WDM filter for dual wavelength Operate at 1490 Tx/ 1310nm Rx
6. 1490nm DFB continuos-mode transmitter
7. 1310nm burst-mode APD-TIA receiver
8. LVTTL transmitter disable input and transmitter fault output
9. Hot pluggable capability
10. LVPECL compatible data input/output interface
11. SC Receptacle optical connector
12. compliant with ROHS standard
Applications
Gigabit Ethernet Passive Optical Networks (GPON CLASS B+) OLT side
Specification
Absolute maximum ratings
Parameter
Symbol
Min.
Max.
Unit
Storage Temperature
TS
-40
+85
Operating Temperature
Top
0
+70
Supply Voltage
VCC
- 0.5
+ 3.6
V
Power Supply Current
ICC
-
400
mA
Voltage at any Input Pin
VIN
0
Vcc
10G Dual fiber 1310nm LC 40KM FTTX Fiberhome Network Solution SFP Module Fiber Optic Equipment 1. Single Power Supply 3.3V
2. Small Form-factor Pluggable (SFP)
3. Digital diagnostic monitor compatible with SFF-8472
4. Compliant with ITU-T G. 984.2
5. Integrated WDM filter for dual wavelength Operate at 1490 Tx/ 1310nm Rx
6. 1490nm DFB continuos-mode transmitter
7. 1310nm burst-mode APD-TIA receiver
8. LVTTL transmitter disable input and transmitter fault output
9. Hot pluggable capability
10. LVPECL compatible data input/output interface
11. SC Receptacle optical connector
12. compliant with ROHS standard
Applications
Gigabit Ethernet Passive Optical Networks (GPON CLASS B+) OLT side
