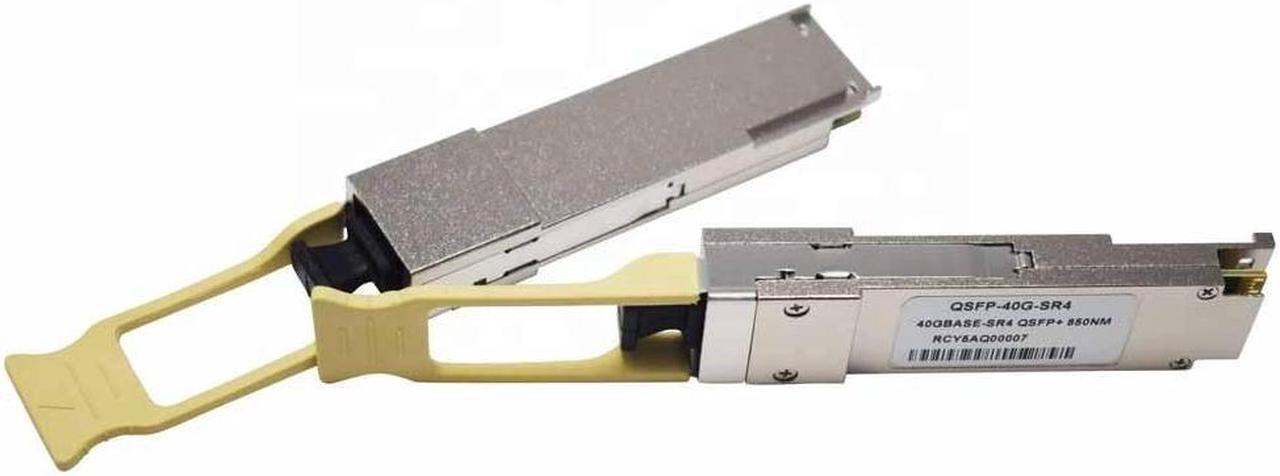

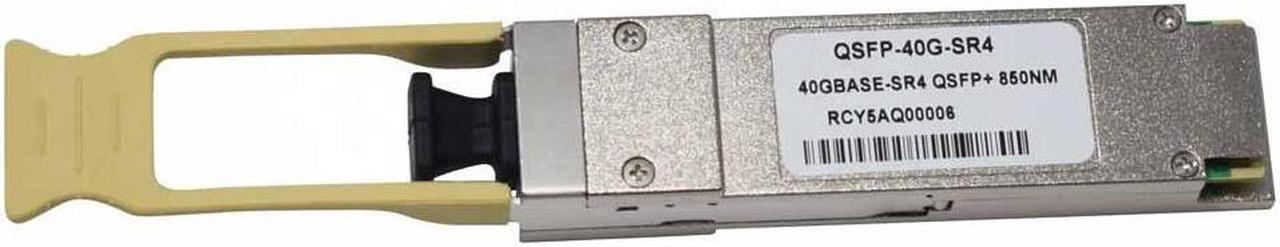

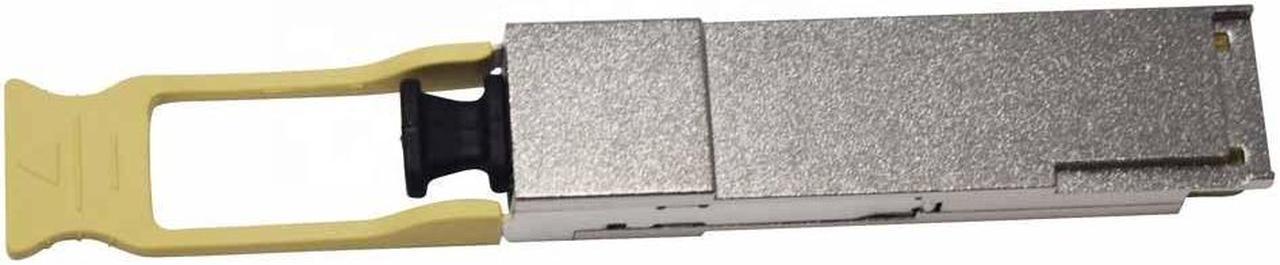

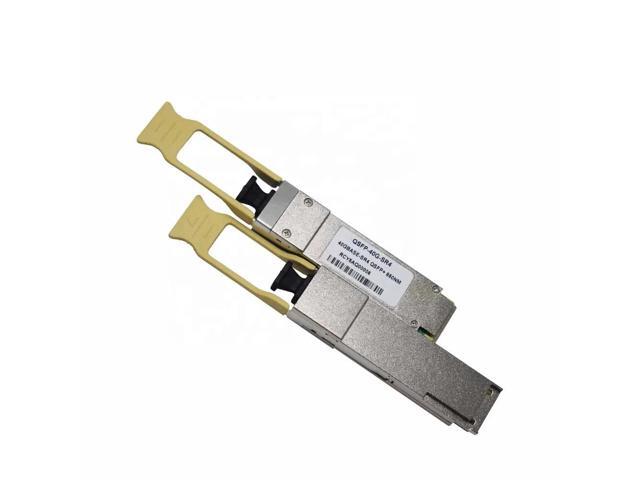

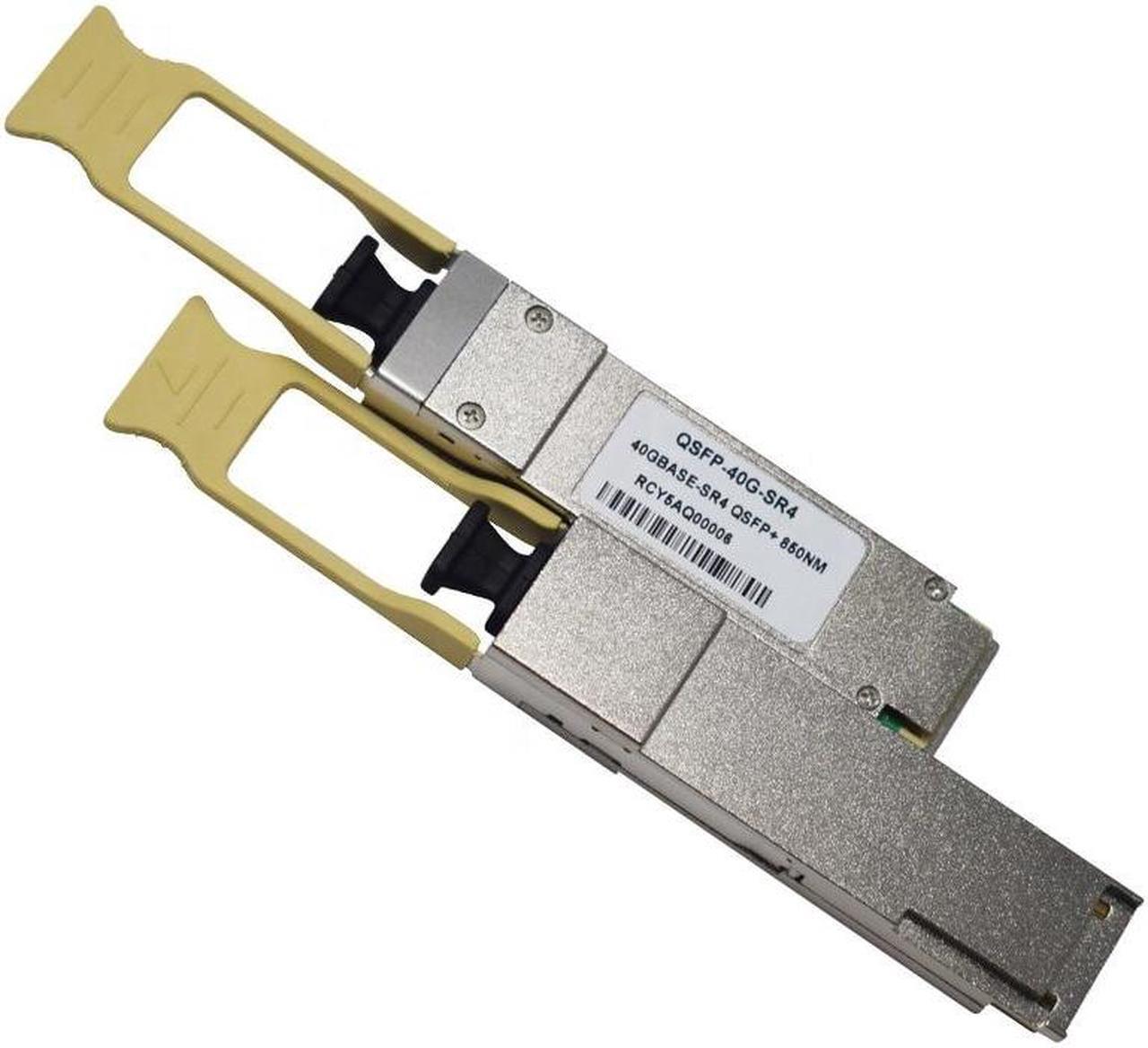

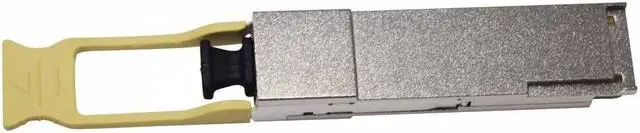

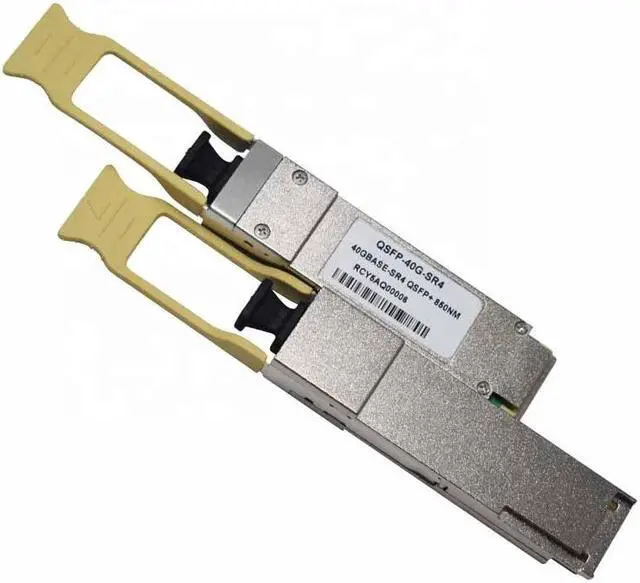

40GBASE QSFP+ Optical Transceiver QSFP-40G-SR4 Module Network MPO Server Switch 40Gbps

Products Show
The 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.
Product Description
The 40GBASE-SR4 QSFP+ Module supports link lengths of 100m respectively on laser-optimized OM3 and OM4 multimode fiber cables. It primarily enables high-bandwidth 40G optical links over 12-fiber ribbon r cables terminated with MPO/MTP multi-fiber connectors. It can also be used in 4x10G mode along with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR optical interfaces. Maximum channel insertion loss allowed is respectively 1.9 dB over 100m of OM3 cable or 1.5 dB over.
Features
* 40GBASE-SX Quad Small Form-factor Pluggable Plus (QSFP+);
* Standards based 40-Gigabit Ethernet (40GBASE-SR);
* 40 Gbit/sec line speed;
* Transmitter wavelength 850nm;
* Industry-standard MPO connector;
* Multimode Fibre (MMF);
* Digital Optical Monitoring (DOM);
Standards
* GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable;
* GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies;
* GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors;
* IEEE 802.3 ba (-SR4, -LR4);
* IEEE 802.3 ae (-CSR4);
* QSFP+ MSA SFF-8436;
* SFP+ MSA SFF-8431 and -8461;
* RoHS 6;
Safety
* Laser Class 1M per IEC60825-1 and CFR 21Section 1040;
* Cable jacket of QSFP+ copper modules is UL #E116441 Compliant;
Name
QSFP-40G-SR4 - QSFP+
Form Factor
QSFP+
Data Rate (max)
41.2G bps
Fiber Type
Multi-Mode Fiber (MMF)
Connector
MPO/MTP
Hot Swappable
Yes
Application
40 Gigabit Ethernet Compliant
Operating Temperature Range
Commercial 0C to 70C
