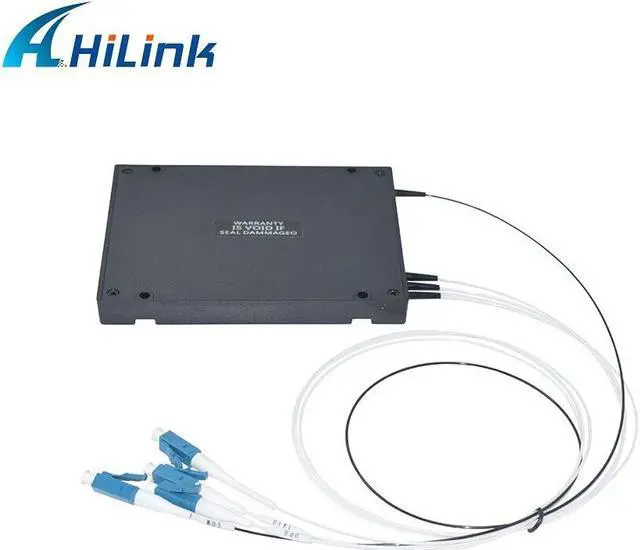

2+1CH single fiber Coarse Wavelength Division Multiplexing Optical Add/Drop Multiplexer (OADM) with UPG port

2+1CH single fiber Coarse Wavelength Division Multiplexing Optical Add/Drop Multiplexer (OADM) with UPG port
tangram: 5557 end
Coarse Wavelength Division Multiplexing Optical Add/Drop Multiplexer (OADM) is designed for multi-wavelength network applications. It is based on the Thin Film Filter (TFF) technology and operates at 20nm channel spacing ITU Grid wavelengths from 1270nm to 1610nm. Gigalight provides a series of customized OADM within plastic ABS box, metal LGX box, or rack mount to meet different requirements on Port Configuration, Operating Wavelength, Package Type, Fiber Type, Fiber Length, Input Connector, Add/Drop Connector, and Output Connector.
1. Features
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Mounted in lastic ABS box, metal LGX box, or rack mount
Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)
Operating Temperature: -20 to +70
High Reliability and Stability
2. Applications
System
PON Networks
CATV Links
WDM Network

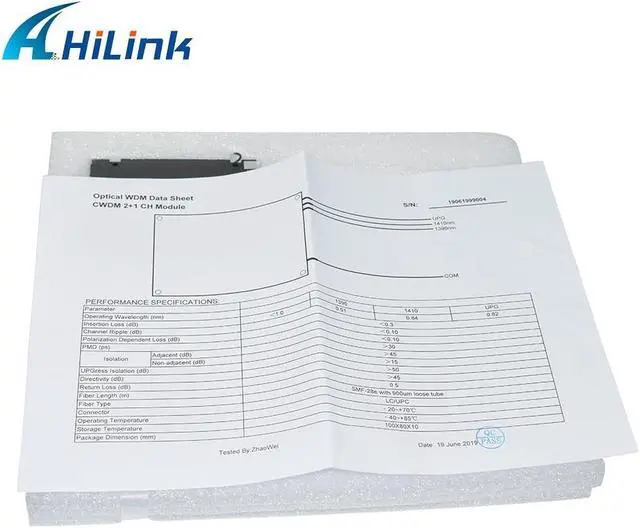

3. Performance

Specifications

Parameters
1x2
1x4
1x8
1x16
Center Wavelength (nm)
ITU, ITU+1
Passband (nm)
ITU 6.5
Operating Wavelength (nm)
1460~1620 or 1260~1620
Channel Space (nm)
20
Fiber Type
SMF-28e or customer specified
IL (dB) (P/A Grade)
0.7 / 1.0
1.4 / 1.7
1.0 / 2.5
1.5 / 3.2
Isolation (dB)
Adjacent Channel
30
Non-Adjacent Channel
50
Ripple (dB)
0.3
0.4
0.5
0.5
PDL (dB)
0.2
PMD (ps)
0.1
RL (dB)
45
Directivity (dB)
50
Maximum Optical Power (mw)
500
Operating Temperature (C)
-40~85
Storage Temperature (C)
-40~85

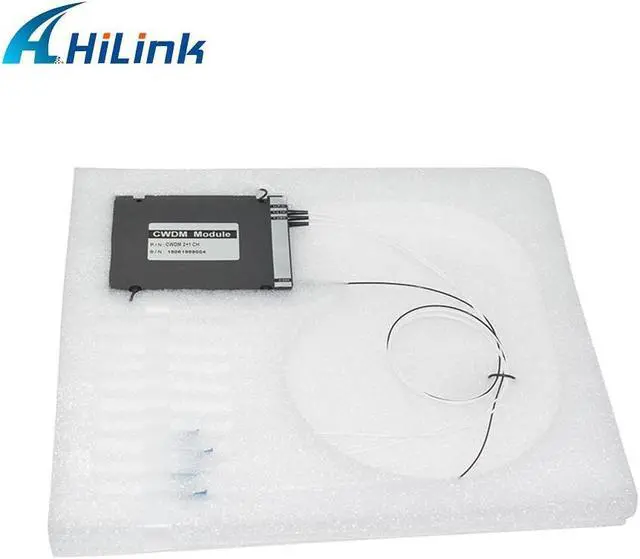

BOX Package (mm)
100*80*10
140*115*18
LGX Package
1U, 2U
19 Rack mount Package
1U
Notes:
1. Specified without connectors.
2. Add an additional 0.2 dB loss per connector.
OEM and ODM
OEM/ODM order is available
