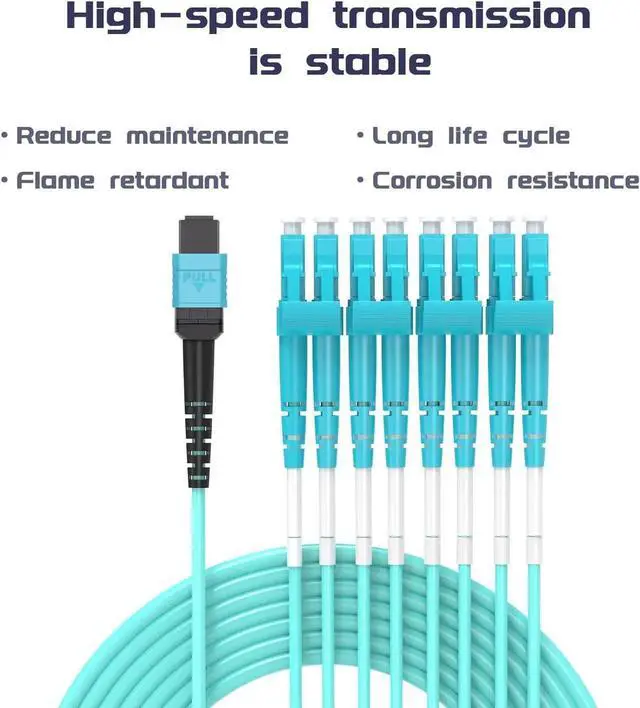

6 Meters OM4 8 Cores MPO-LC Connector Optical Fiber Patch Cord 50/125 Multimode Fan-Out Jumper Female to Female Type B 40G/100G 19.6ft Aqua
Limited time offer, ends 01/25 By EnYZME

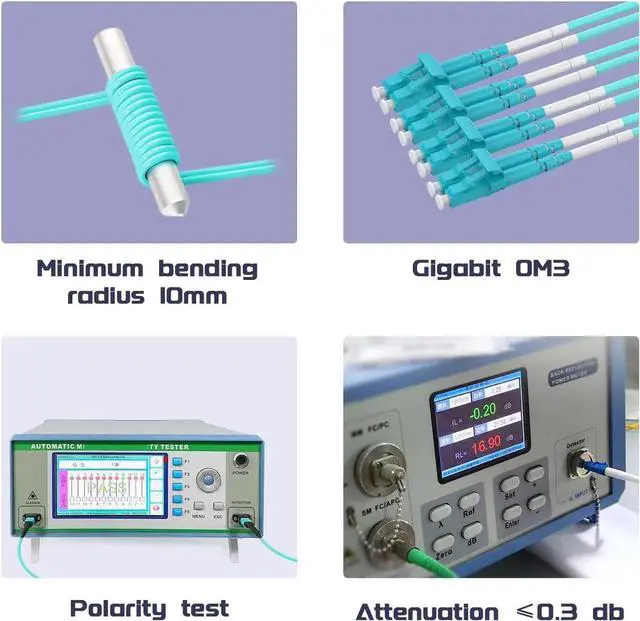

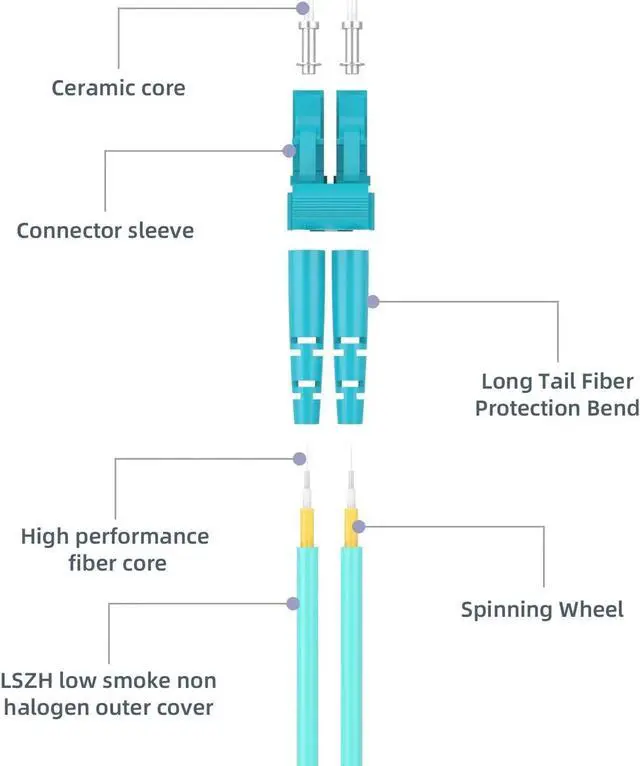

- Ceramic ferrule is a specialized ceramic component made of nano-zirconia material, processed with high precision grinding for high hardness and brittleness. It ensures signal integrity with high return loss 50dB and low insertion loss 0.3dB, providing precise alignment and minimal attenuation.

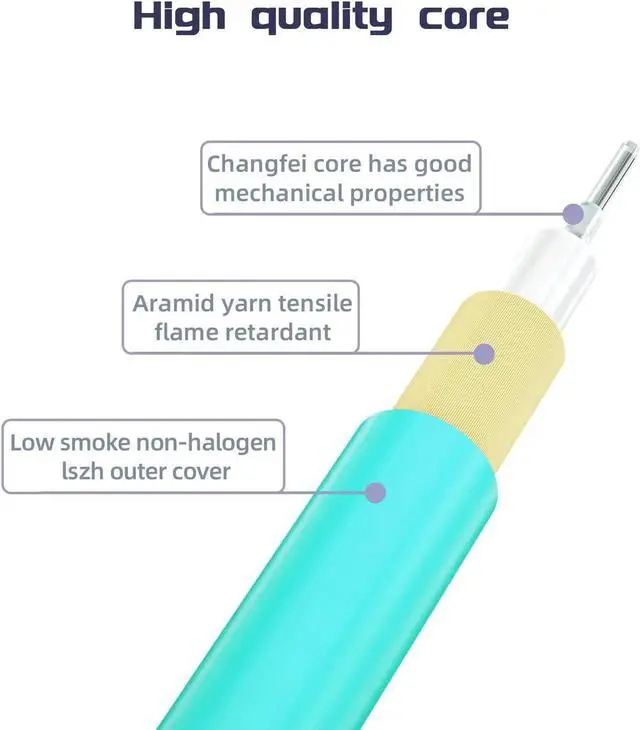

- The optical fiber patch cord is made of Low Smoke Zero Halogen (LSZH) material, with a minimum bending radius of 5.5mm - suitable for high-rated 50/125m optical fibers and coatings, insensitive to bending, easy to strip, and weld, ensuring minimal optical loss and stable transmission.
- OM4 utilizes optimized VCSEL light sources, supporting higher-density connections, making it the preferred choice in high-speed data transmission environments. With a broadband of 4700MHz.km, OM4 multimode fiber achieves 10Gbps within 500 meters. It offers faster and more precise transmission compared to OM3.
- OM4 fiber patch cords can operate within a temperature range of -20ºC to +122ºC. Due t
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Ceramic ferrule is a specialized ceramic component made of nano-zirconia material, processed with high precision grinding for high hardness and brittleness. It ensures signal integrity with high return loss 50dB and low insertion loss 0.3dB, providing precise alignment and minimal attenuation.
- The optical fiber patch cord is made of Low Smoke Zero Halogen (LSZH) material, with a minimum bending radius of 5.5mm - suitable for high-rated 50/125m optical fibers and coatings, insensitive to bending, easy to strip, and weld, ensuring minimal optical loss and stable transmission.
- OM4 utilizes optimized VCSEL light sources, supporting higher-density connections, making it the preferred choice in high-speed data transmission environments. With a broadband of 4700MHz.km, OM4 multimode fiber achieves 10Gbps within 500 meters. It offers faster and more precise transmission compared to OM3.
- OM4 fiber patch cords can operate within a temperature range of -20ºC to +122ºC. Due t
