6COM is one of the leading suppliers of cost-optimized network solutions for the enterprise, access, datacenter and metropolitan fiber optical market as well as home networks.
We design, manufacture and sell Transceiver, DAC&AOC, Converter, NIC, SAS Cable and Fiber Optical Cable to make IT connectivity easy and cost-effective.
One Stop Shop for Data center
Make Your Network Stable

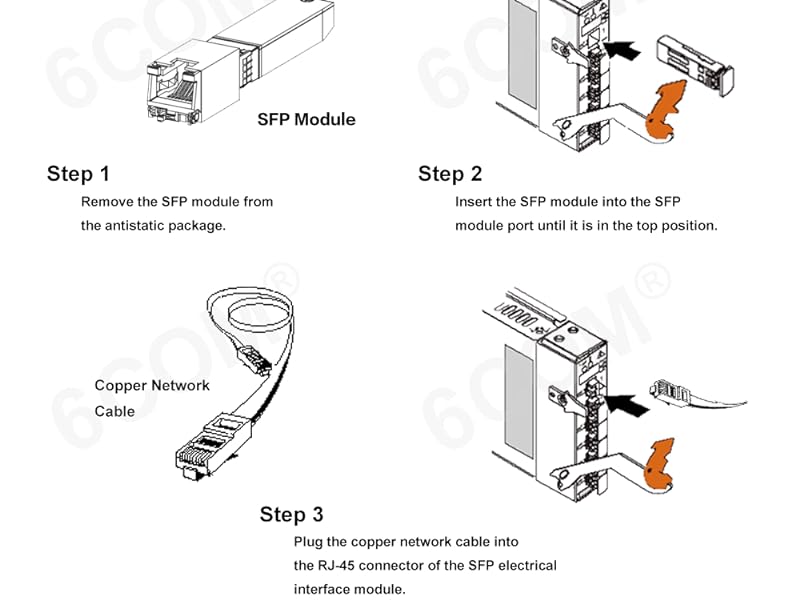

How to Install SFP Module
Step 1 : Remove the SFP module from the antistatic pakage.
Step 2 : Insert the SFP module into the SFP module port untill it is in the top position.
Step 3 : Plug the copper network cable into the RJ45 connector of the SFP electrical interfacr modules.

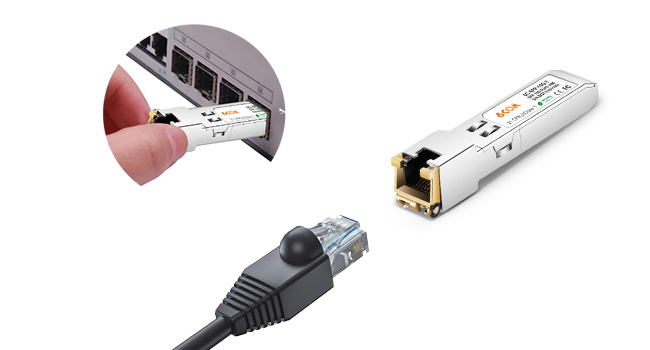

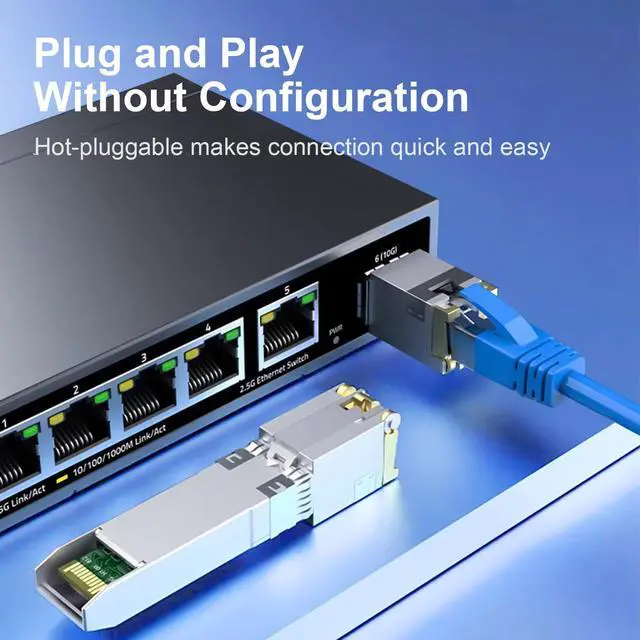

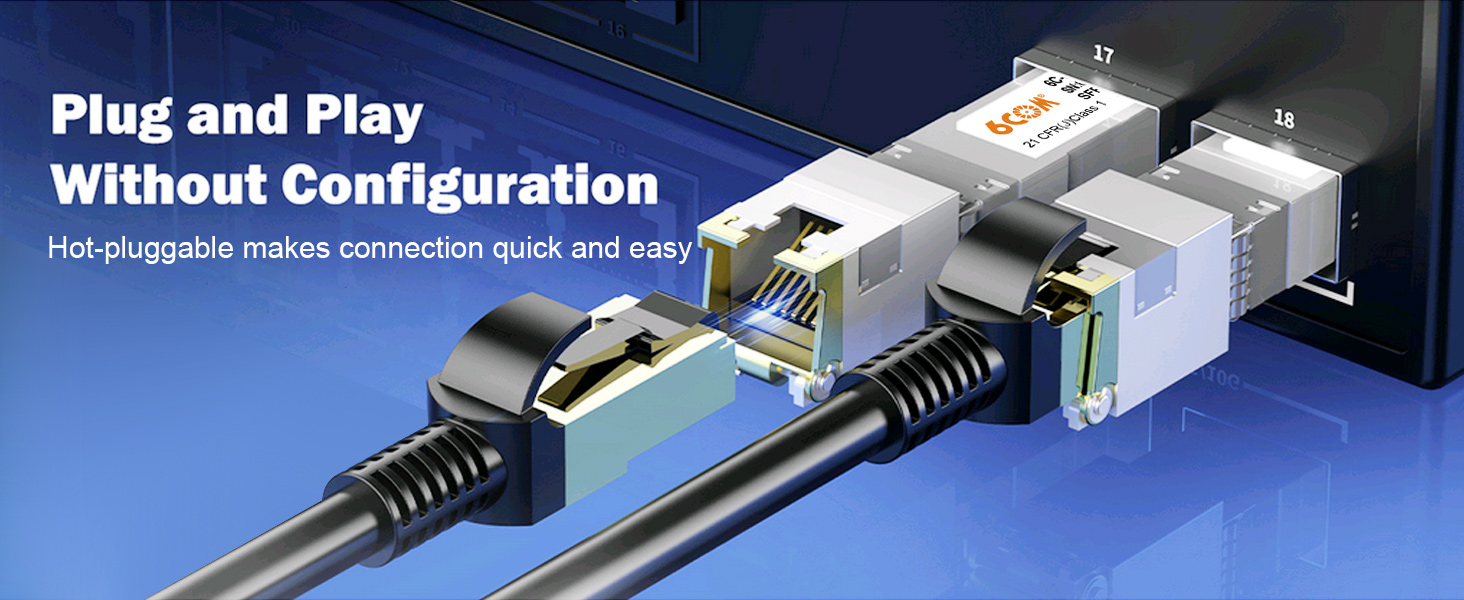

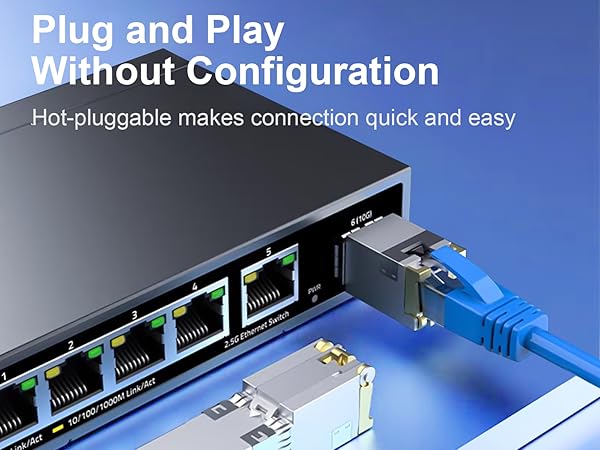

Plug and Play
- Plug and play, without Configuration.Hot-pluggable makes connection quick and easy
- Rotate the ring latch down at 90 degree angle to unlock, then insert it to the port or pull transceiver out from switch.

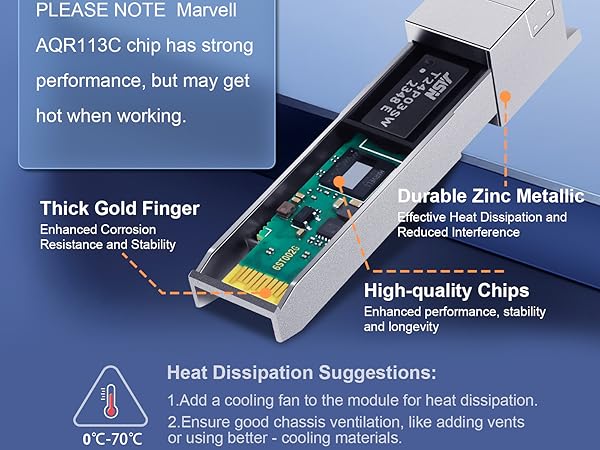

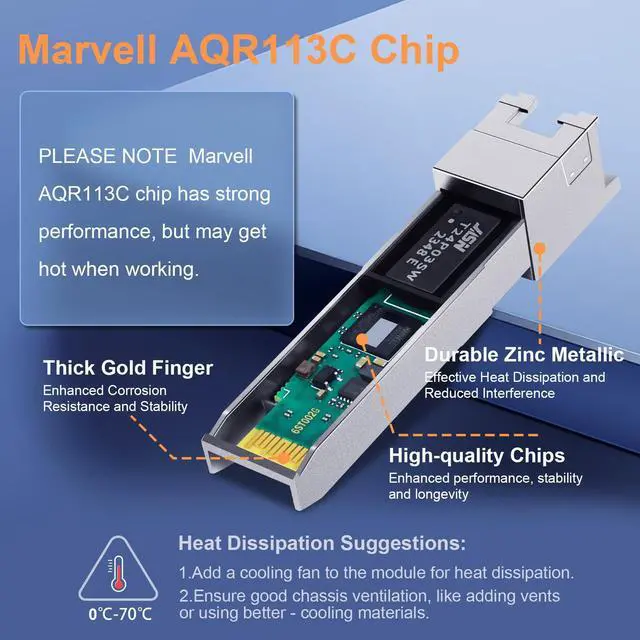

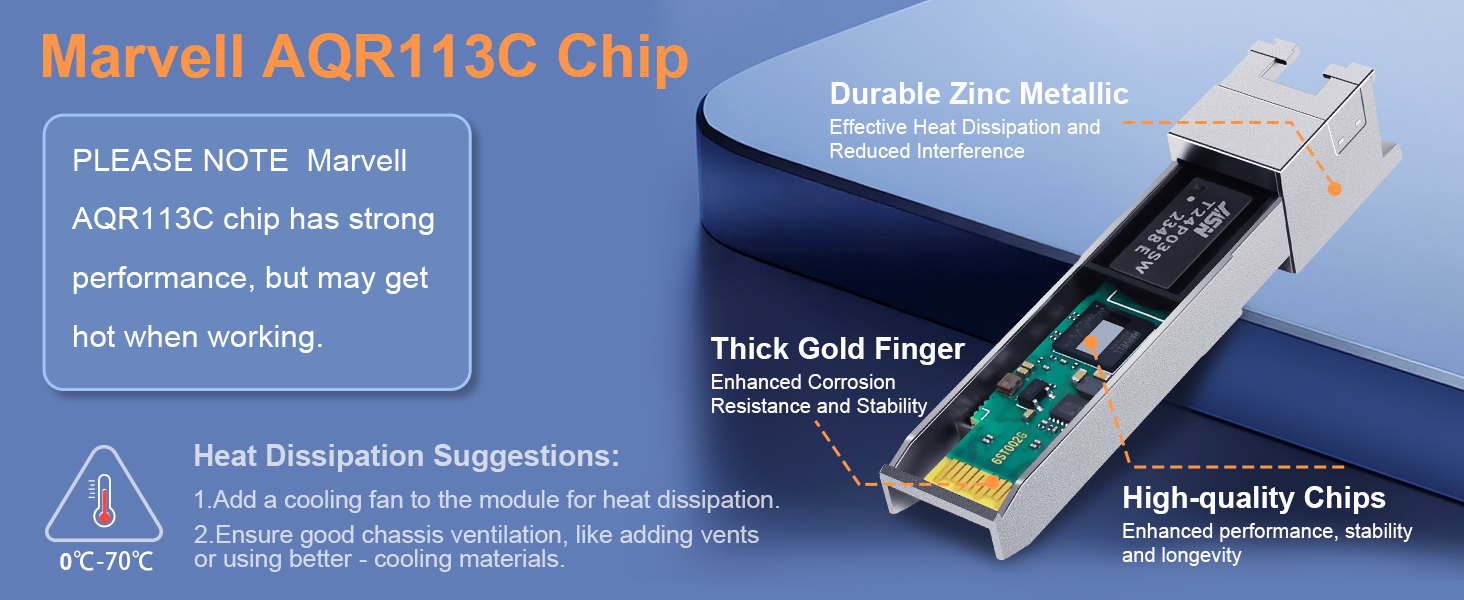

High Quality Material

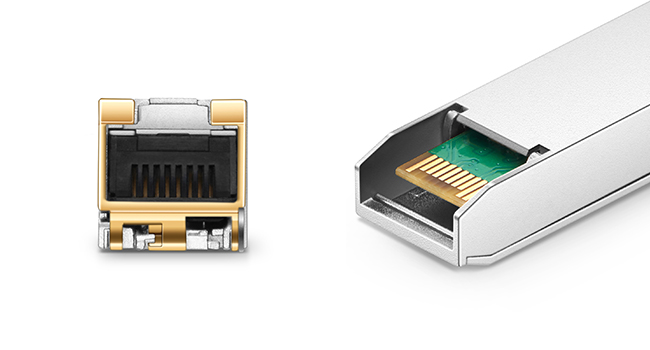

- Durable Zinc Metallic: Effective heat dissipation and reduced interference
- Thick Gold Finger: Enhanced corrosion resistance and stability

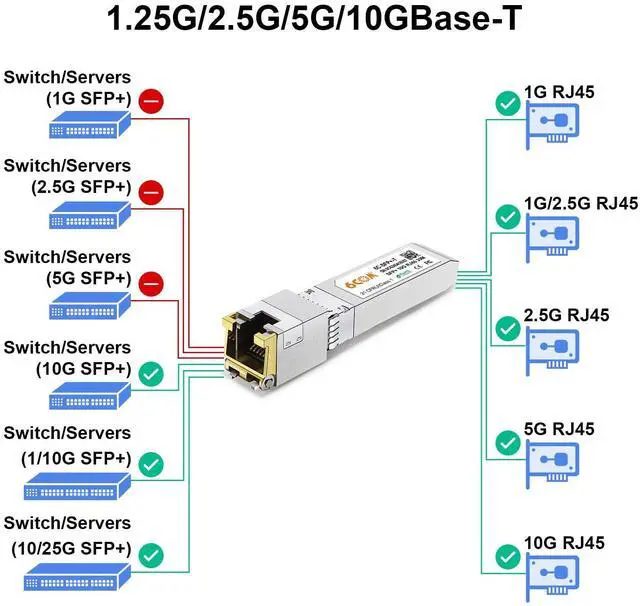

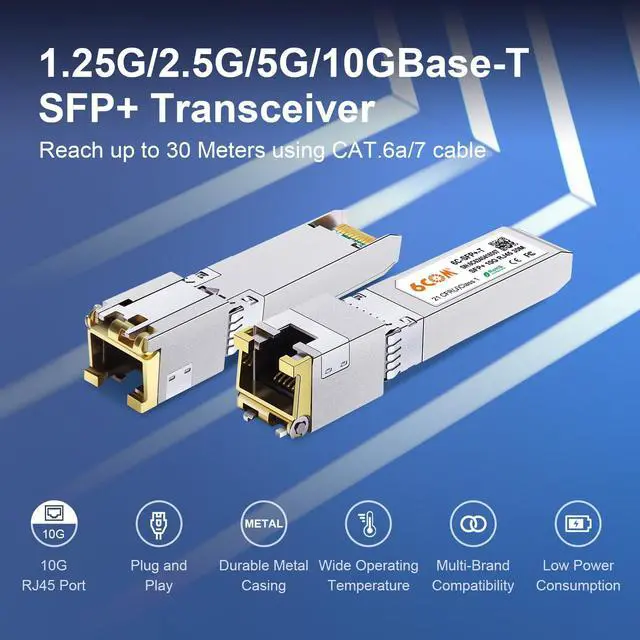

Choose the 1G/10G SFP Module According to Your Needs
 1.25/2.5/5/10GBase-T |  10GBase-T |  10GBase-LR |  10GBase-T-SR |  1000Base-T |  1000Base-SX |  1000Base-LX | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Data Rate | 1.25G/2.5G/5G/10G | 10G | 10G | 10G | 1.25G | 1.25G | 1.25G |
Connecter | RJ45 | RJ45 | Dual LC | Dual LC | RJ45 | Dual LC | Dual LC |
Fiber Type | CAT.6a/CAT.7 | CAT.6a/CAT.7 | OS2 | OM3/OM4 | CAT.5e | OM1/OM2/OM3/OM4 | OS1/OS2/OS3 |
Wavelength(nm) | - | - | 1310 | 850 | - | 850 | 1310 |
Distance | 30m | 30m | 10km | 300m | 100m | 550 m | 20 km |
Optical Source | - | - | DFB/PIN | VCSEL/PIN | - | PF/PIN | FP/PIN |
Tx(dBm) | - | - | -8.2~-0.5 | -6.5~-1 | - | -8~-4 | -9~-3 |
Rx(dBm) | - | - | -14.4 | -11.1 | - | -18 | -22 |
Temp(?) | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 |
Professional Manufacturer
Providing high reliability and cost-effective interconnect solution for data centers and operator with optical modules and Cables (1G/10G/40G/100G)
Focus on Optical Module R&D
Devoting to providing customers with best shopping experience, best product installation performance with a perfect compatibility and superior quality
GR468 Reliability Test
All modules will be verified by temperature cycling, mechanical vibration, accelerated aging, damp heat test, to ensure the performance and stability
Worldwide Sales
We offers products and services worldwide, cooperating with partners over 150+ countries in 6 continents via unique B2B/B2C e-business platform
How to Install SFP Module
Step 1 : Remove the SFP module from the antistatic pakage.
Step 2 : Insert the SFP module into the SFP module port untill it is in the top position.
Step 3 : Plug the copper network cable into the RJ45 connector of the SFP electrical interfacr modules.
Plug and Play
- Plug and play, without Configuration.Hot-pluggable makes connection quick and easy
- Rotate the ring latch down at 90 degree angle to unlock, then insert it to the port or pull transceiver out from switch.
High Quality Material
- Durable Zinc Metallic: Effective heat dissipation and reduced interference
- Thick Gold Finger: Enhanced corrosion resistance and stability
Choose the 1G/10G SFP Module According to Your Needs
1.25/2.5/5/10GBase-T |  10GBase-T |  10GBase-LR | 10GBase-T-SR |  1000Base-T |  1000Base-SX |  1000Base-LX |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Data Rate | ||||||
| 1.25G/2.5G/5G/10G | 10G | 10G | 10G | 1.25G | 1.25G | 1.25G |
| Connecter | ||||||
| RJ45 | RJ45 | Dual LC | Dual LC | RJ45 | Dual LC | Dual LC |
| Fiber Type | ||||||
| CAT.6a/CAT.7 | CAT.6a/CAT.7 | OS2 | OM3/OM4 | CAT.5e | OM1/OM2/OM3/OM4 | OS1/OS2/OS3 |
| Wavelength(nm) | ||||||
| - | - | 1310 | 850 | - | 850 | 1310 |
| Distance | ||||||
| 30m | 30m | 10km | 300m | 100m | 550 m | 20 km |
| Optical Source | ||||||
| - | - | DFB/PIN | VCSEL/PIN | - | PF/PIN | FP/PIN |
| Tx(dBm) | ||||||
| - | - | -8.2~-0.5 | -6.5~-1 | - | -8~-4 | -9~-3 |
| Rx(dBm) | ||||||
| - | - | -14.4 | -11.1 | - | -18 | -22 |
| Temp(?) | ||||||
| 0~70 | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 |
Professional Manufacturer
Providing high reliability and cost-effective interconnect solution for data centers and operator with optical modules and Cables (1G/10G/40G/100G)
Focus on Optical Module R&D
Devoting to providing customers with best shopping experience, best product installation performance with a perfect compatibility and superior quality
GR468 Reliability Test
All modules will be verified by temperature cycling, mechanical vibration, accelerated aging, damp heat test, to ensure the performance and stability
Worldwide Sales
We offers products and services worldwide, cooperating with partners over 150+ countries in 6 continents via unique B2B/B2C e-business platform
6COM is one of the leading suppliers of cost-optimized network solutions for the enterprise, access, datacenter and metropolitan fiber optical market as well as home networks.
We design, manufacture and sell Transceiver, DAC&AOC, Converter, NIC, SAS Cable and Fiber Optical Cable to make IT connectivity easy and cost-effective.
One Stop Shop for Data center
Make Your Network Stable
